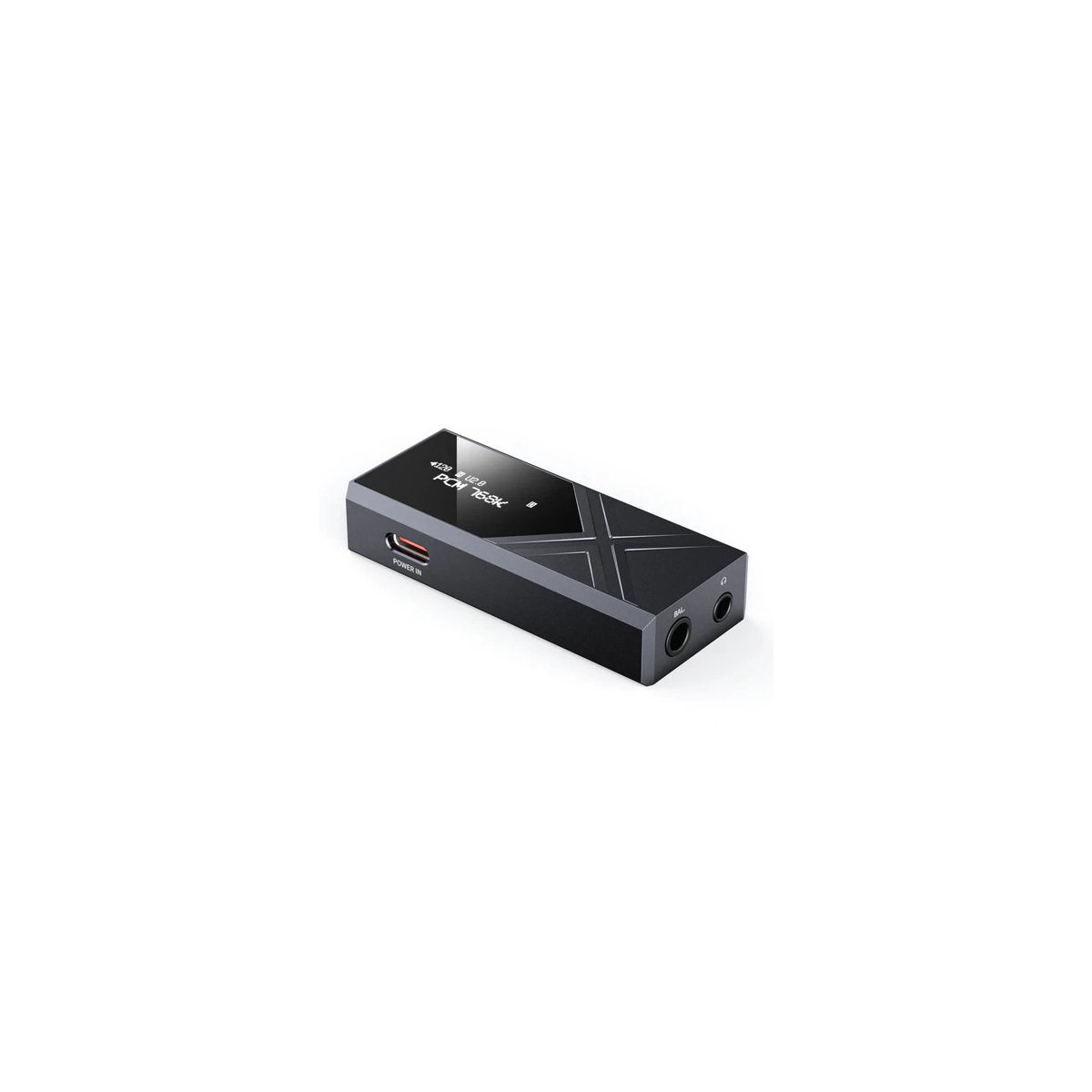

FiiO KA17: High-Performance Portable DAC/AMP Overview
Flagship ESS Sabre ES9069Q Dual DAC Chipset
- Features ESS ES9069Q dual DAC with HyperStream 32-bit processing for lower power consumption and reduced digital noise.
- Offers 130dB dynamic range (DNR) and 120dB THD+N, ensuring clear, high-quality audio performance.
- Supports hardware and TDM modes with a low output resistance of 39 ohms.
THX AAA 78+ Headphone Amplifier
- Equipped with the advanced THX AAA 78+ headphone amplifier in a 4-channel fully balanced configuration.
- Features eight op-amps, providing powerful, clean audio with excellent sound accuracy for both IEMs and headphones.
16-Core XMOS XU316 Chipset
- Integrates the 16-core XMOS XU316 for superior USB audio transmission.
- Supports up to 768kHz/32bit, native DSD512, and MQA full decoding, ensuring low latency and stable signal transmission.
- Enhances compatibility across various digital audio sources.
Customizable PEQ Adjustment
- Offers a ten-level PEQ adjustment for tailored sound control, allowing you to fine-tune frequency, gain, and bandwidth.
- Supports adjustments for audio formats up to PCM 192kHz/24bit.
Multistage Audio Circuit

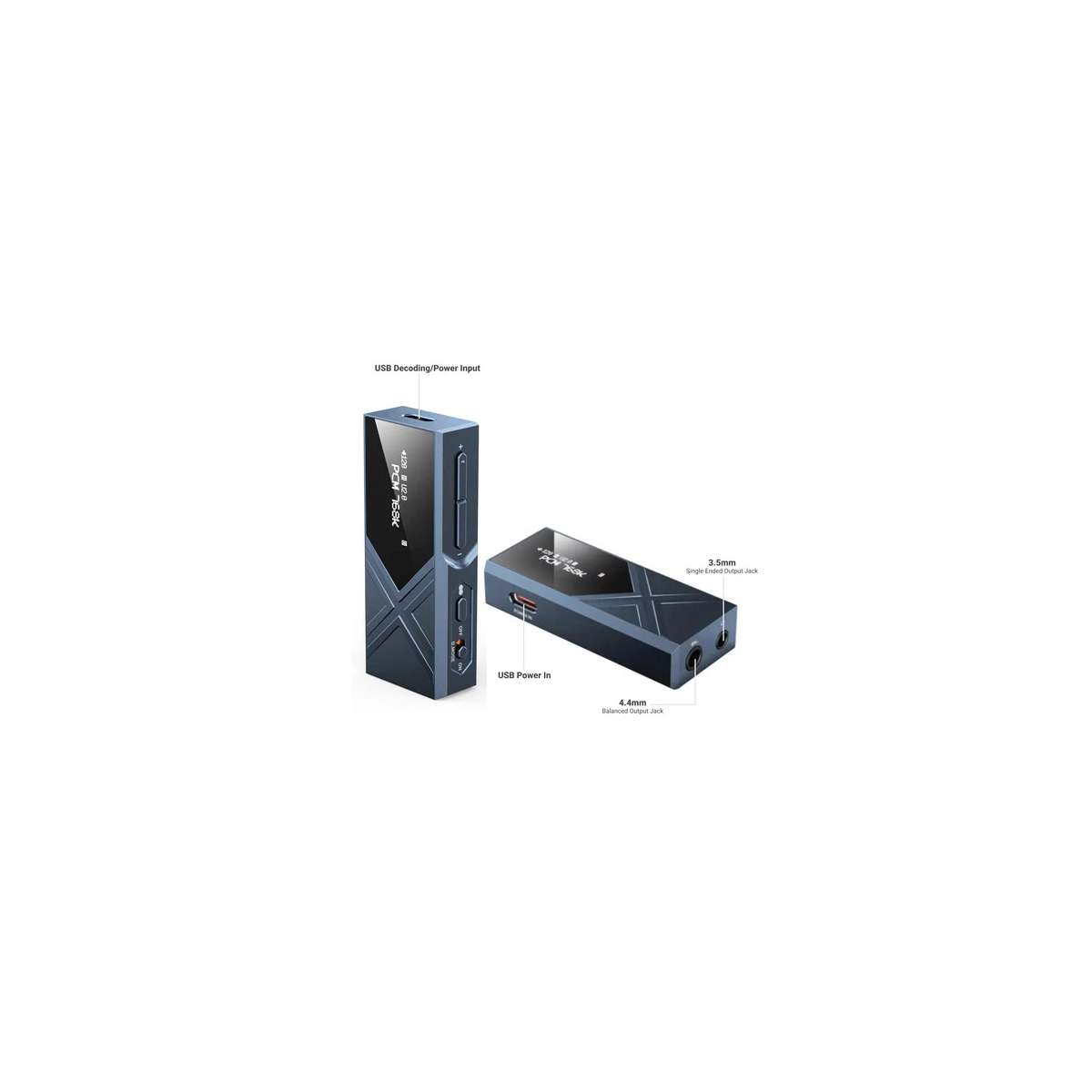

- Includes a 4.4mm balanced output and a multistage audio circuit for high-fidelity sound reproduction.
- Separate digital and analog boards with shielding to minimize interference and maintain audio signal integrity.
Robust 10-Rail Power Supply
- Features a three-stage power filtration, DC-DC conversion, and LDO voltage stabilization for optimal sound performance.
- Ten smaller power rails ensure desktop-level audio quality in a compact design.
USB Type-C and SPDIF Output
- Dual USB Type-C ports for device connectivity and external power supply, ensuring high performance without battery drain.
- SPDIF output via the 3.5mm headphone jack allows connection to external DACs for enhanced audio fidelity.
Desktop Mode and UAC1.0 Support
- Desktop mode increases power output for optimal DAC and amplifier performance.
- Supports UAC1.0 driver-free mode for plug-and-play use with gaming devices.
- Compatible with the FiiO Control App for Android, offering full customization and control of settings.
The FiiO KA17 delivers flagship-level performance in a compact form, offering dual DACs, advanced amplification, customizable sound, and versatile connectivity options. It’s ideal for audiophiles seeking high-fidelity audio on the go.
