آمپلی‌فایر DAC/AMP شانلینگ مدل H5 برند Shanling

Shanling H5: High-Performance Portable DAC/AMP Overview

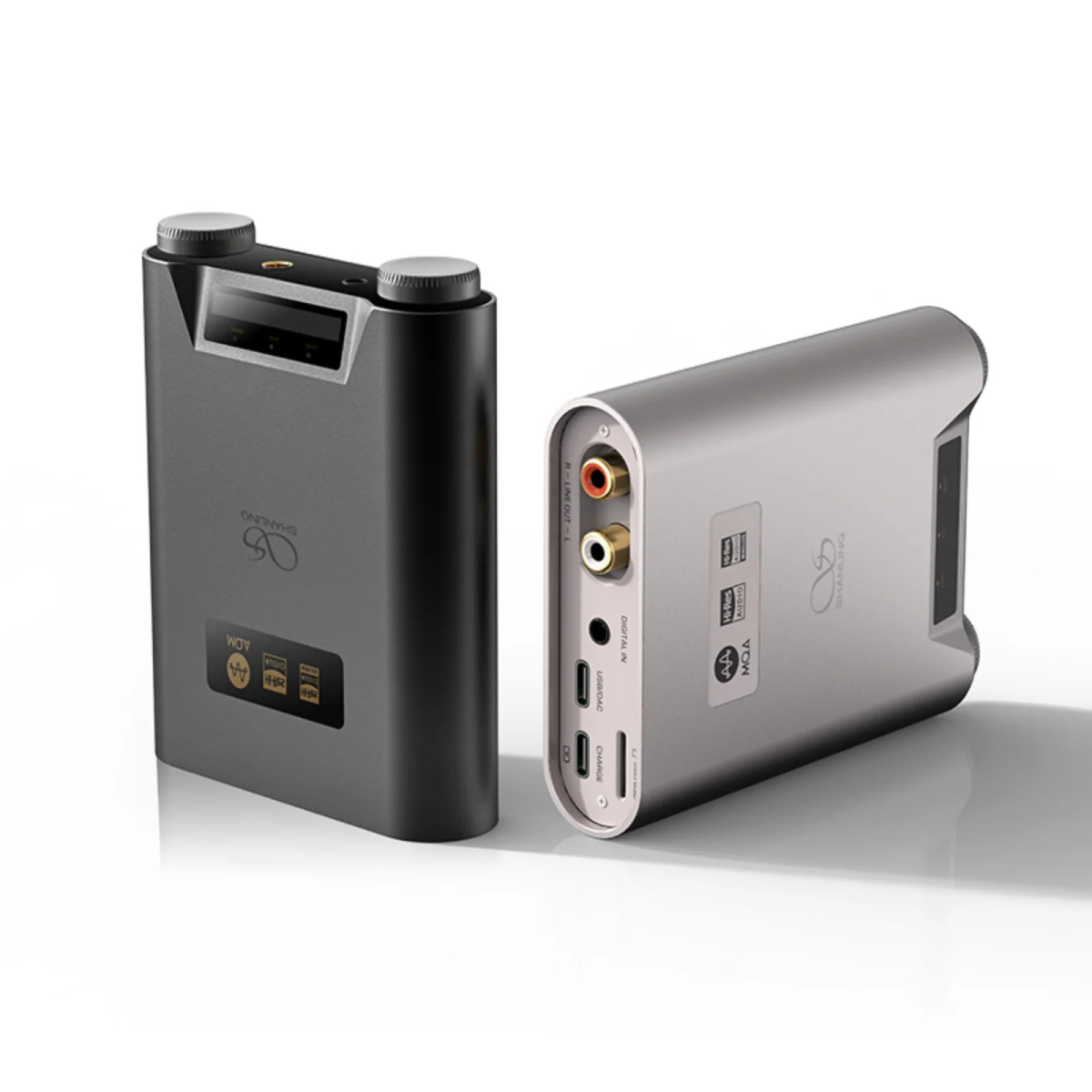

Durable, Lightweight Design

• The H5 features a case made of aircraft-grade magnesium-aluminum alloy, weighing just 270.4g for a smooth, balanced grip.
• Supports high-resolution audio up to 768kHz/32bit and expandable storage with memory cards up to 2TB.

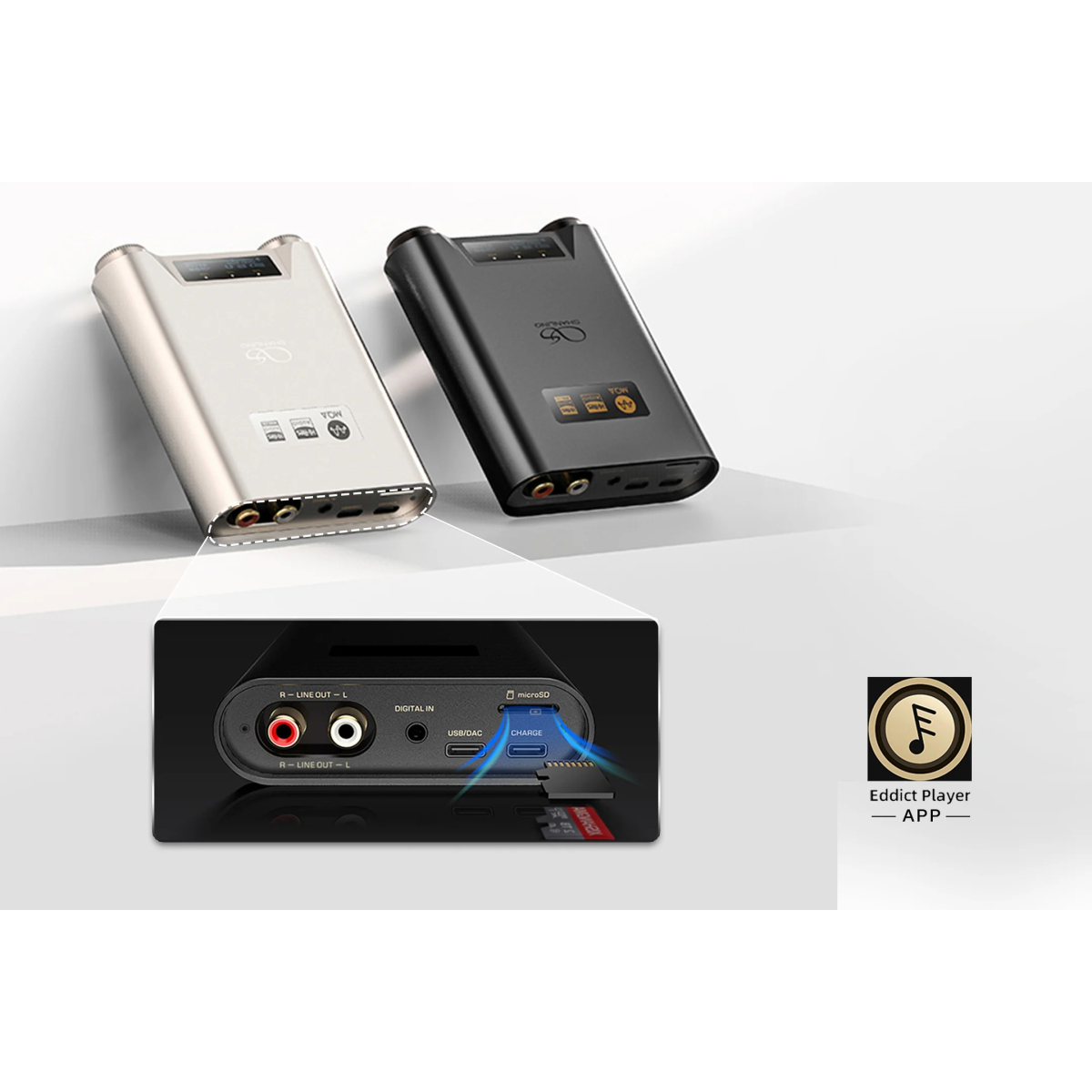

• Can be controlled via Shanling’s Eddict Player app for added convenience.

High-Performance DAC Chips

• Equipped with dual AKM AK4493EQ DAC chips, offering an impressive SNR >121dB and 0.0004% THD+N, ensuring pristine sound quality.

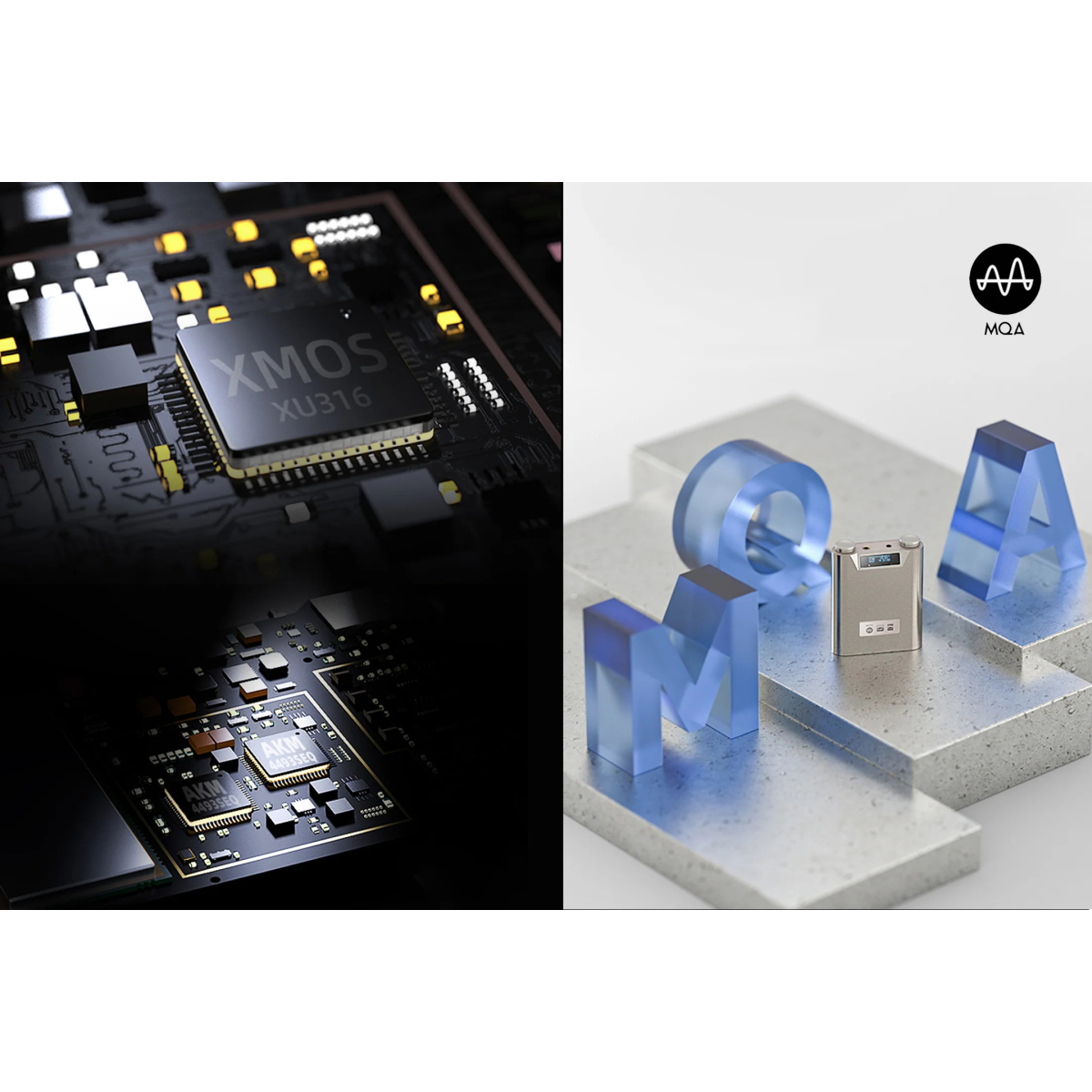

• Features third-gen USB decoding chip XU316, supporting DSD512 decoding and MQA Full Decoder for high-resolution audio playback.

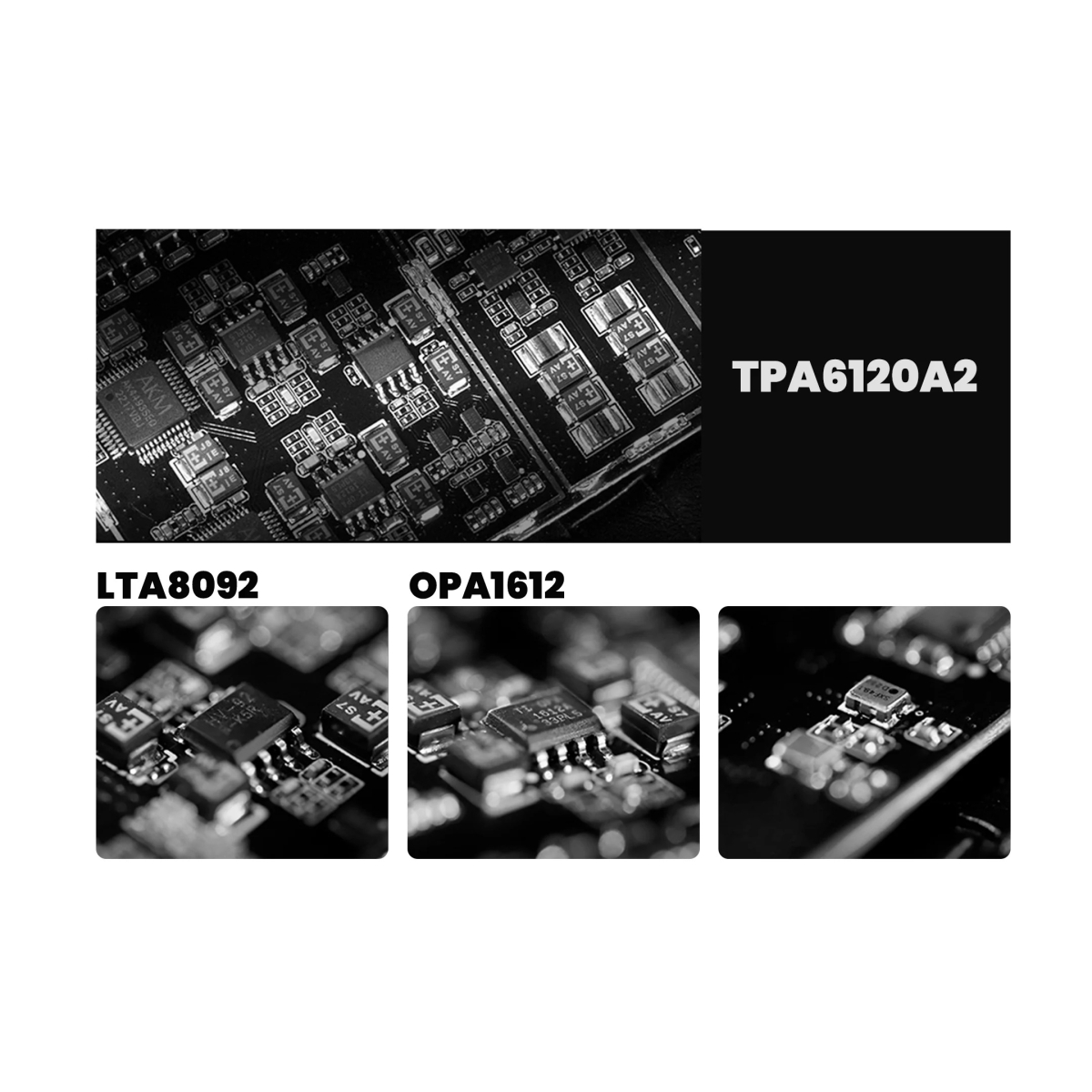

Advanced Op-Amp Audio Architecture

• Uses TI TPA6120A2 op-amps for smooth sound and a wider soundstage, combined with OPA1612 op-amps for superior sound shaping.
• Includes third-gen FPGA technology and KDS femtosecond low-phase noise oscillator, improving signal accuracy and reducing jitter during transmission.

Multi-Device Support and Long Battery Life

• Equipped with Bluetooth 5.0, supporting LDAC, SBC, and AAC codecs for stable, low-latency audio transmission.
• Compatible with various devices like tablets, PS5, Switch, CD players, and bookshelf audio systems.
• Features a 3500mAh battery with QC3.0 18W fast charging and an exclusive PMU chip for efficient power management.

High Power Output and Gain Compensation

• Includes both 3.5mm single-ended and 4.4mm balanced headphone jacks.
• Offers three-step gain compensation for low, medium, and high frequencies.
• Delivers up to 227mW@32Ω single-ended output and 840mW@32Ω balanced output, providing robust power for various headphones.

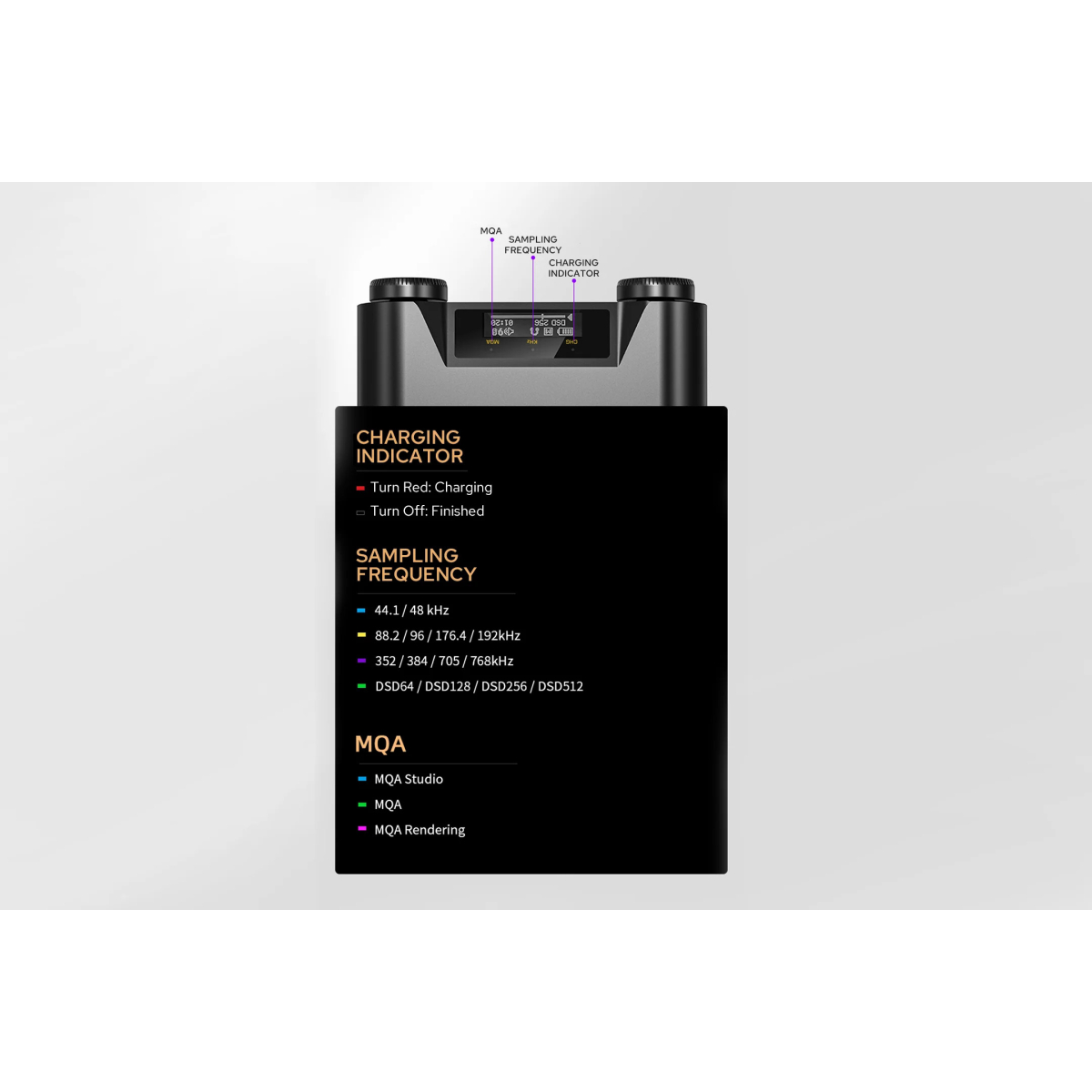

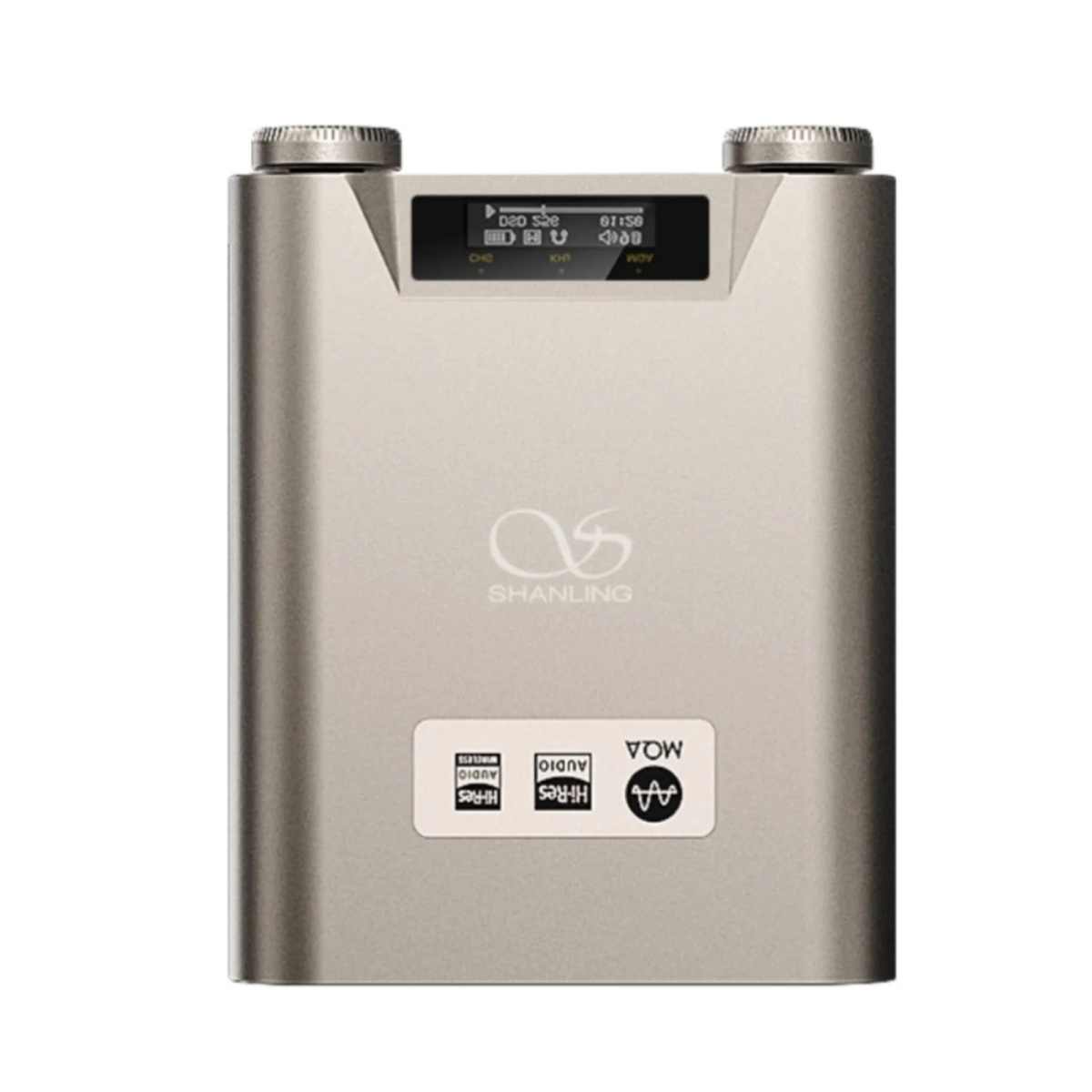

Color-Coded Sampling Rate Indicators

• Features colorful indicator lights that change based on the audio sampling rate, making it easy to identify the current mode.

The Shanling H5 combines a durable yet lightweight design with high-performance DACs, advanced op-amp architecture, and versatile device support. Offering high power output, gain control, and long battery life, it's a premium choice for audiophiles seeking portable, high-fidelity audio.
