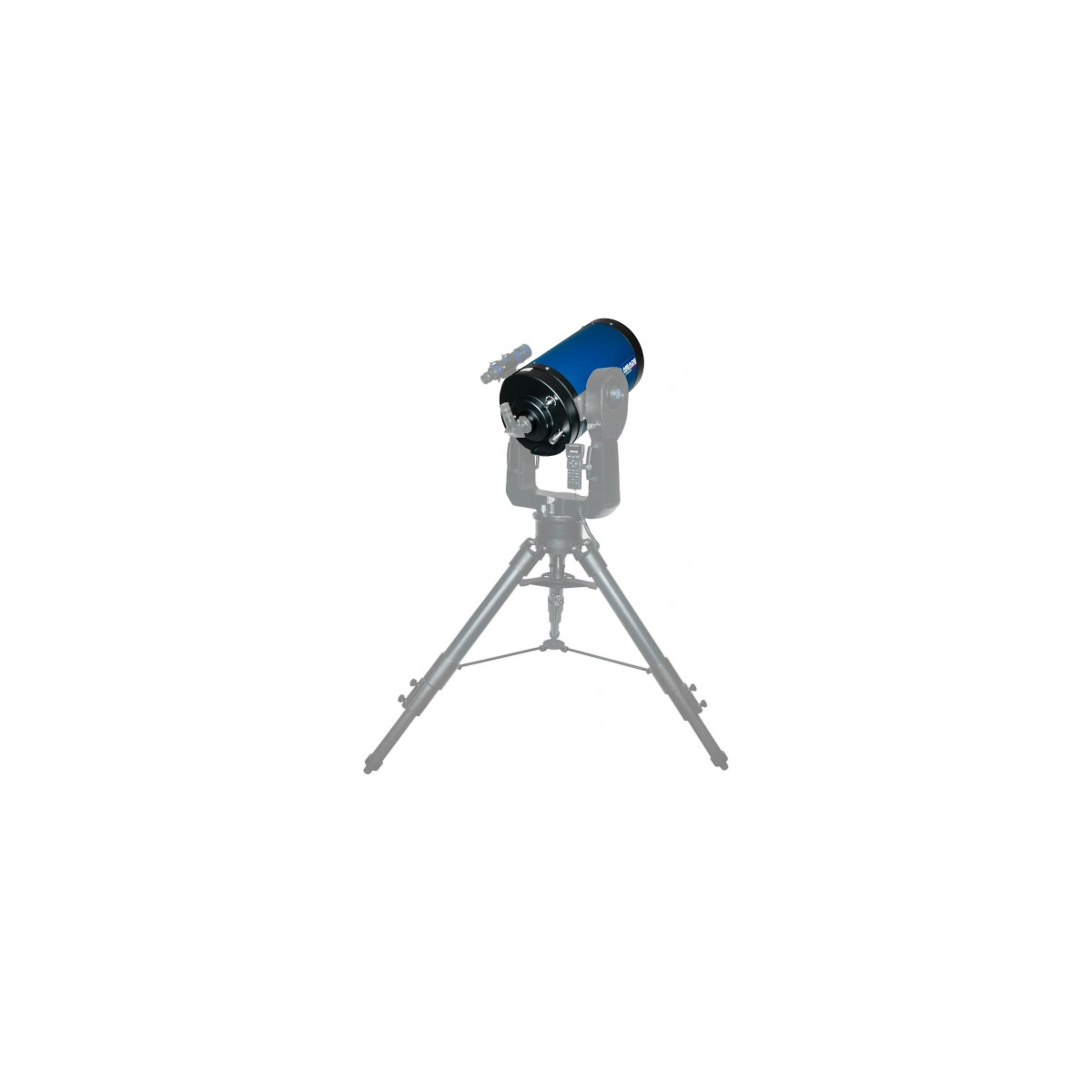

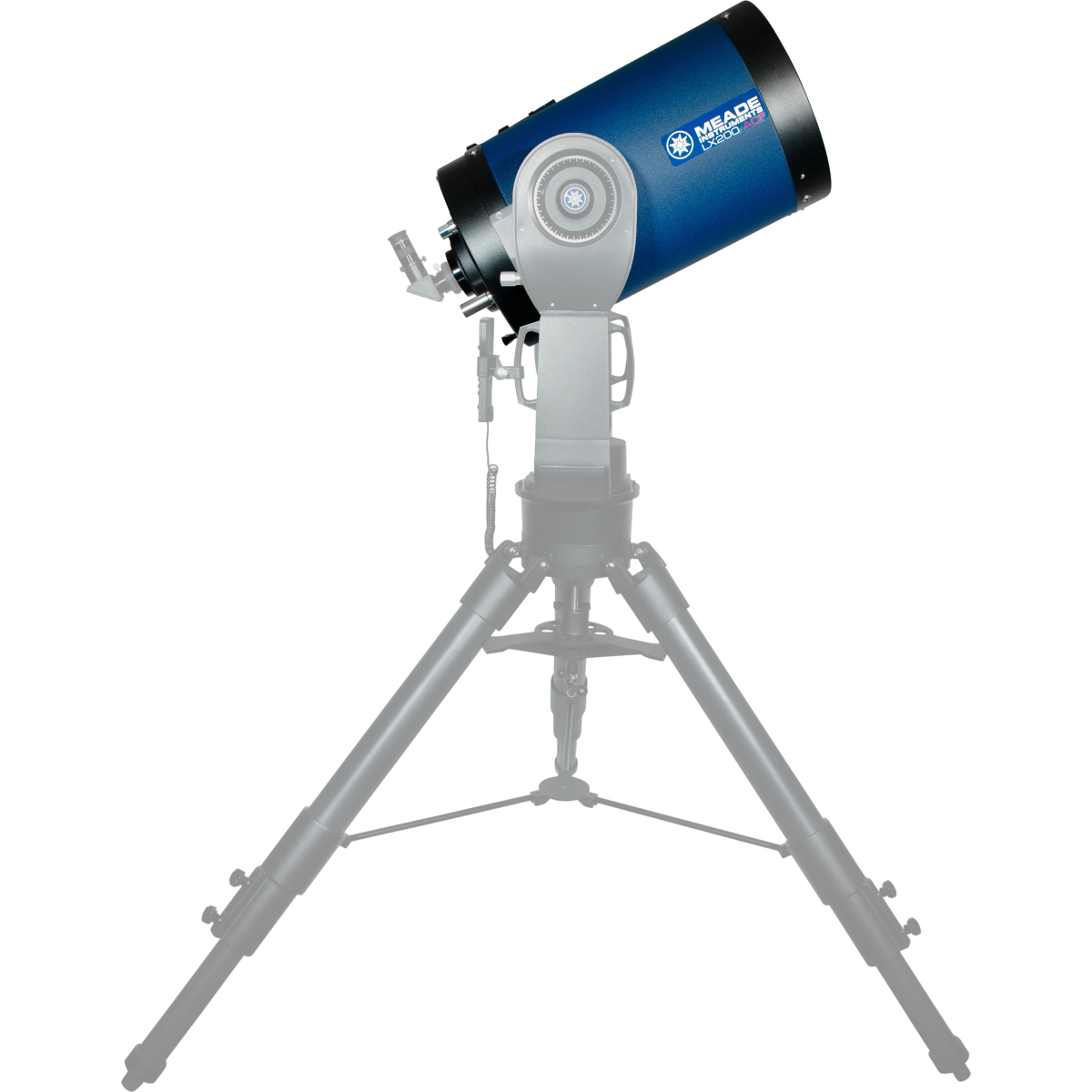

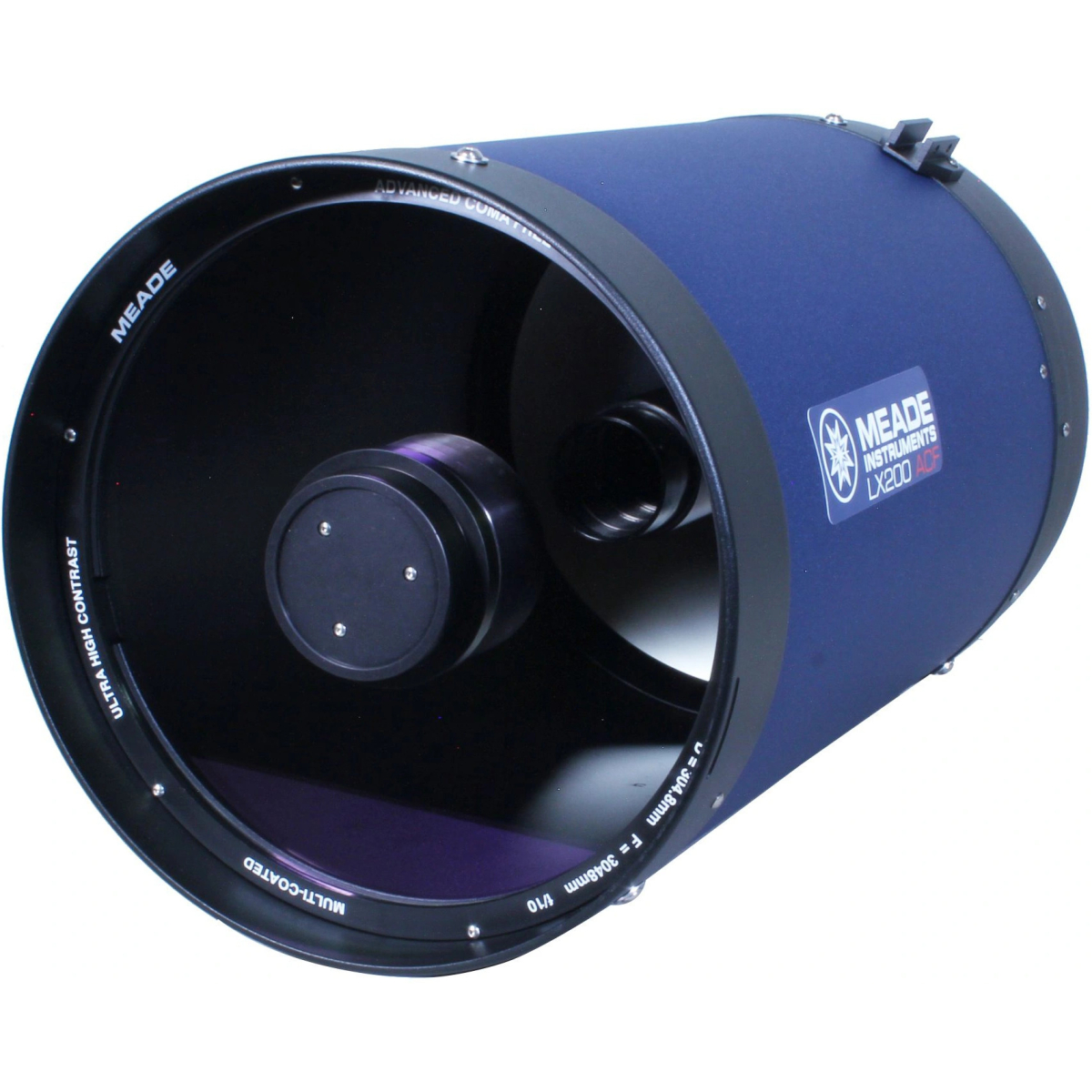

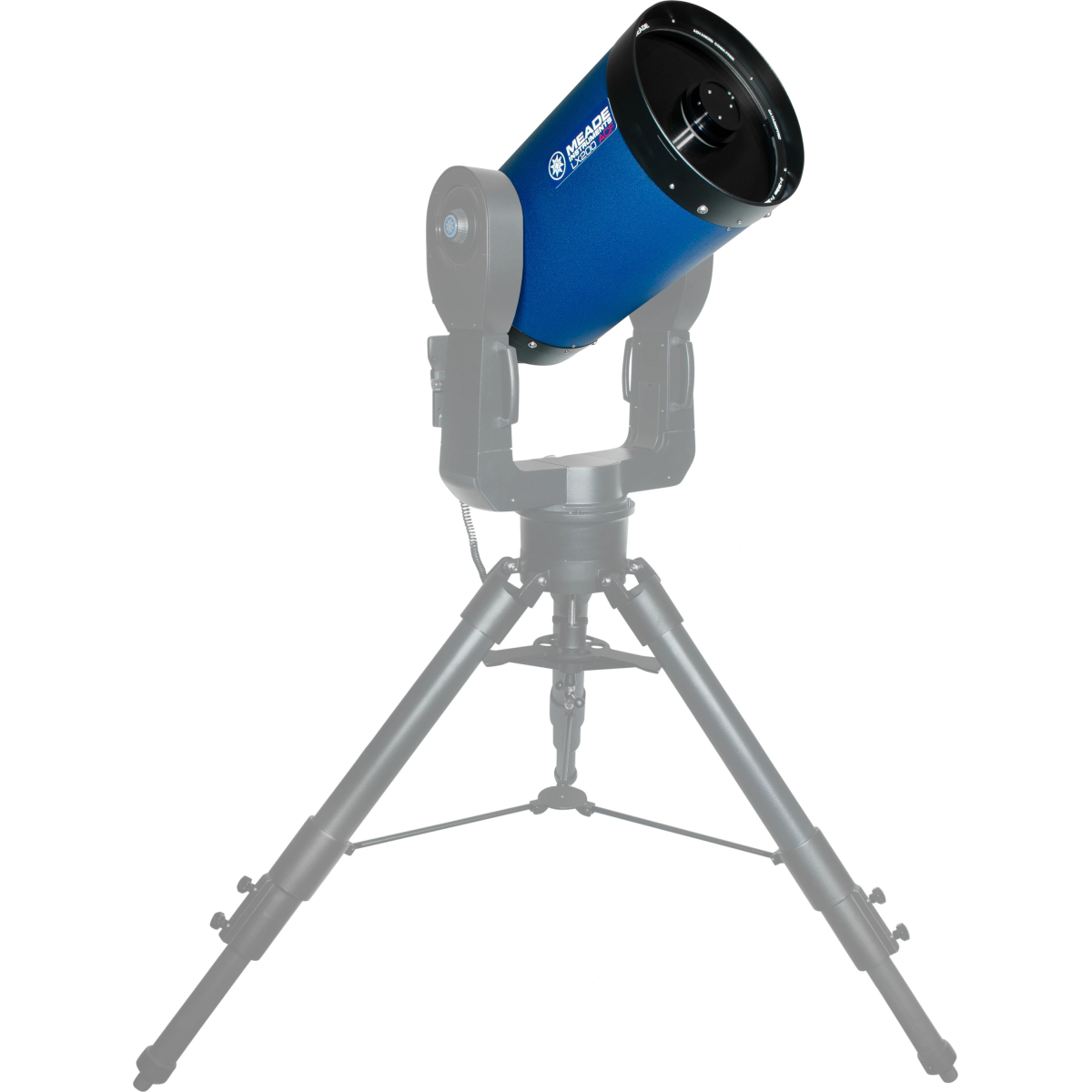

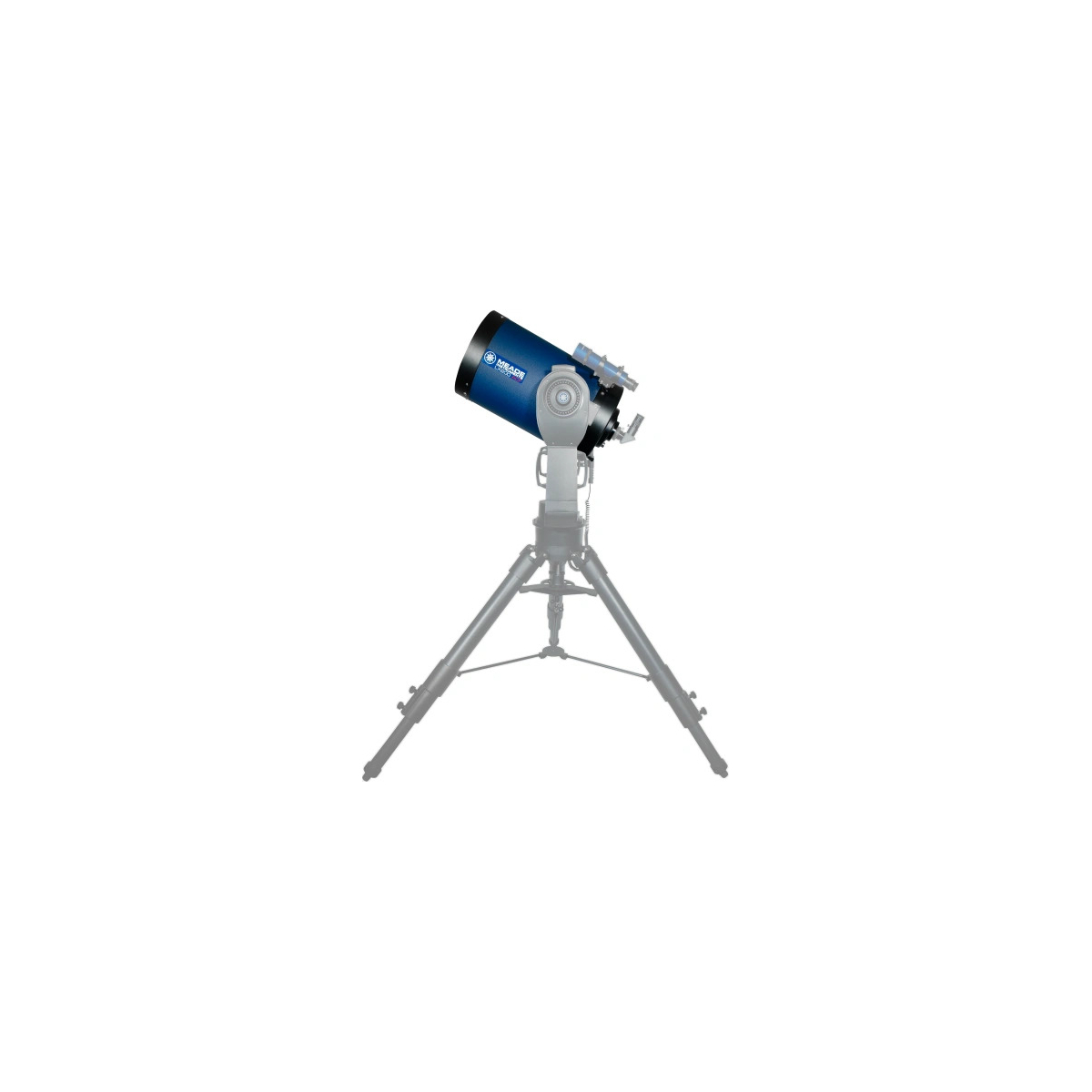

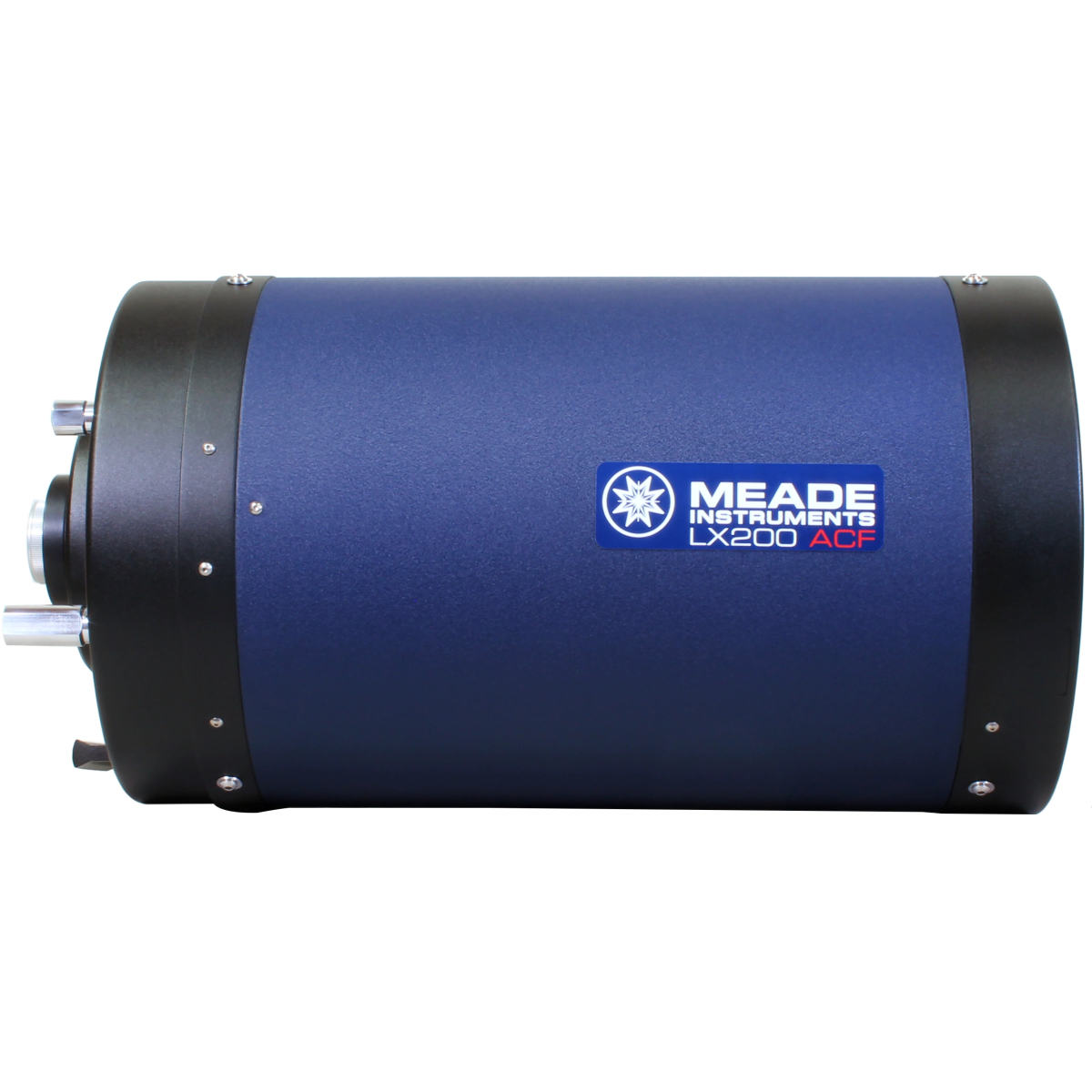

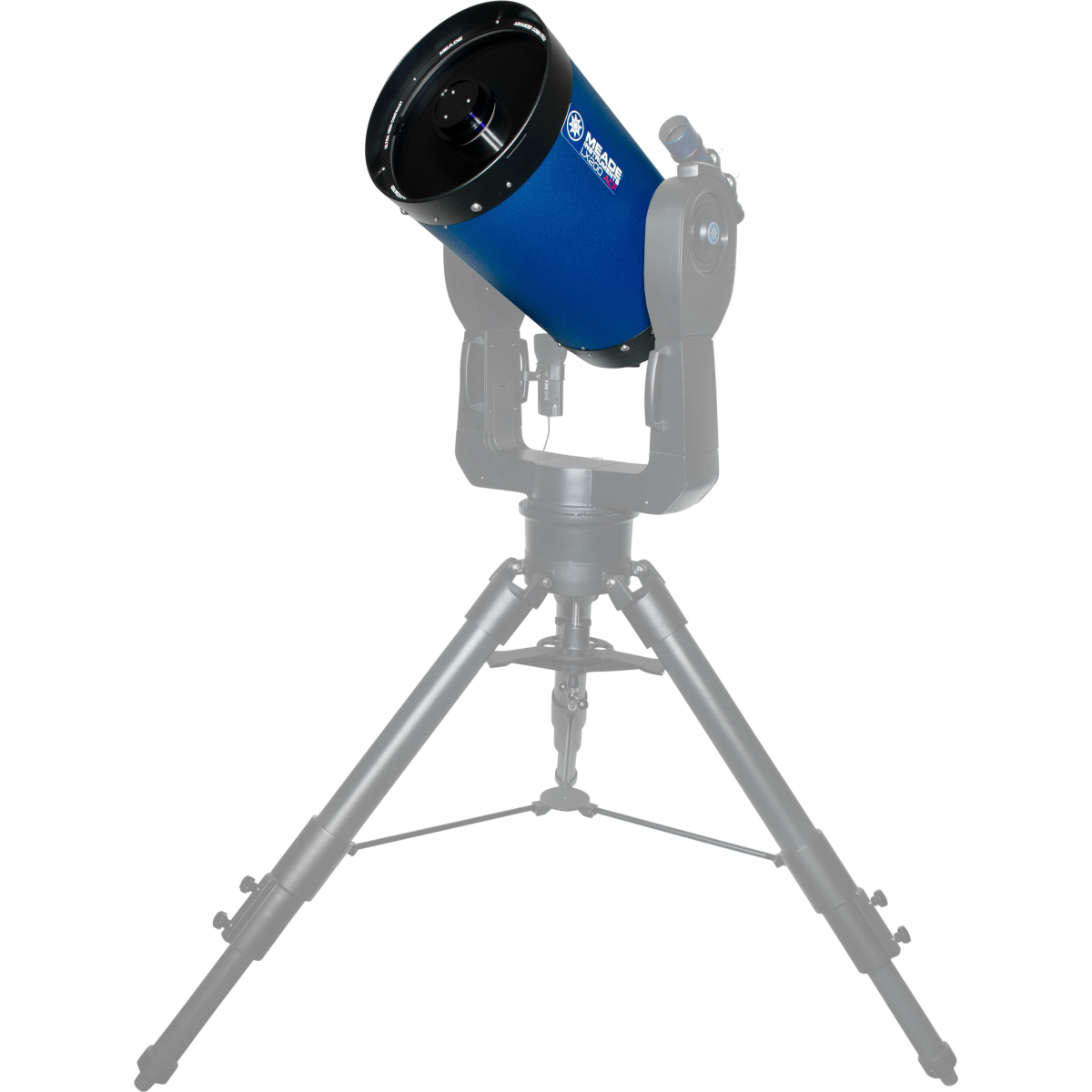

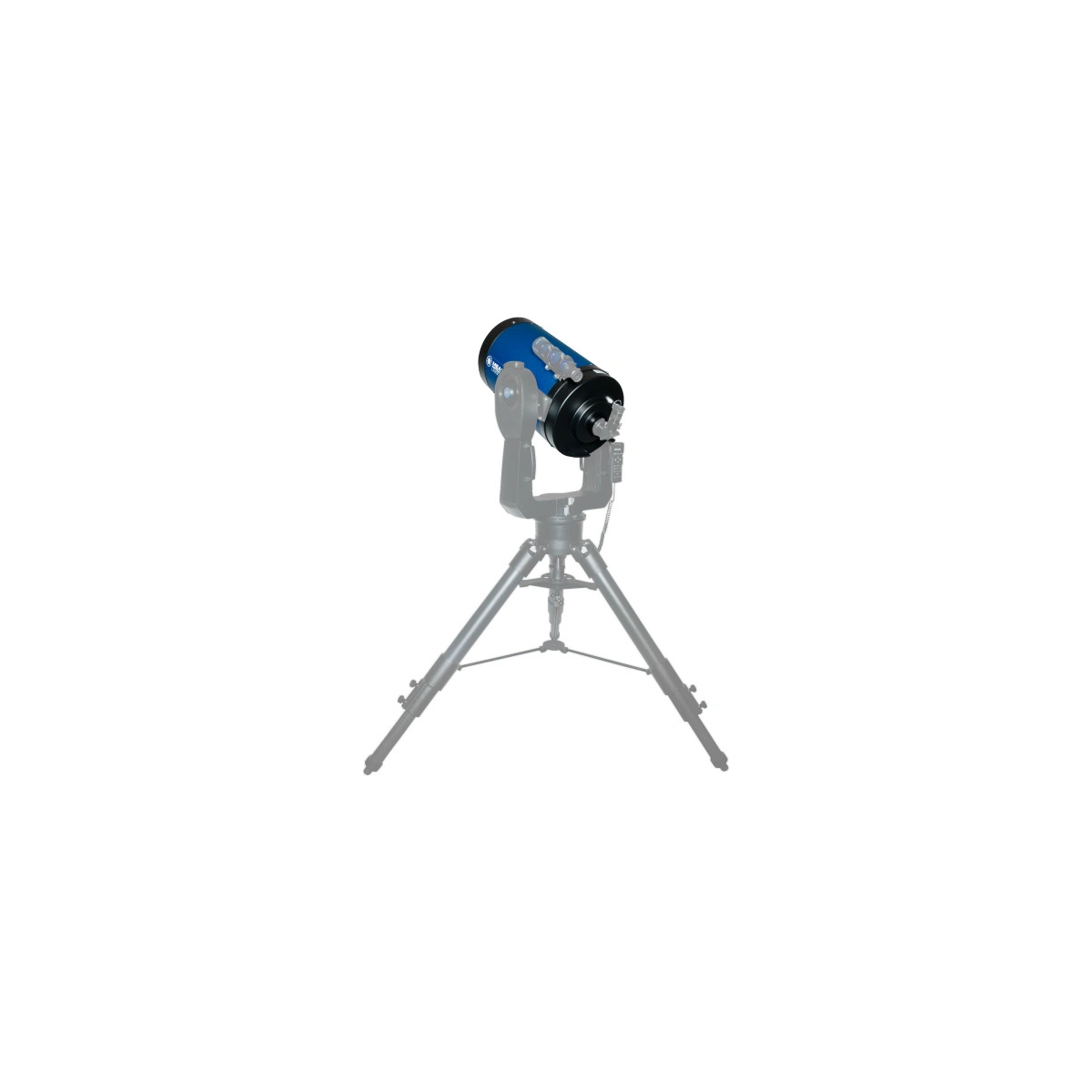

The Meade 12" f/10 LX200 ACF optical tube assembly offers a large aperture in a compact and lightweight design, making it an excellent choice for both amateur and professional astronomers. This model is equipped with advanced optics and features that enhance both visual observation and astrophotography.
Specifications:
- Aperture: 12 inches
- Focal Ratio: f/10
- Focal Length: 3048mm

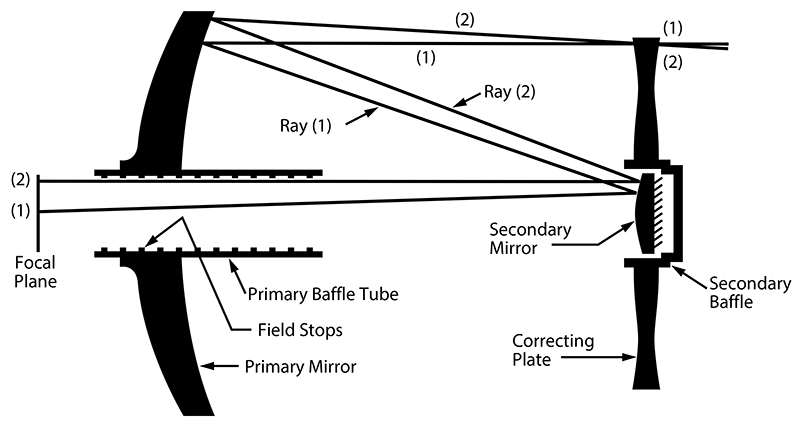

- Optics: Advanced Coma-Free (ACF)
- Coatings: Ultra-High Transmission Coatings (UHTC)
- Mirror: Oversized low-expansion Borosilicate primary mirror
- Focuser: Internal single-speed
- Weight: 35 lbs (15.9 kg)
- Mount Compatibility: Losmandy-style dovetail bar
Key Features:
- Advanced Optics: ACF optics provide a flat field, reduced astigmatism, and eliminate diffraction spikes for superior visual clarity.
- High-Quality Construction: Designed and manufactured in North America with glass blanks made exclusively in the USA for Meade.
- UHTC Coatings: Enhance image brightness and contrast, offering detailed views of celestial objects.
Astrophotography Advantages:
- Long Native Focal Length: Ideal for high-resolution photography of planets and the Moon.
- Optional Focal Reducer: Converts f/10 ACF to f/6.8, optimizing the telescope for deep space imaging by reducing exposure times and expanding the field of view by nearly 50%.
Focusing and Stability:

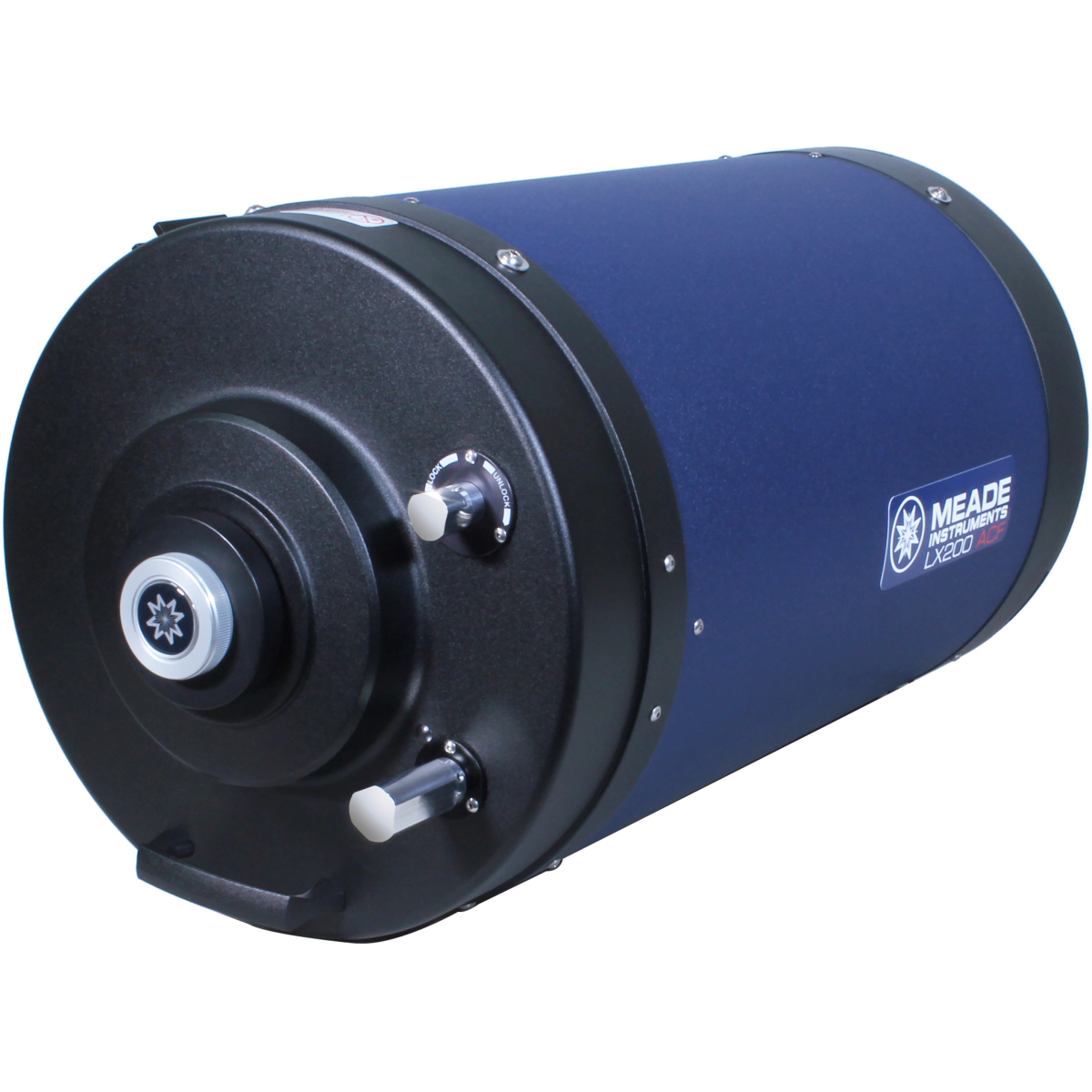

- Primary Mirror Lock: Prevents movement during long exposure astrophotography or visual observing, eliminating image shift.
- Single-Speed Focuser: Provides precise control for focusing.
Design and Compatibility:
- Compact and Portable: Lightweight design with a Losmandy-style dovetail bar for easy attachment to compatible mounts.
- Versatile Use: Suitable for both backyard observation and remote dark sky locations.
The Meade 12" f/10 LX200 ACF optical tube assembly is designed for those who seek high-quality optics and mechanical precision. Its advanced features make it an ideal choice for exploring the night sky, offering exceptional performance for both visual observation and astrophotography. With its lightweight construction and compatibility with various mounts, this optical tube is perfect for astronomers who require portability and versatility.
