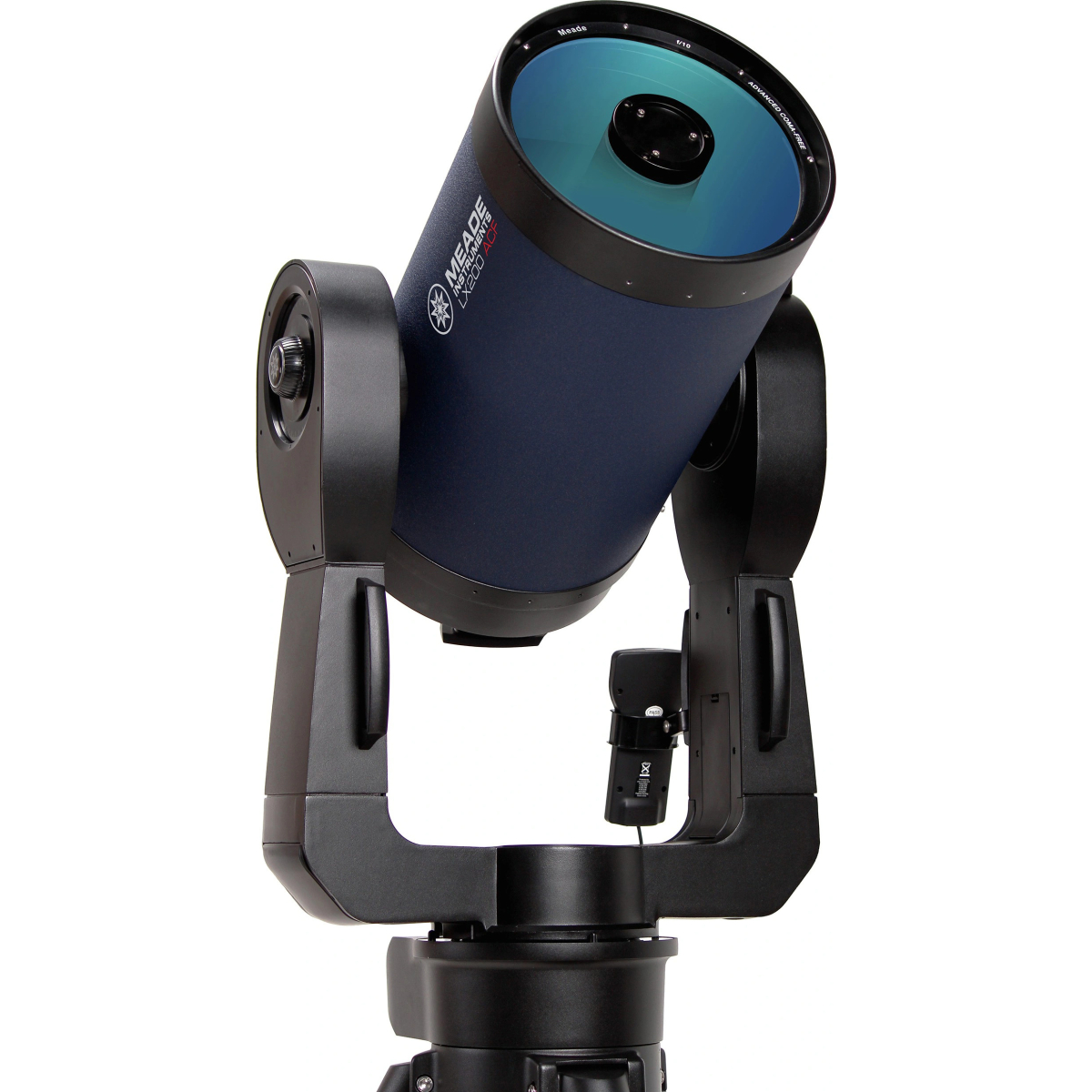

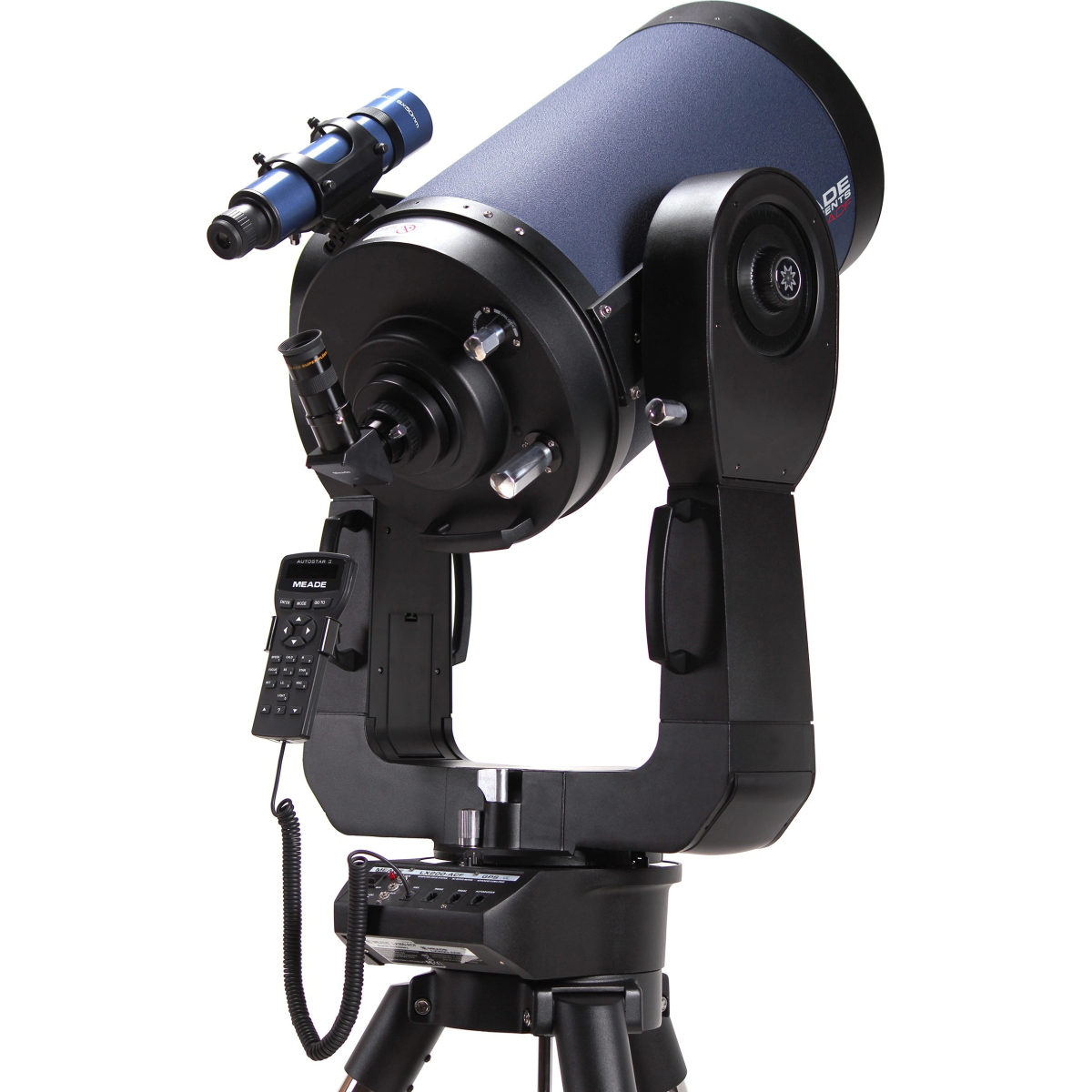

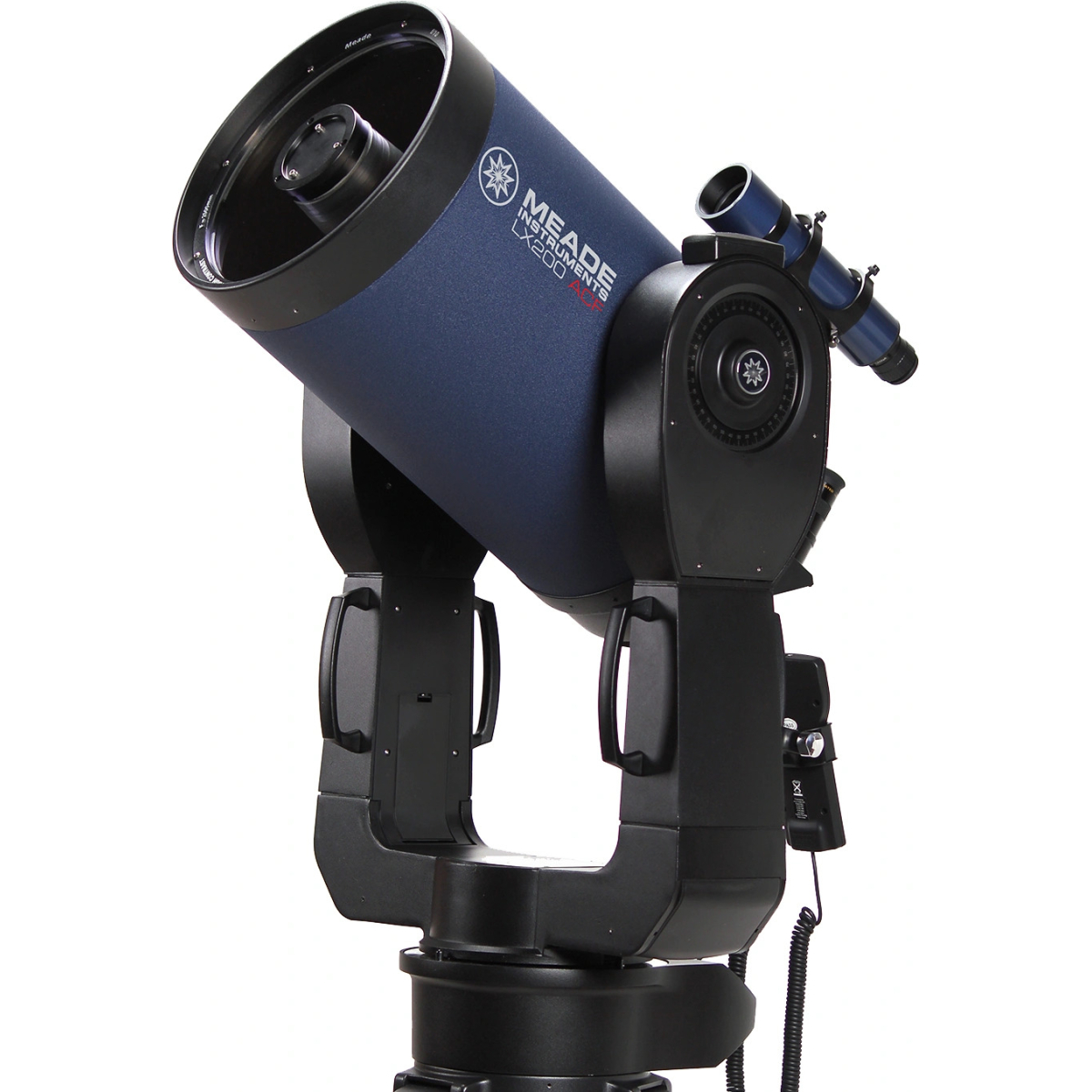

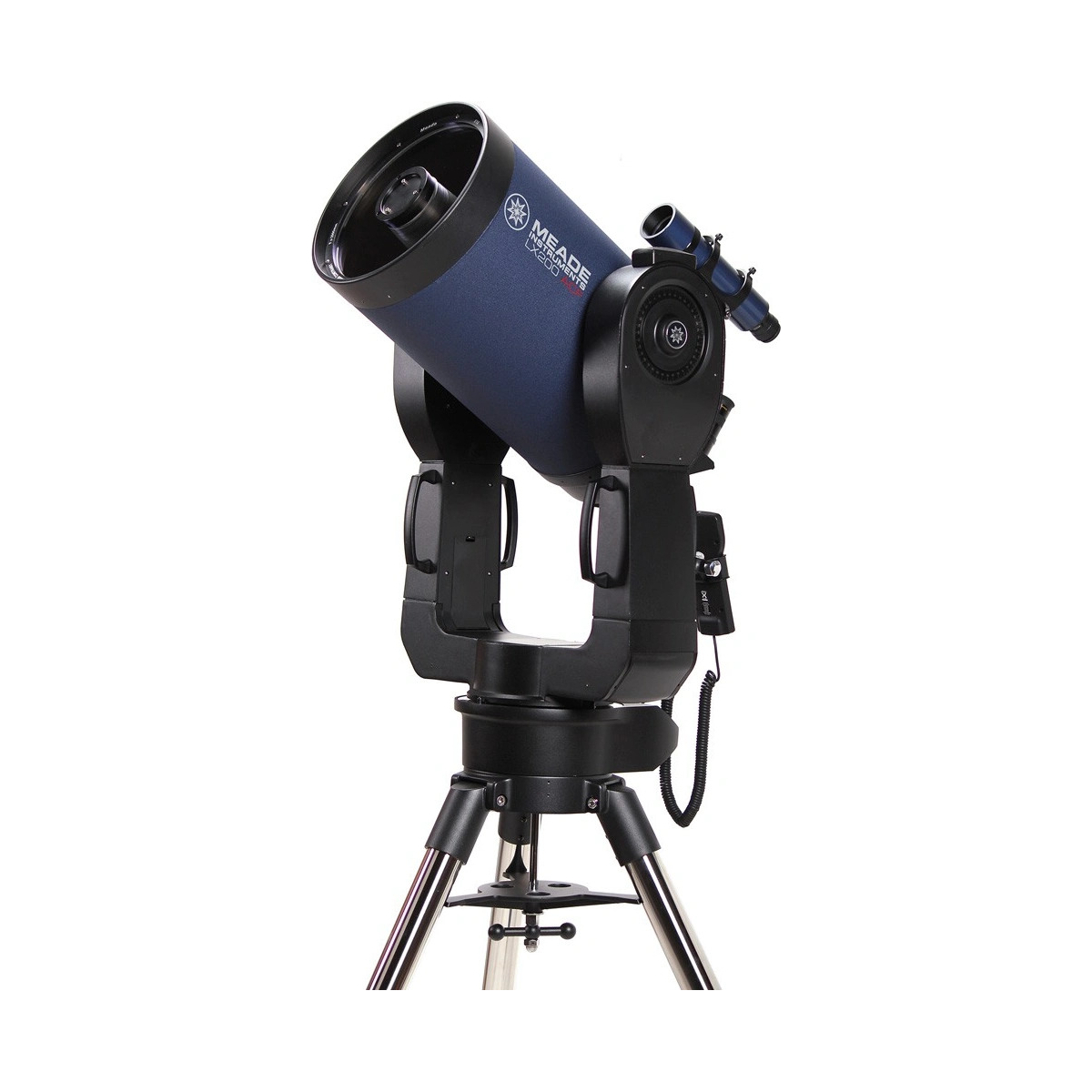

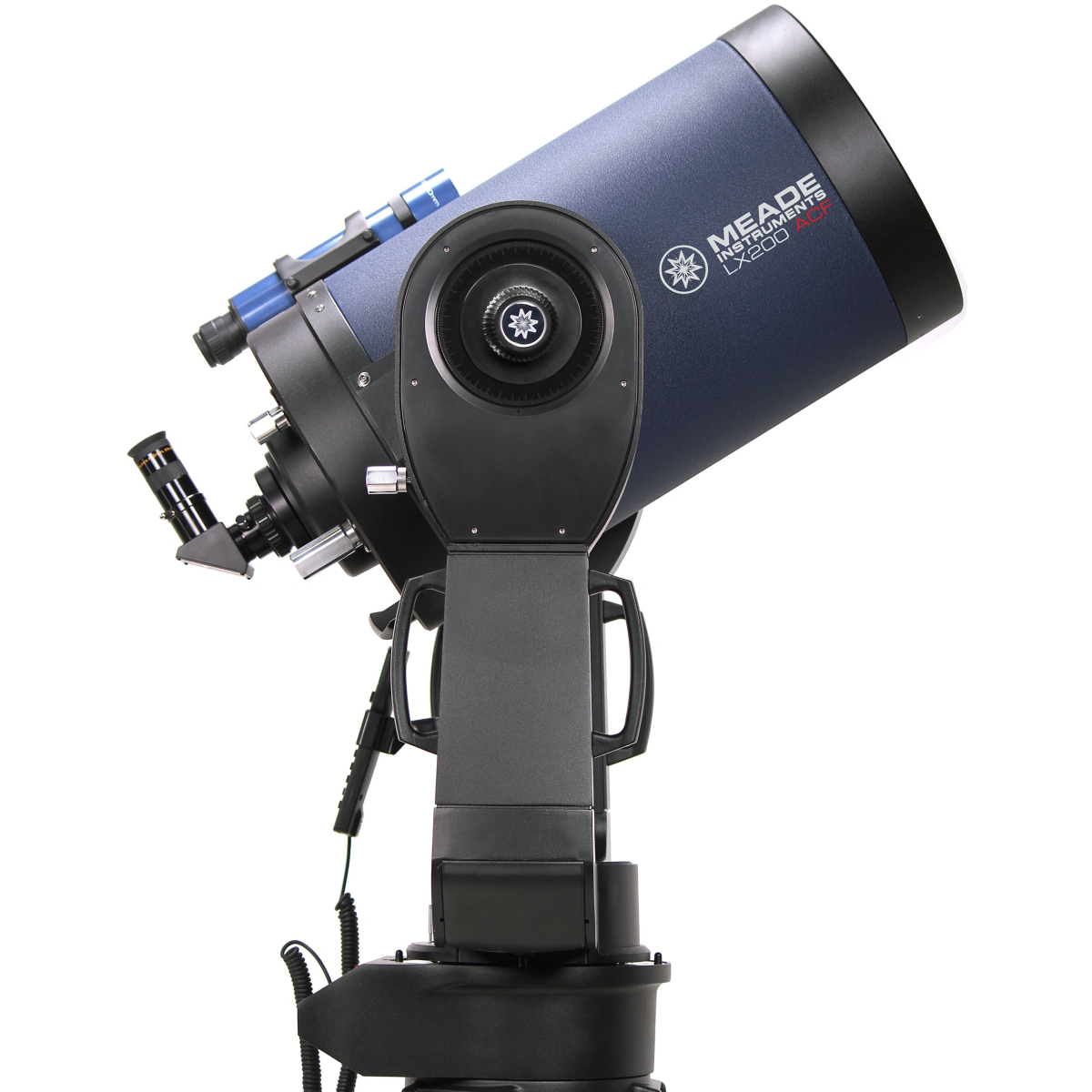

The Meade 10" f/10 LX200 ACF Telescope is a renowned member of Meade's LX series, designed for backyard stargazing, observatories, and portable dark sky trips. Its compact design and ease of setup make it an excellent choice for astronomers of all levels, offering advanced features for both visual observation and astrophotography.

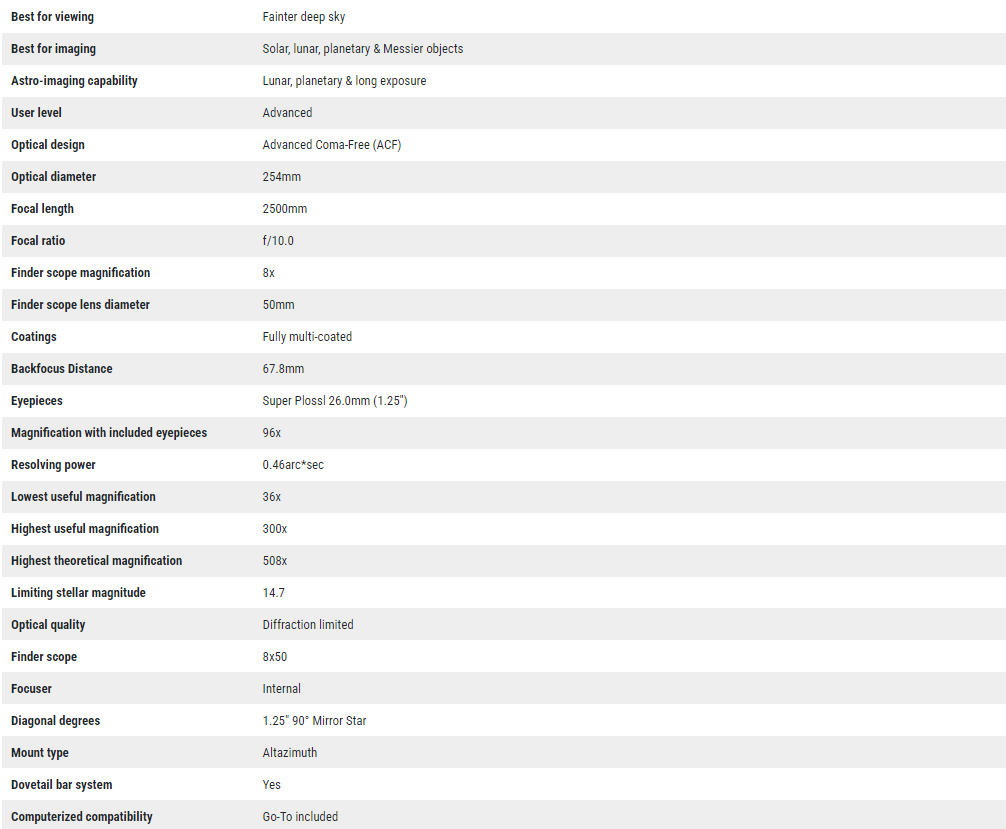

Specifications:
- Aperture: 10 inches
- Focal Ratio: f/10
- Focal Length: 2500mm

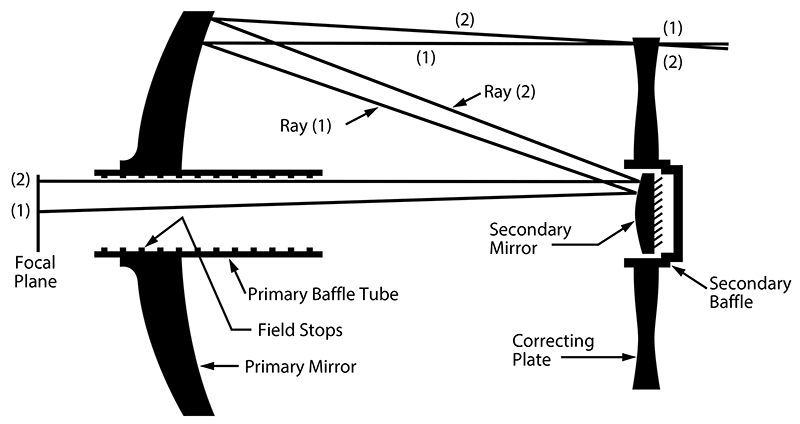

- Optics: Advanced Coma-Free (ACF)
- Coatings: Ultra-High Transmission Coatings (UHTC)
- Mount Type: Dual-Fork, Alt/Az
- Included Eyepiece: Series 4000 26mm Super Plössl (96x)
- Finder: 8x50 optical with crosshair
- Diagonal:1.25" mirror

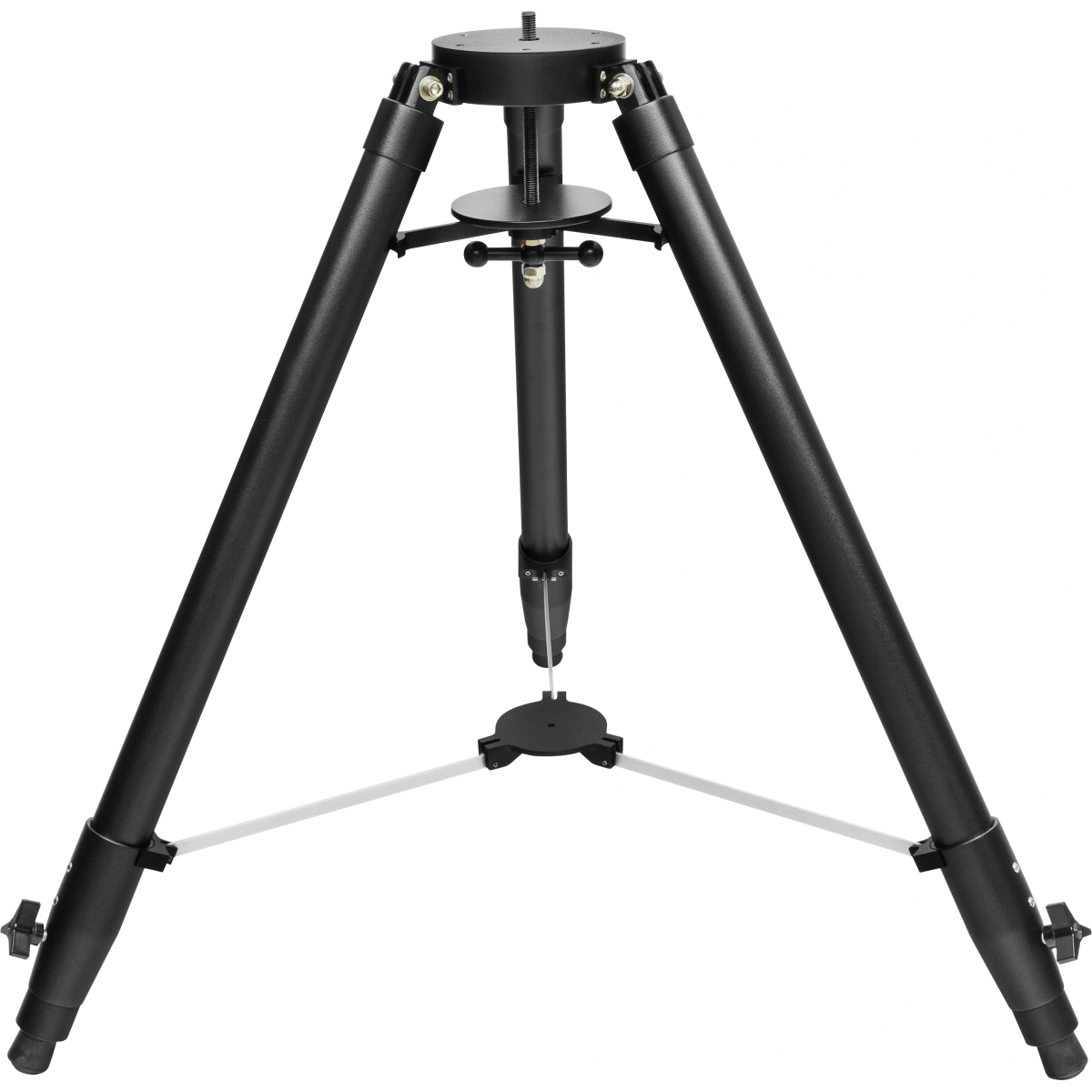

- Tripod: Standard Field Tripod
Key Features:

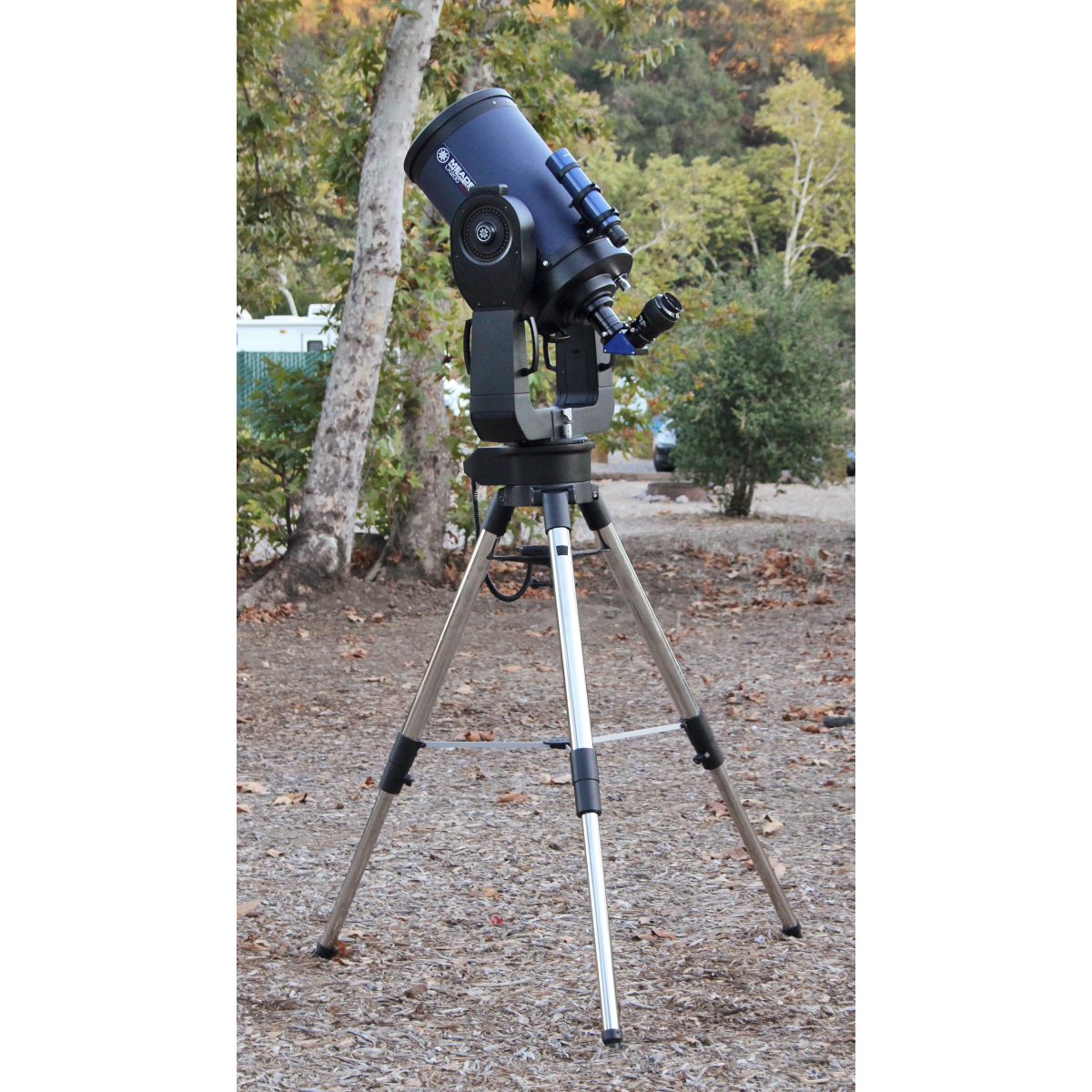

- Compact and Portable: Easily disassembled for transport and quick setup by one person.

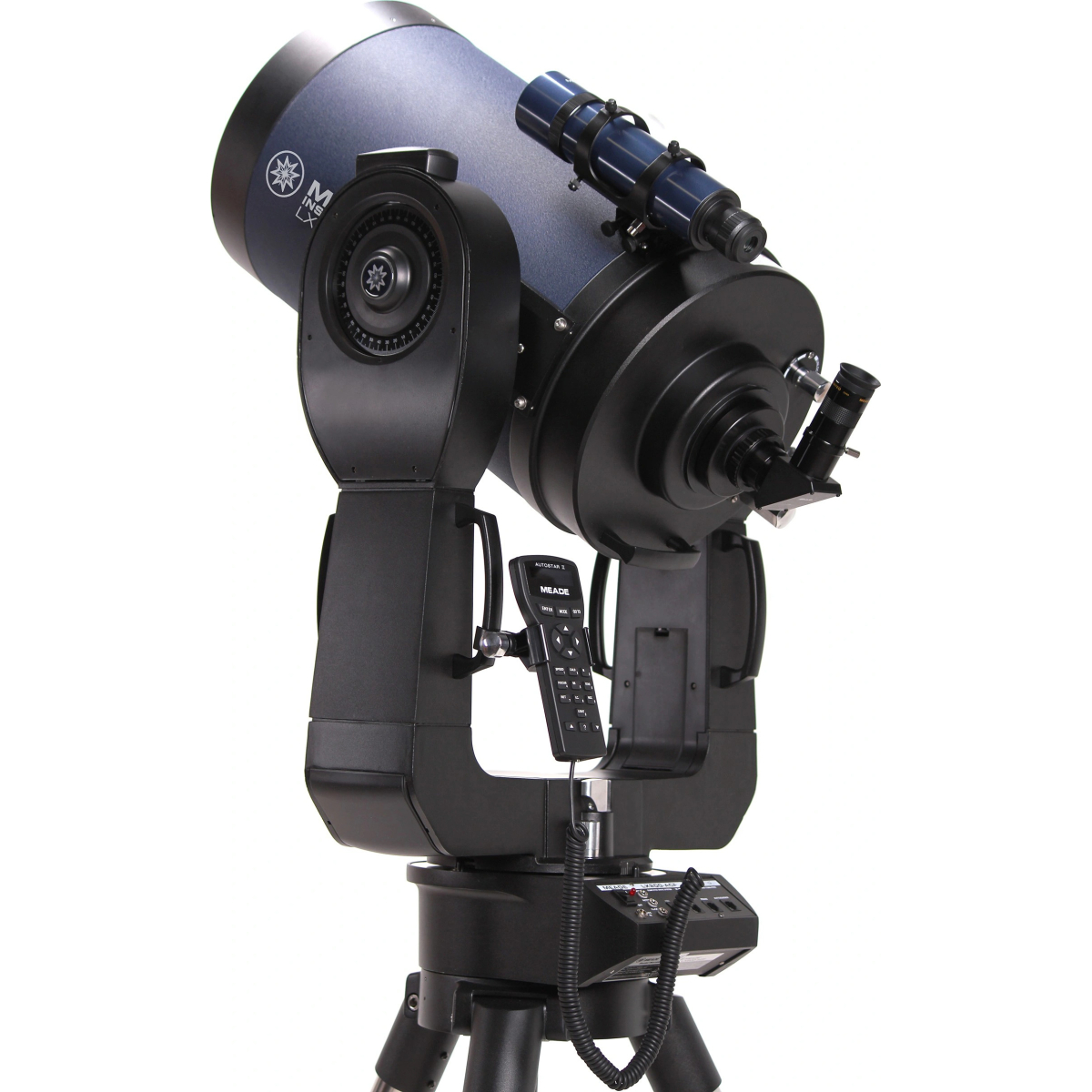

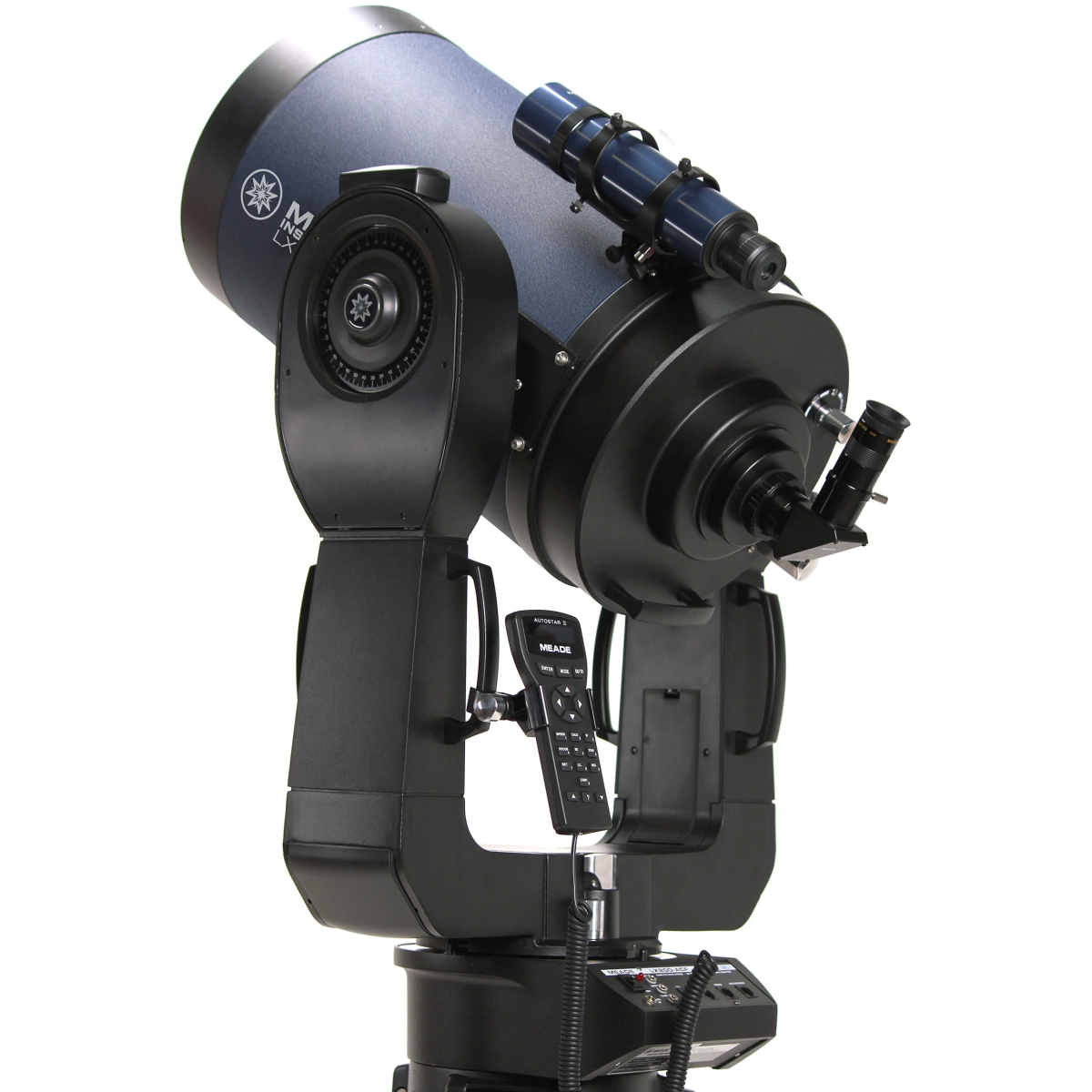

- Stable Fork Arms: Minimize vibrations, essential for high power observation and long exposure imaging.

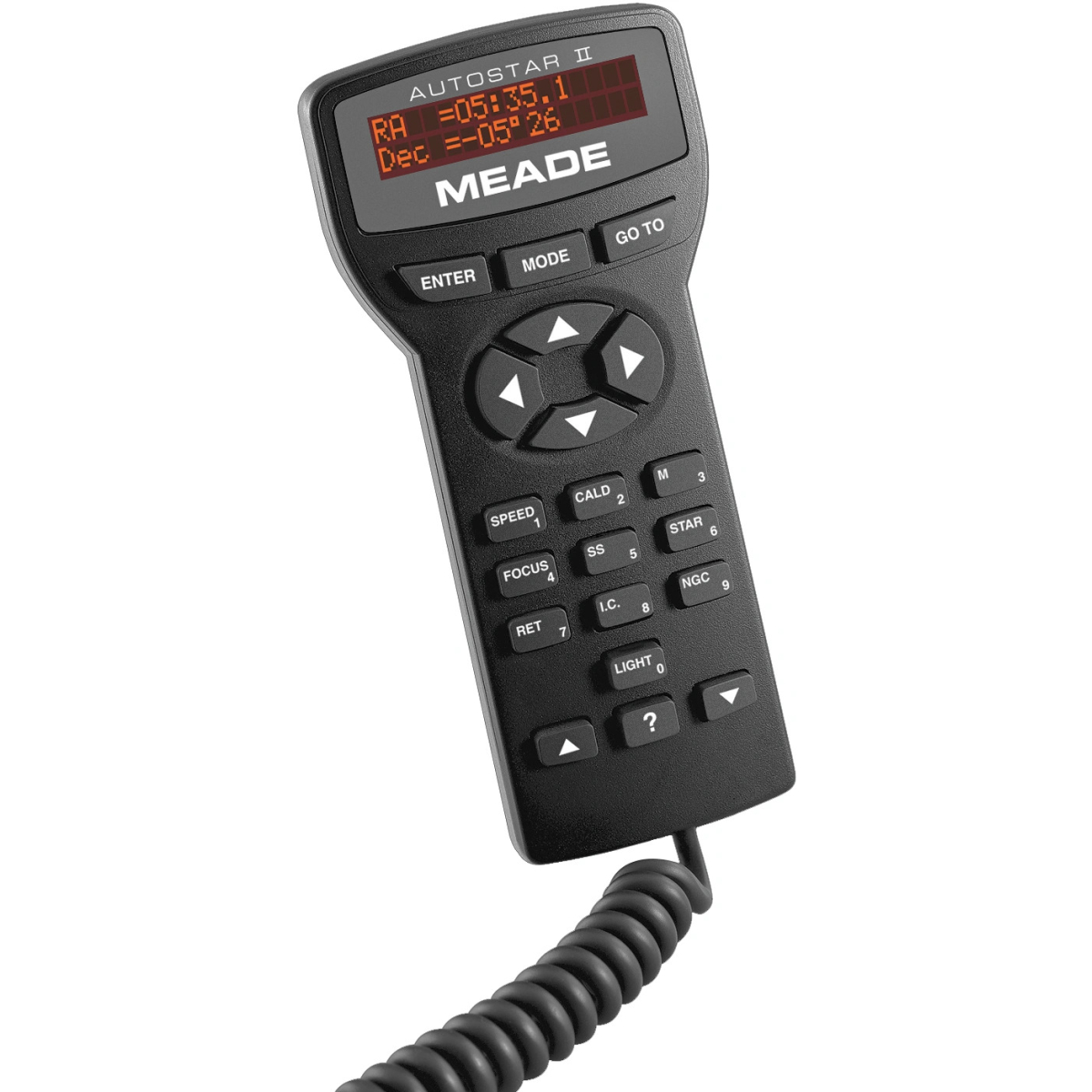

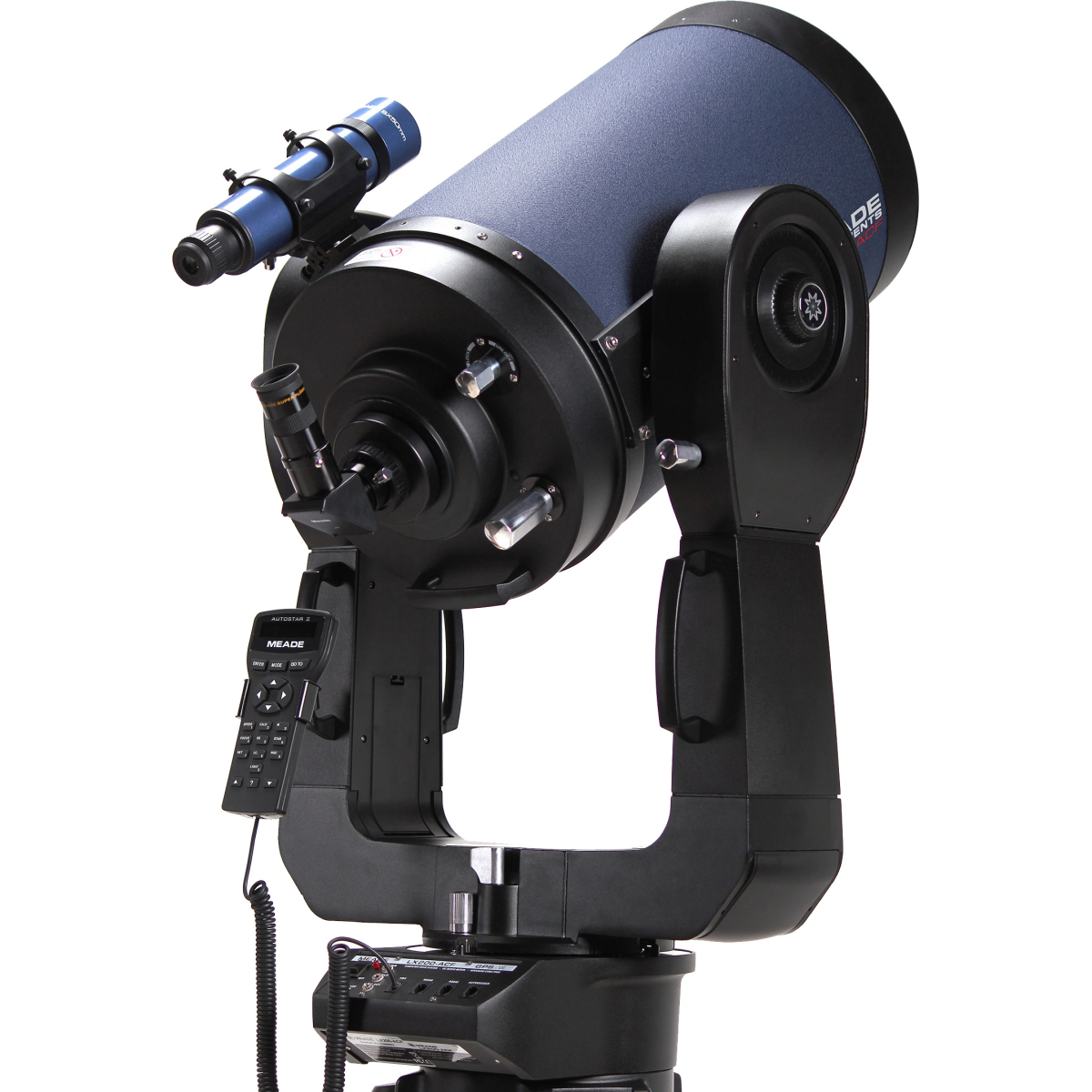

- AutoStar II Hand Controller: Provides push-button controls, automatic locating, and tracking of celestial objects.
- ACF Optics: Deliver flat fields of view without coma, ideal for both visual observers and astro-imagers.
Advantages for Astrophotography:
- Long Native Focal Length: Ideal for high-resolution planetary and lunar photography.
- Optional Focal Reducer: Converts f/10 to f/6.8, enhancing deep space imaging by reducing exposure times and expanding the field of view.
Mechanical Enhancements:
- Focus Lock System: Prevents mirror movement during observations and imaging.
- Optional Electronic Microfocuser: Allows precise, touch-free focusing.
- Improved Motor Drive System: Offers a maximum slew rate of 8 degrees per second, with Smart Drive technology for guiding accuracy.
- Automatic Alignment: Uses magnetic north sensor, GPS, and level sensors for quick and easy alignment.
Mechanical Advantages:
- Robust Fork Arms: Provide a stable platform, capable of handling more weight and larger optical tube sizes.
- Slow-Motion Controls: Enable manual adjustments without power, useful for field use.
Advanced Electronics:
- AutoStar II Computer System: Features a 145,000-object library, guided tours, and High Precision GoTo Pointing.
- Multiple Ports: Includes RS-232 PC interface, Autoguider port, illuminated reticle power, and 12v output power.
- Power Supply: Operates on 8 C-cell batteries for about 20 hours (optional AC adapter available).
Optional Upgrades:

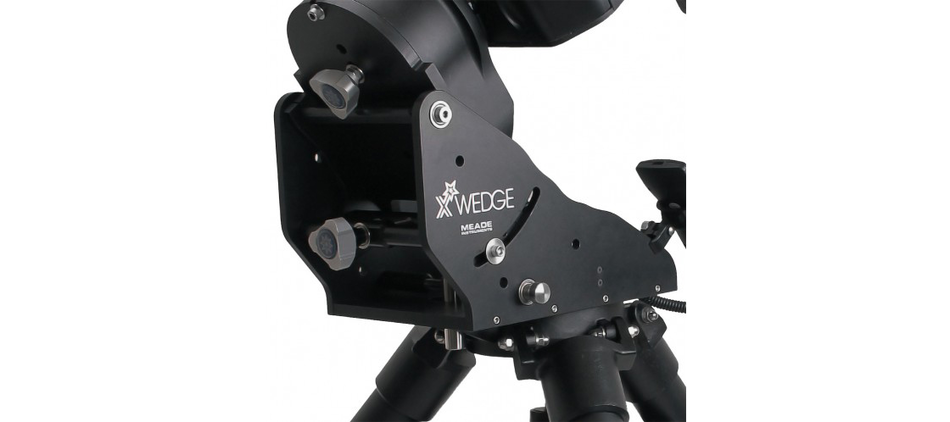

- Equatorial Wedge: Converts the telescope to an EQ mount for deep-sky imaging, eliminating field rotation and the need for meridian flips.
Quality and Design:
- Manufactured in North America: High-quality materials and construction ensure durability and performance.
- Versatile Use: Suitable for backyard, observatory, or remote dark sky locations.
The Meade 10" f/10 LX200 ACF Telescope is a versatile and high-performance instrument, perfect for both amateur and professional astronomers. Its advanced features and ease of use provide a gateway to exploring the night sky, offering stunning views and exceptional astrophotographic capabilities.
