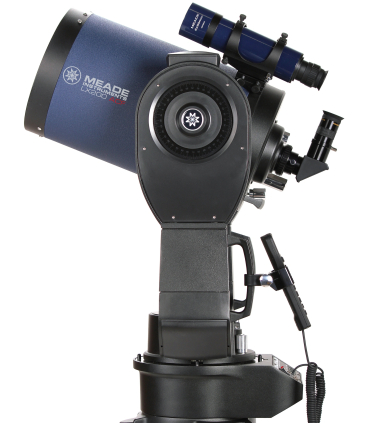

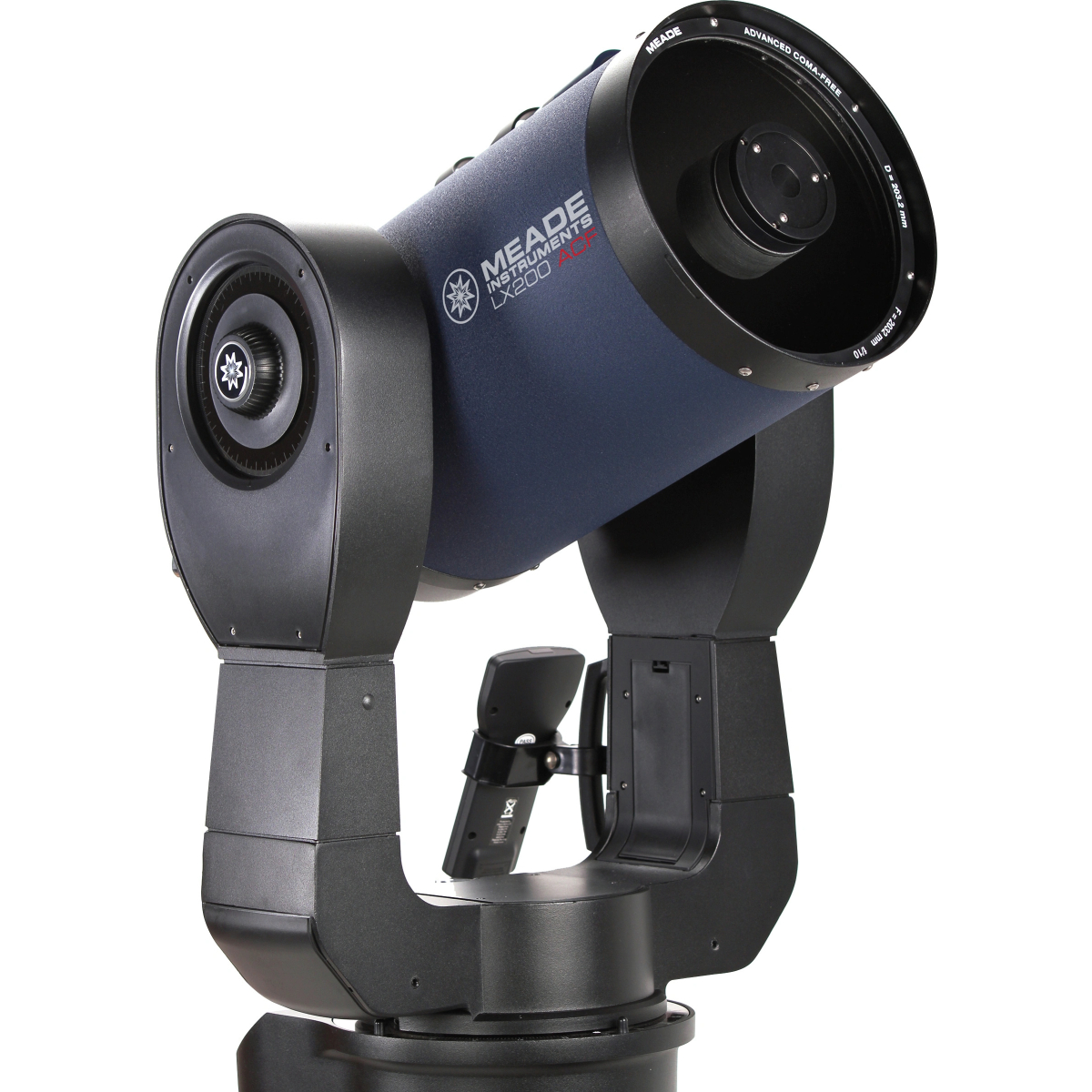

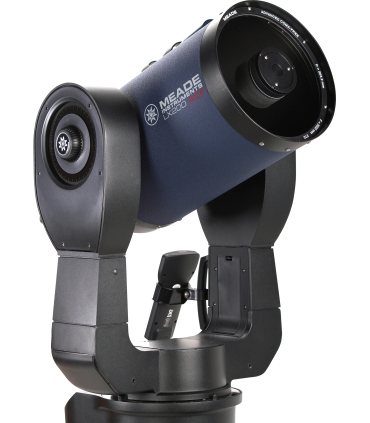

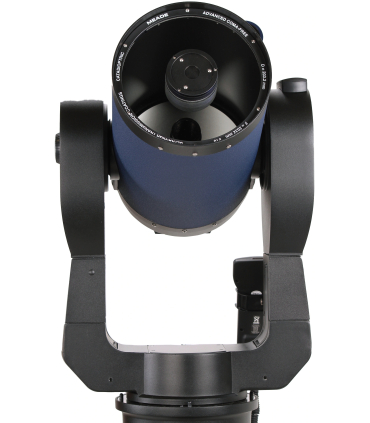

تلسکوپ مید مدل eight- f/10 LX200 ACF Telescope برند Meade

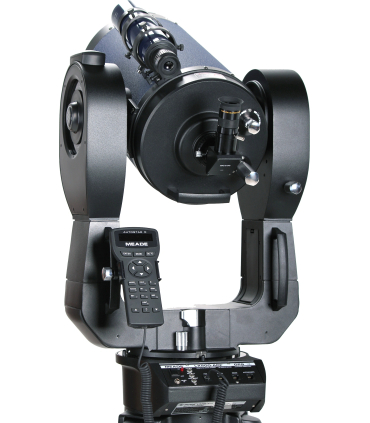

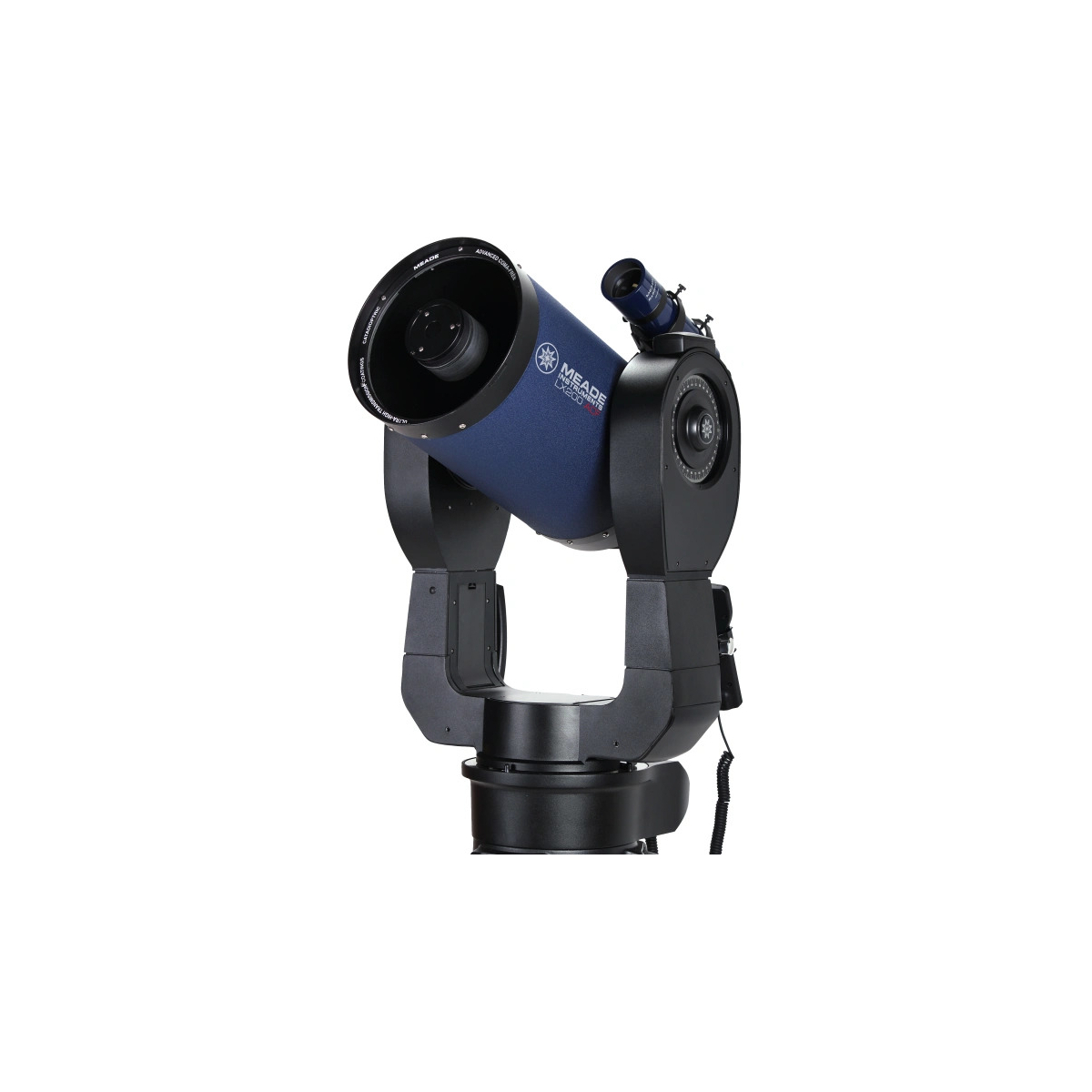

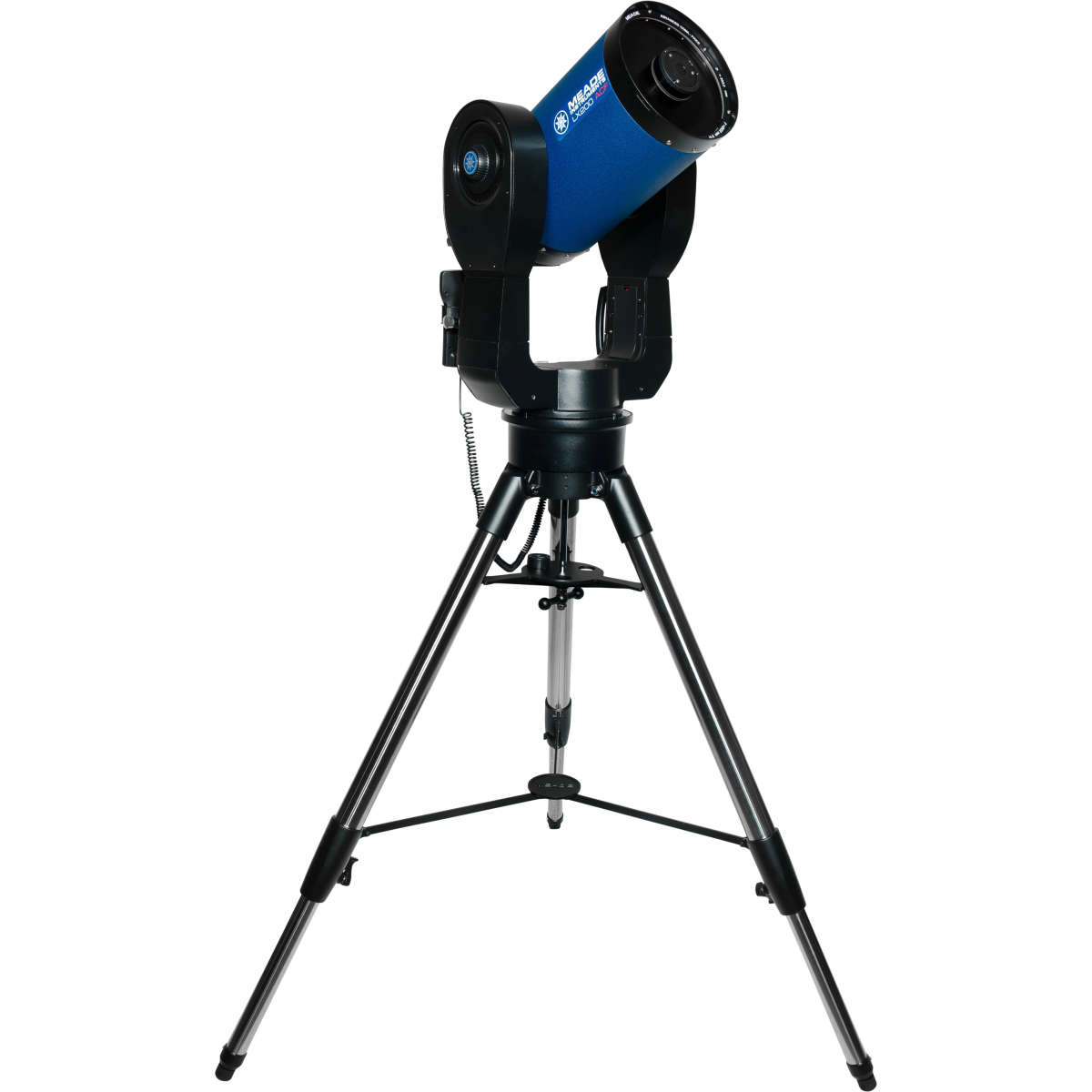

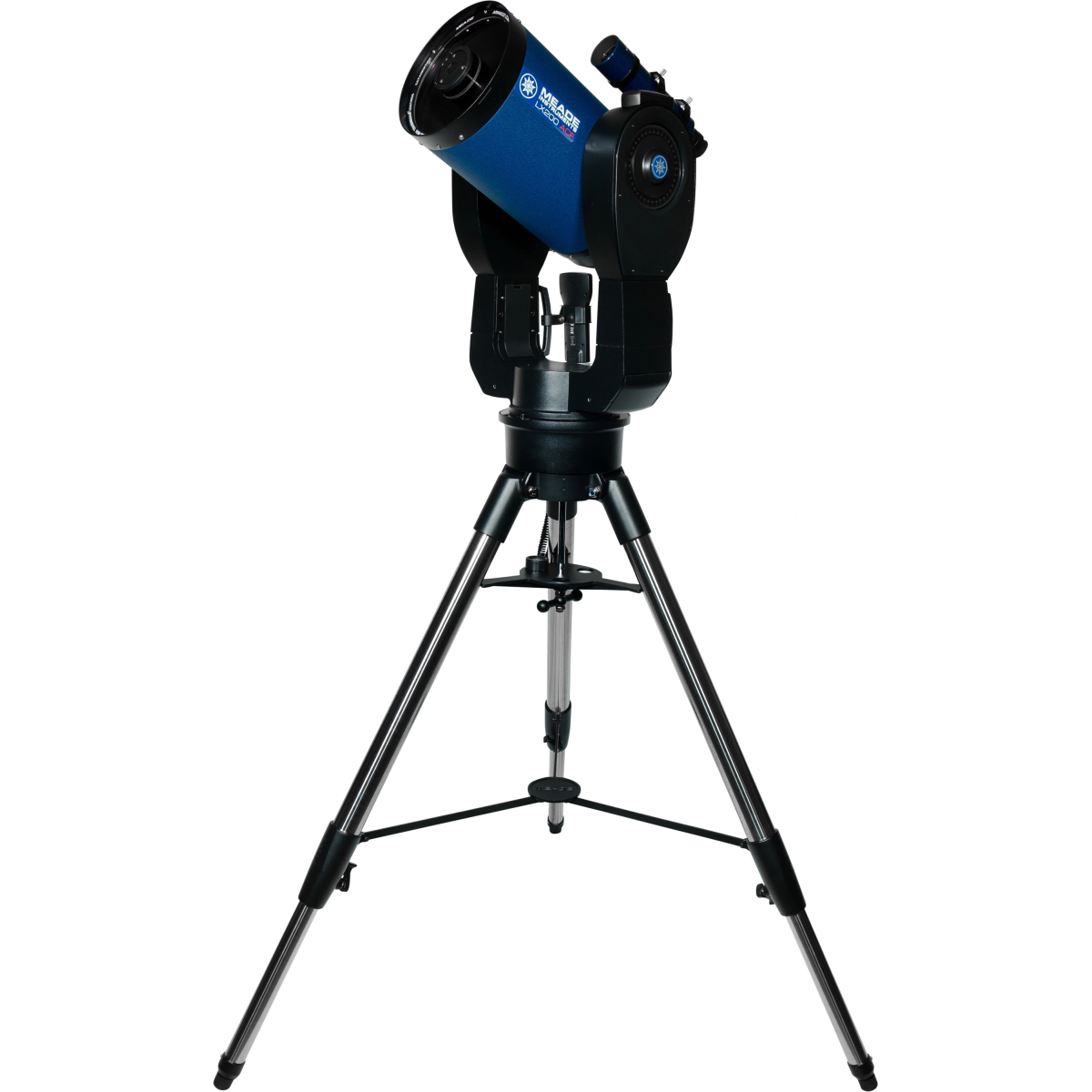

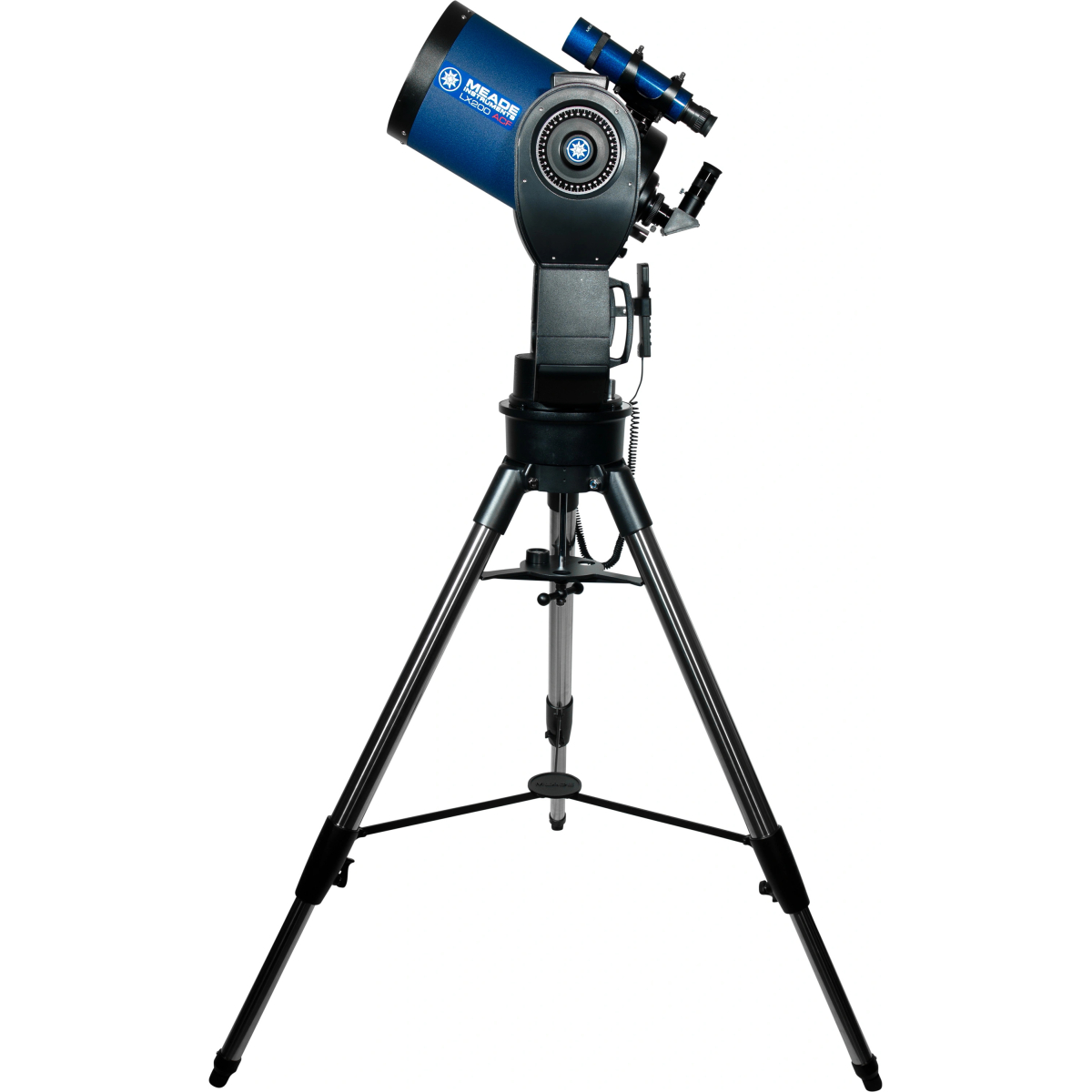

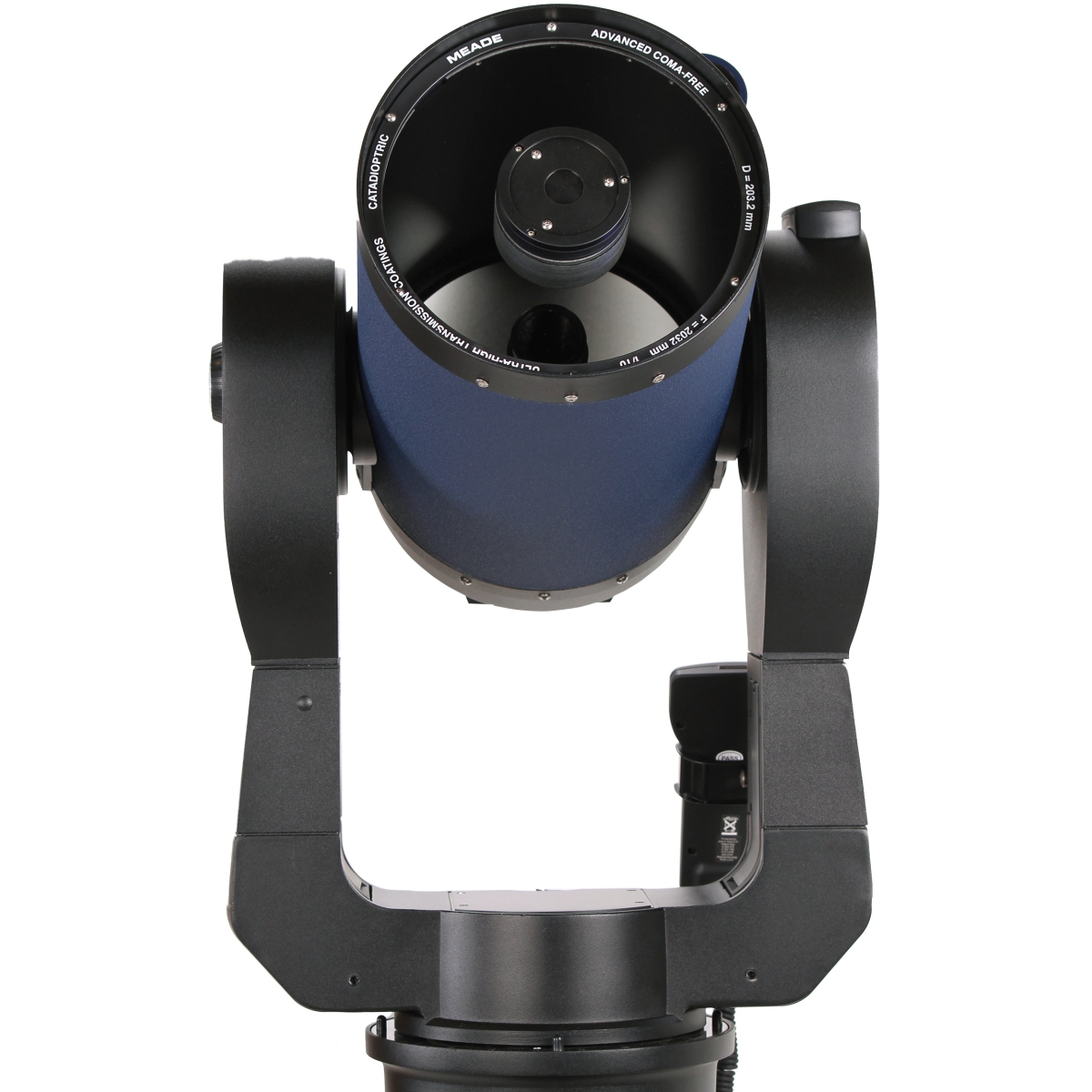

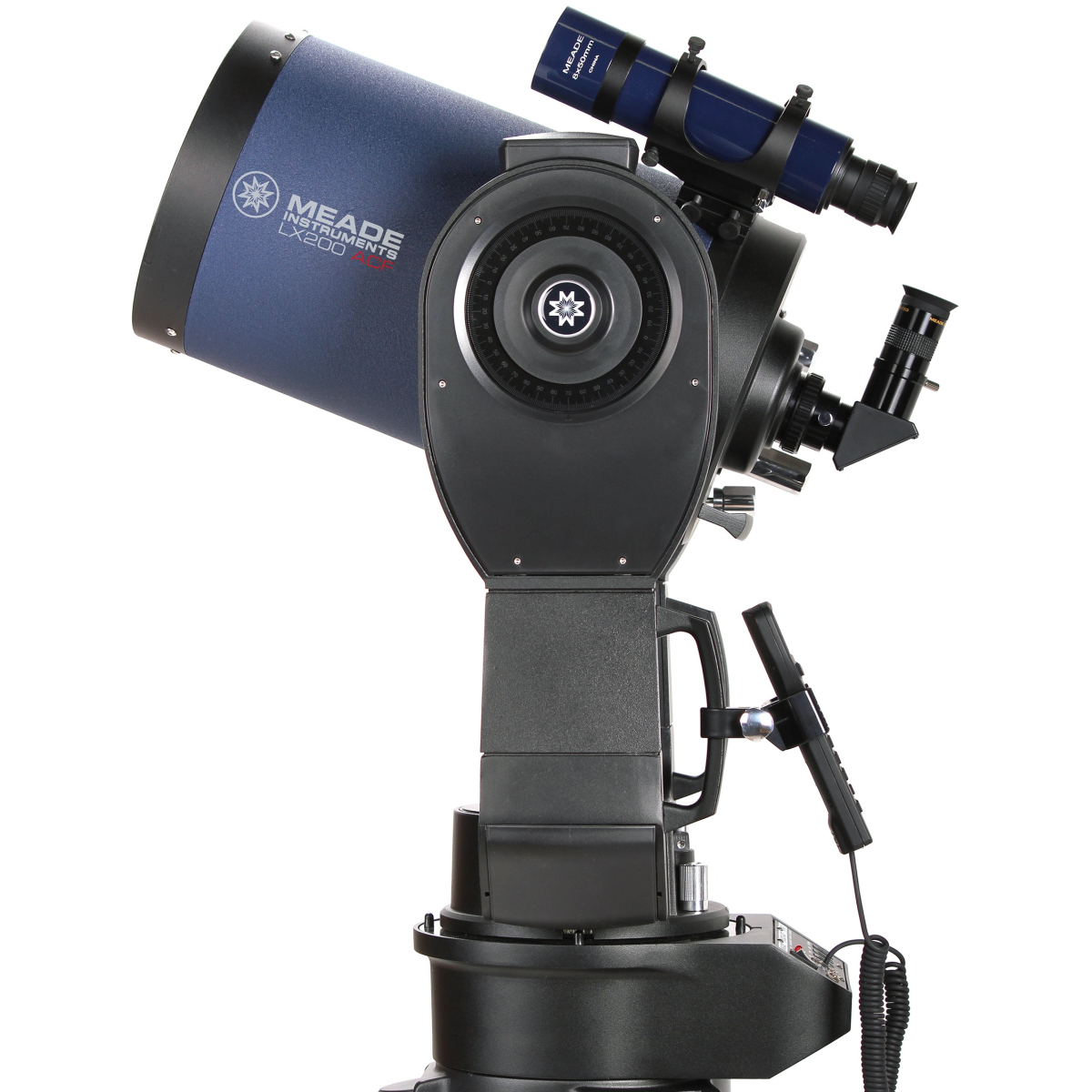

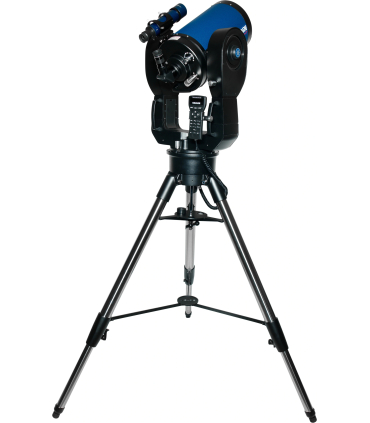

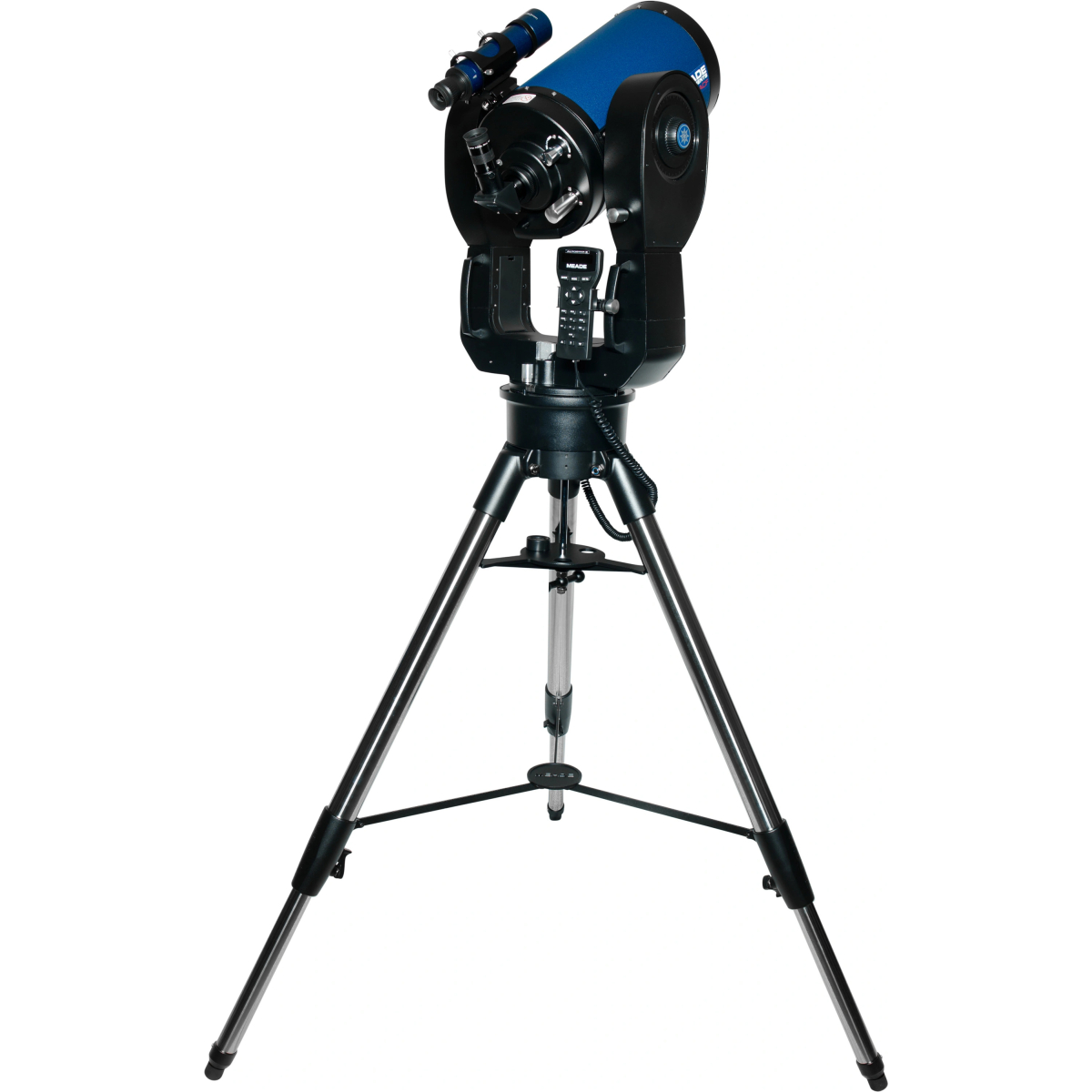

The Meade 8" f/10 LX200 ACF Telescope is a standout in Meade's LX series of Alt/Az fork-mounted telescopes. Despite its large aperture, it remains compact and portable, making it suitable for backyard setups, small/medium observatories, and travel to dark sky sites. The LX200 8" can be easily managed and set up by one person, with strong fork arms that stabilize the optical tube, reducing vibrations essential for high-power planetary observation or long-exposure deep-sky imaging.

Key Features:

Optical System:

• 8" (203mm) aperture
• 2000mm focal length
• f/10 focal ratio

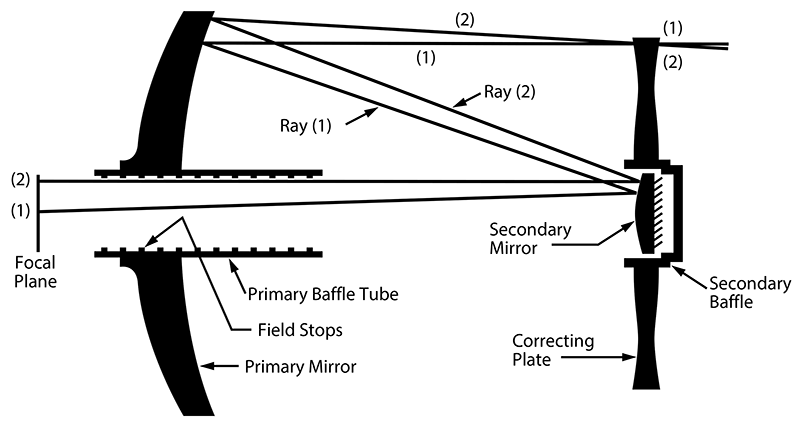

• Advanced Coma-Free (ACF) optics for flat fields of view with no coma
• Ultra-High Transmission Coatings (UHTC) for maximum image brightness and contrast
• Reduced astigmatism and no diffraction spikes

Construction and Design:

• Manufactured in North America with parts made in the USA

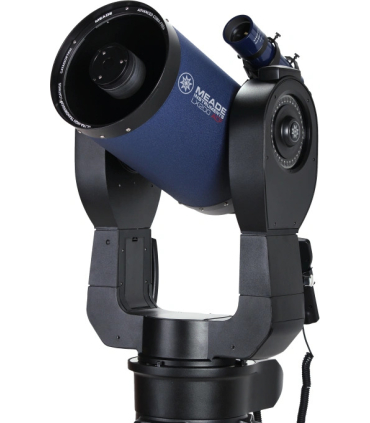

• Strong fork arms for stability
• Lightweight and portable, ideal for travel and easy setup
• Vixen-style dovetail bar for easy mounting

Astrophotography:

• Ideal for high-resolution planetary and lunar photography
• Optional Meade ACF 0.68x Focal Reducer for deep space imaging
• Converts f/10 ACF to f/6.8 and f/8 ACF to f/5.5
• Reduces exposure times and expands the field of view by nearly 50%

Included Accessories:

• 1.25" 26mm Super Plössl eyepiece (77x)
• 8x50 optical finder scope with crosshair
• 1.25" diagonal mirror

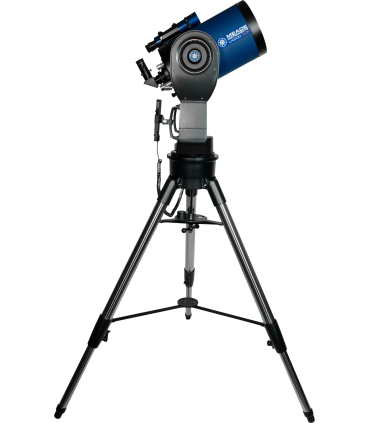

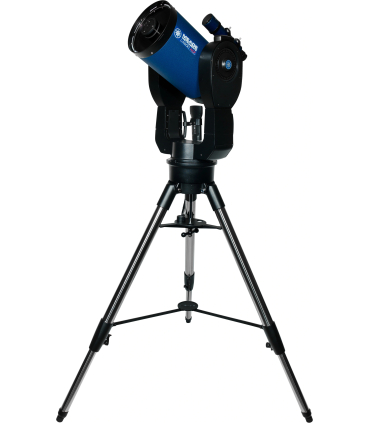

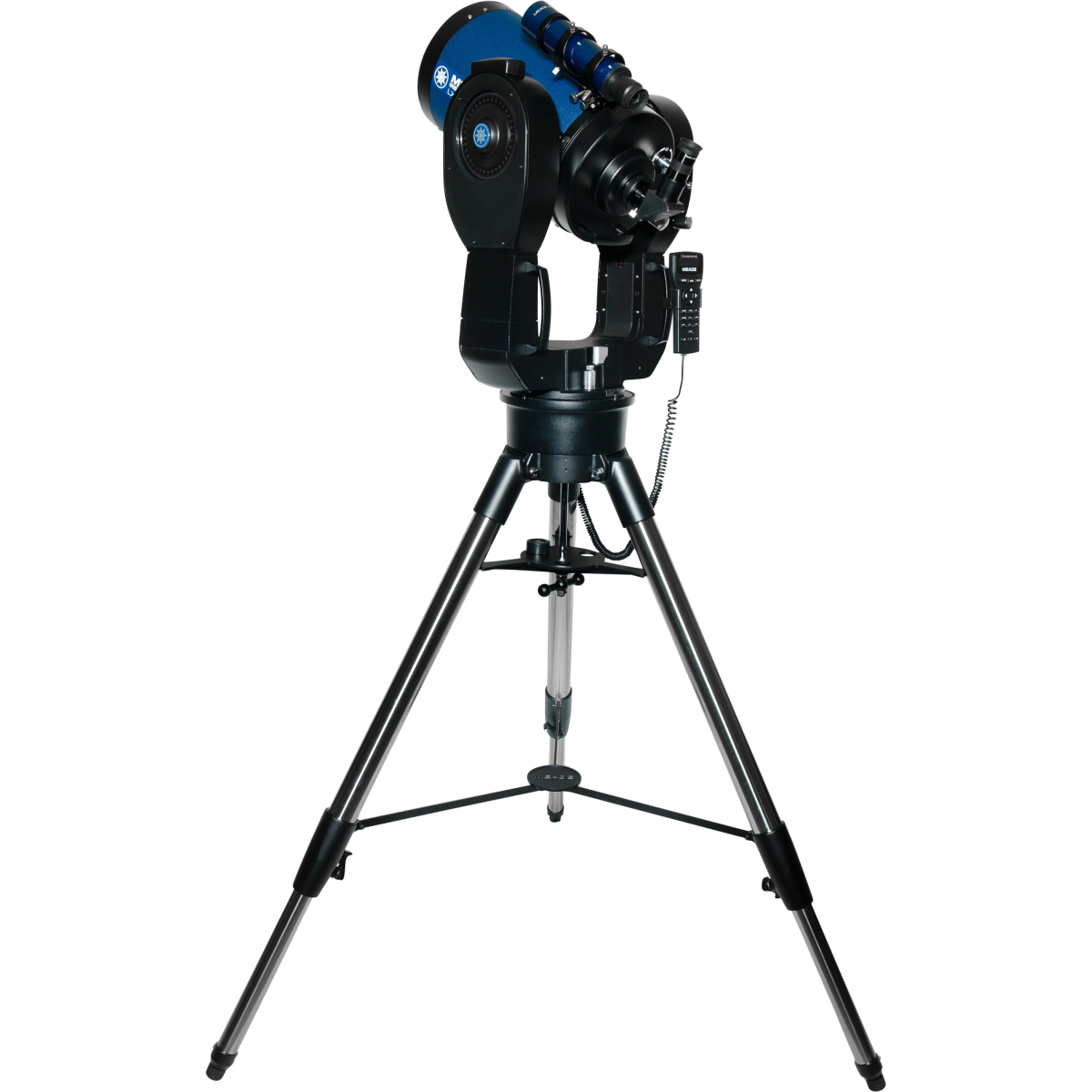

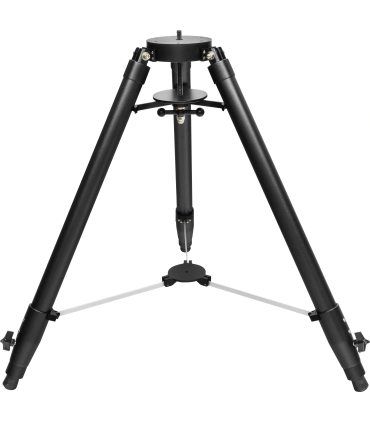

• Standard Field Tripod

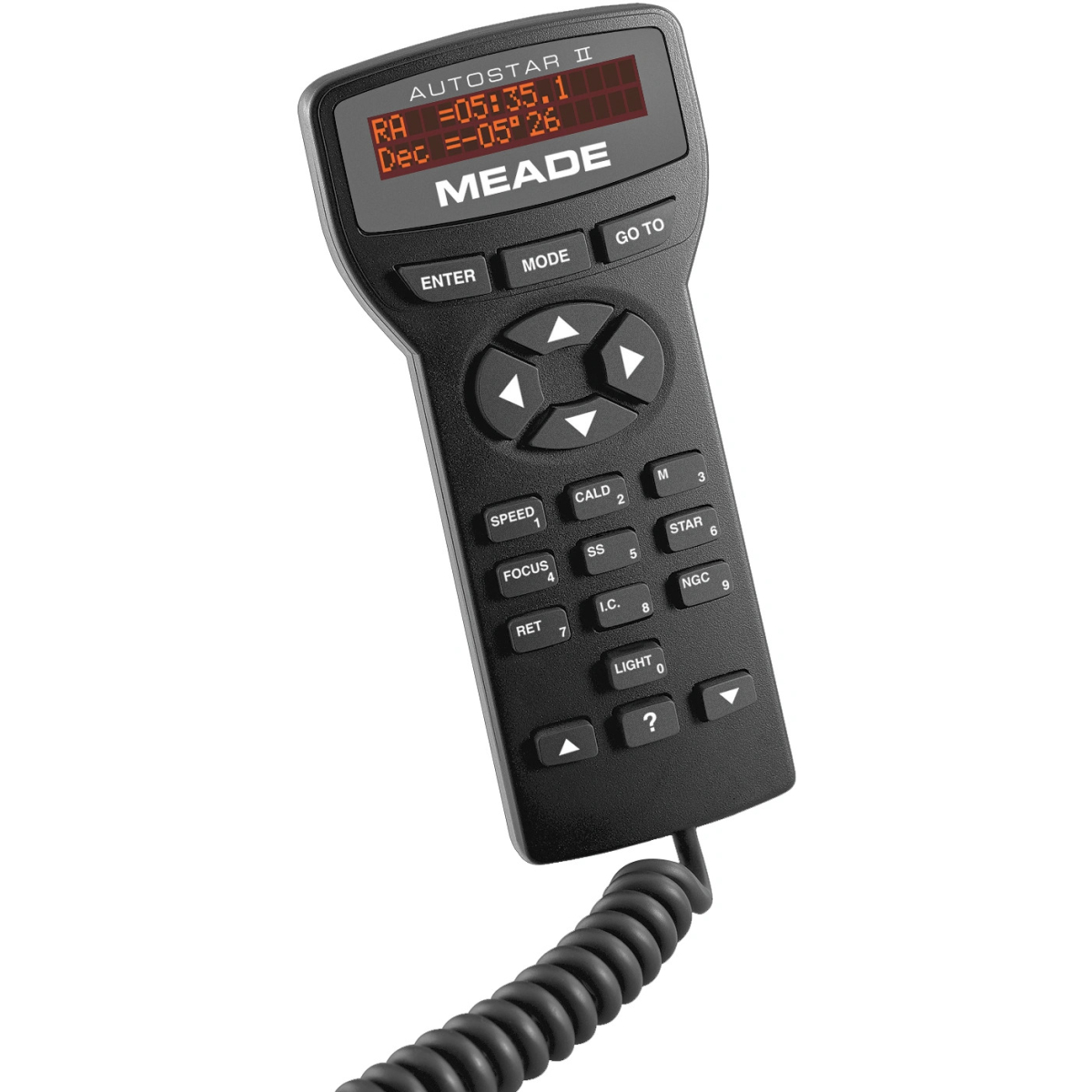

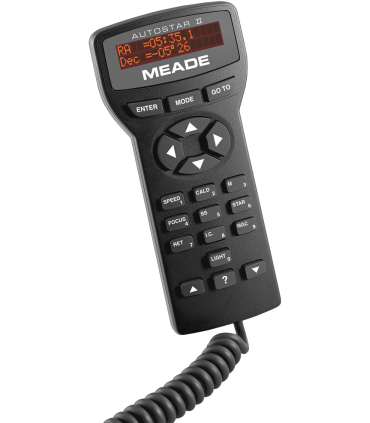

• AutoStar II hand controller with 145,000-object database

Additional Features:

• Focus lock system to prevent mirror movement
• Optional Electronic Microfocuser for precise focusing
• High torque motors with Smart Drive technology for improved tracking accuracy
• Built-in magnetic north sensor and GPS for automatic alignment

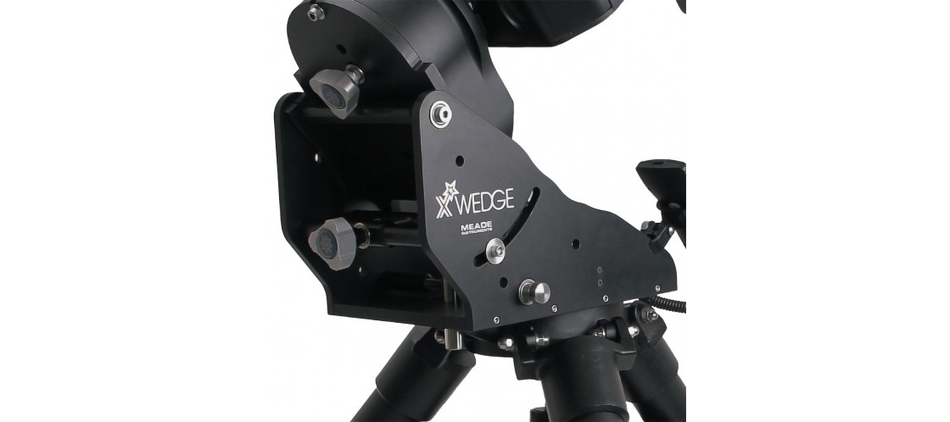

• Optional equatorial wedge for deep-sky imaging to eliminate field rotation and avoid meridian flips

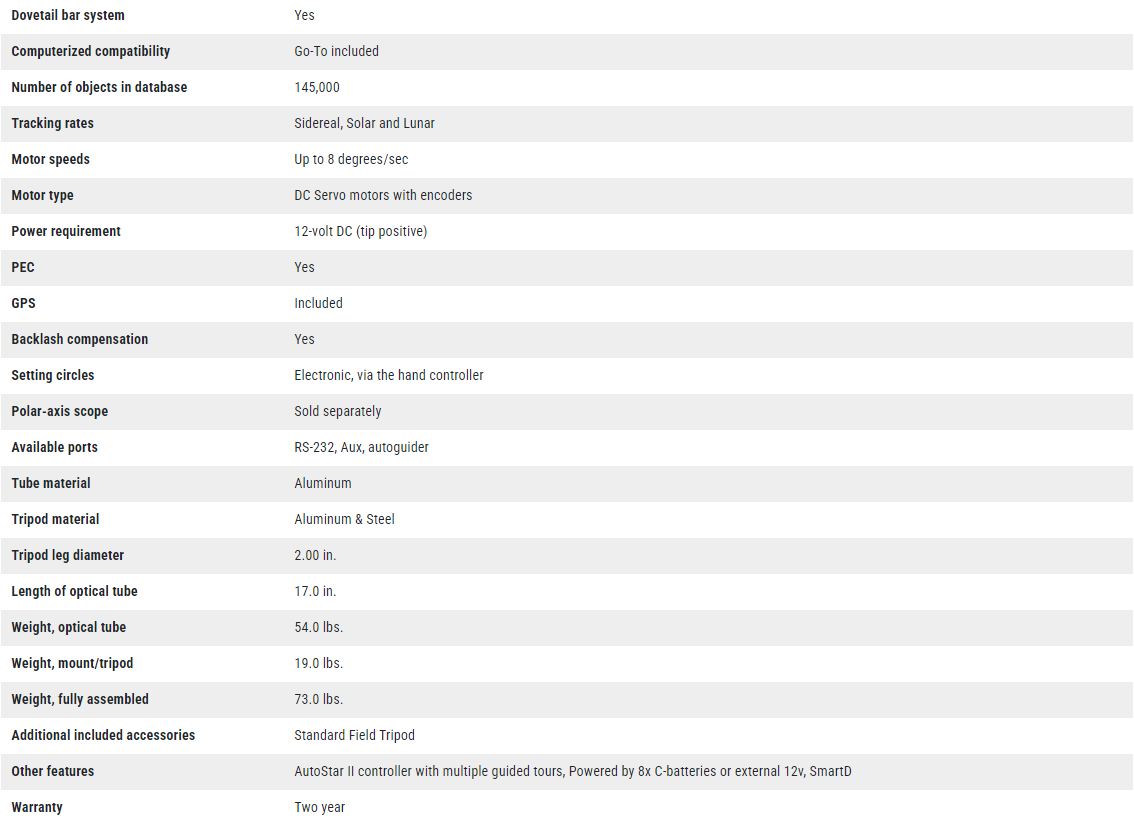

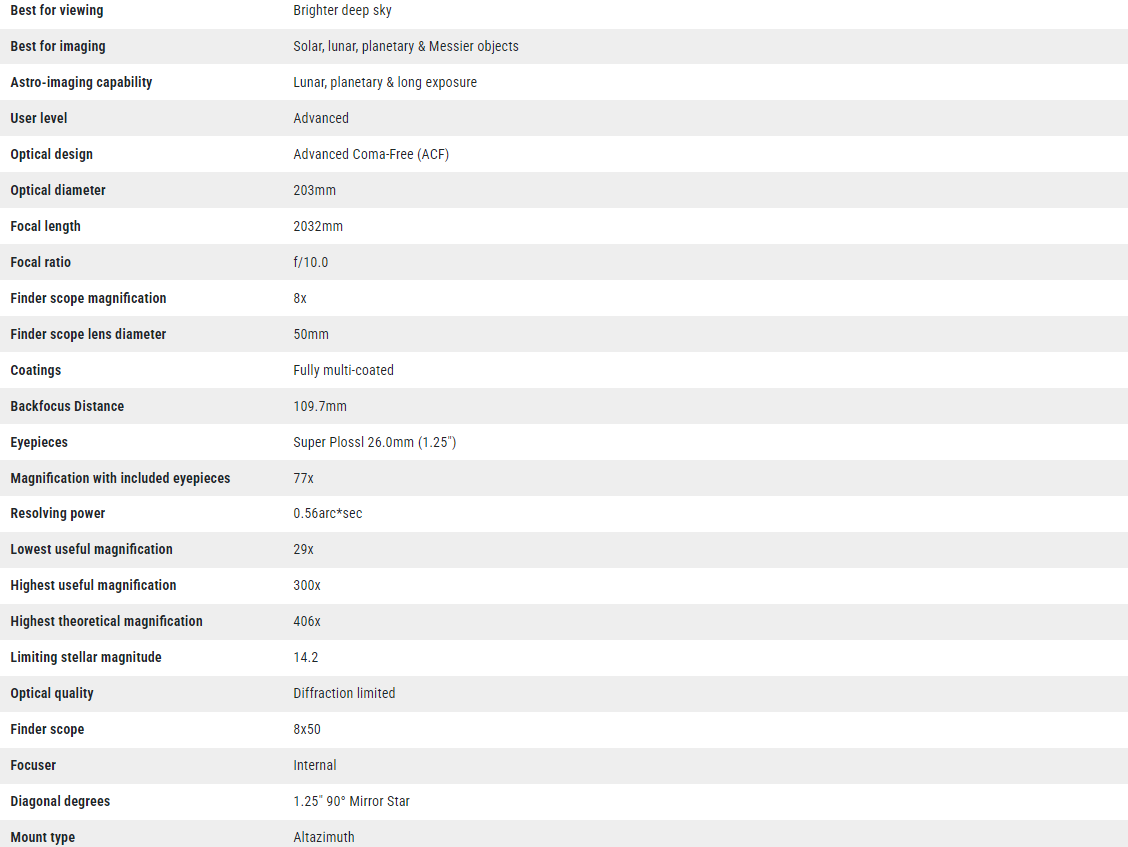

Specifications:

Weight:

• Optical tube and fork base assembly: 54 lbs
• Standard Field Tripod: 19 lbs
• Assembled telescope: 73 lbs

Mechanical Advantages:

• Robust fork arms for minimal vibrations
• Slow-motion controls for manual adjustments
• Ergonomic handles for easy setup and breakdown

Advanced Electronics:

• AutoStar II computer system with extensive object library
• RS-232 PC interface, Autoguider port, illuminated reticle power, and 12v output power
• Powered by 8 C-cell batteries (user-supplied) or optional AC adapter

Designed and manufactured to exacting quality standards in North America, the Meade 8" f/10 LX200 ACF Telescope provides an exceptional experience for both visual observation and astrophotography. With its advanced features, high stability, and comprehensive accessories, it promises years of astronomical exploration and amazement. Whether you are setting it up in your backyard, a domed observatory, or taking it on a road trip to dark skies, the LX200 ACF delivers unparalleled performance and breathtaking views.
