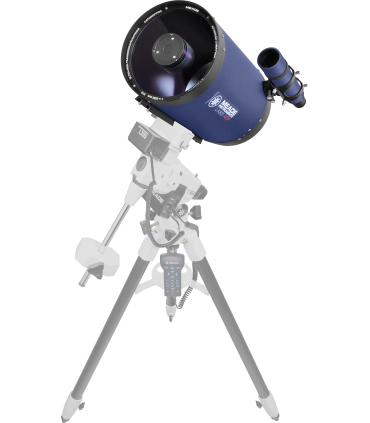

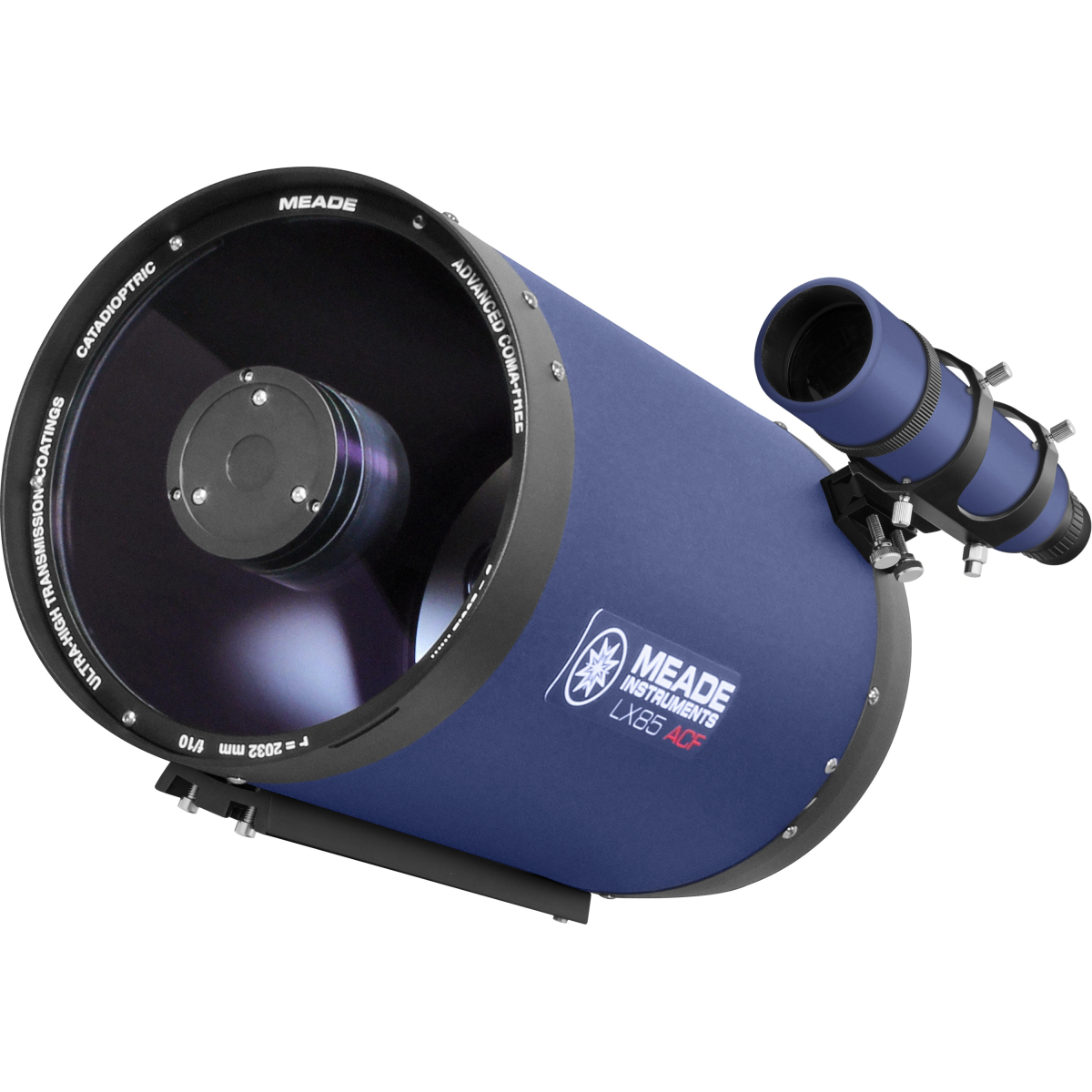

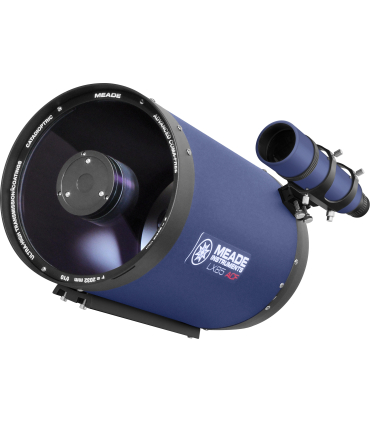

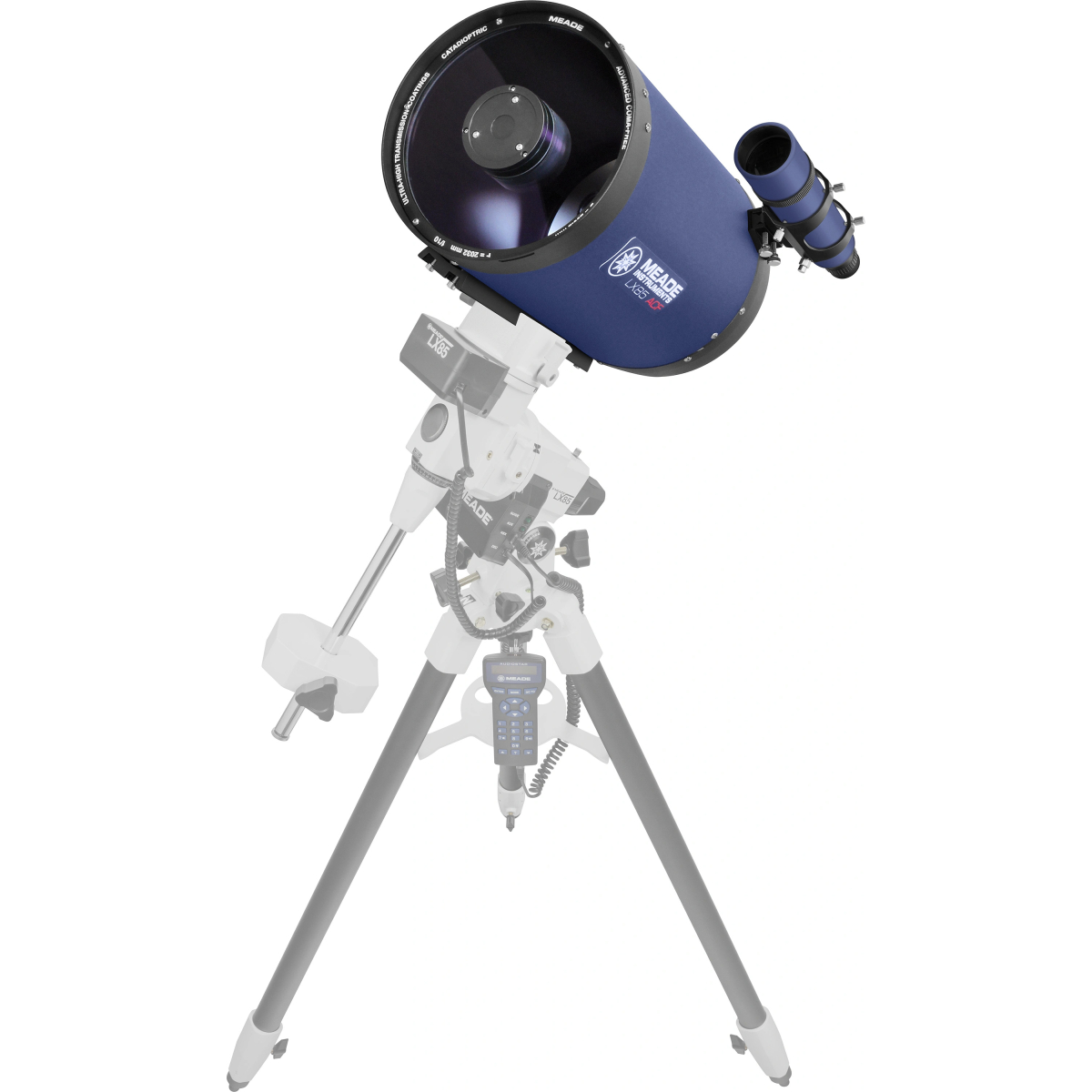

The Meade 8” f/10 LX85 ACF optical tube assembly combines a large aperture with a compact, portable design. It features a Vixen-style dovetail bar for easy attachment to compatible mounts, making it an excellent choice for amateur astronomers and astrophotographers.
Key Features:
Optical System:

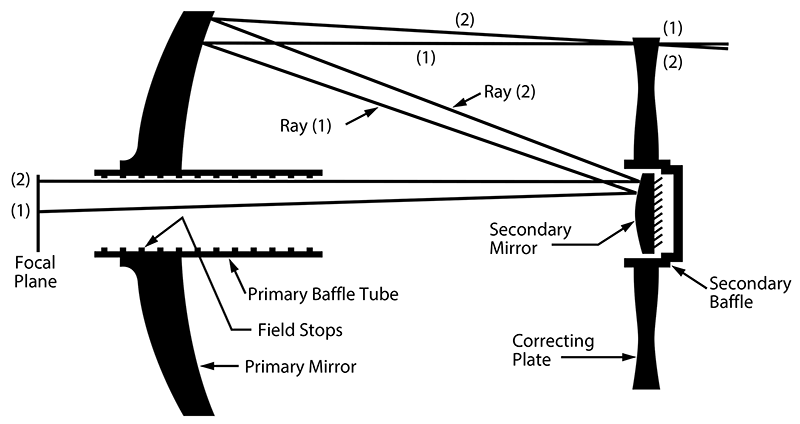

Advanced Coma-Free (ACF) optics
Ultra-High Transmission Coatings (UHTC)
Oversized low-expansion Borosilicate primary mirror
Glass corrector plate
Diffraction-limited optics for superior image quality
Performance:
Aplanatic optics for a flatter field and reduced astigmatism
No diffraction spikes, unlike reflector designs
Designed and manufactured in North America
ACF primary, secondary, and corrector plate glass blanks made in the USA
Astrophotography:
Ideal for high-resolution planetary and lunar photography
Compatible with Meade ACF 0.68x Focal Reducer for deep space imaging
Focal reducer converts f/10 ACF to f/6.8 and f/8 ACF to f/5.5
Shortens exposure times and expands the field of view

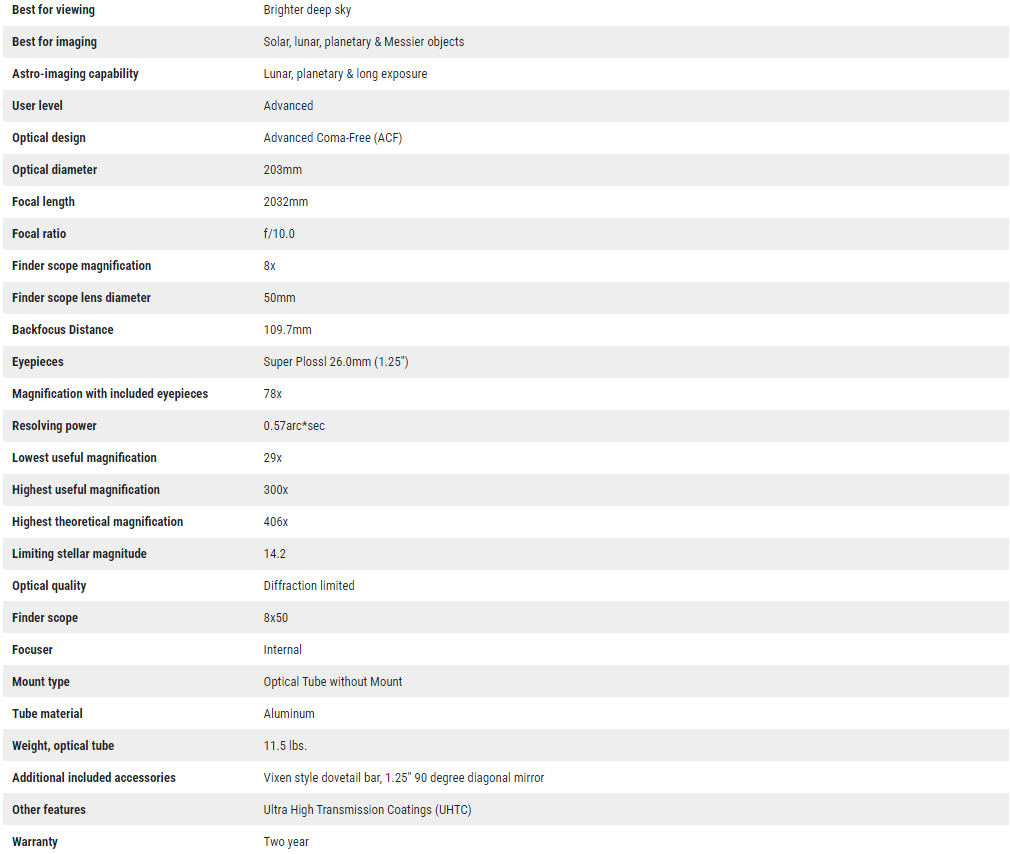

Specifications:
8" (203mm) aperture
2032mm focal length
f/10 focal ratio
Internal single speed focuser
UHTC coatings enhance image brightness and contrast
Weight: 11.5 lbs (5.2kg)
Dimensions: 460mm length x 250mm diameter
Includes a 1.25" 26mm Super Plössl eyepiece and an 8x50 optical finder scope
The Meade 8” f/10 LX85 ACF offers impressive optical performance with its advanced features and coatings, making it a powerful tool for both visual observation and astrophotography. Its portable design ensures ease of use, whether you're capturing stunning astrophotographs or enjoying detailed views of celestial objects.
