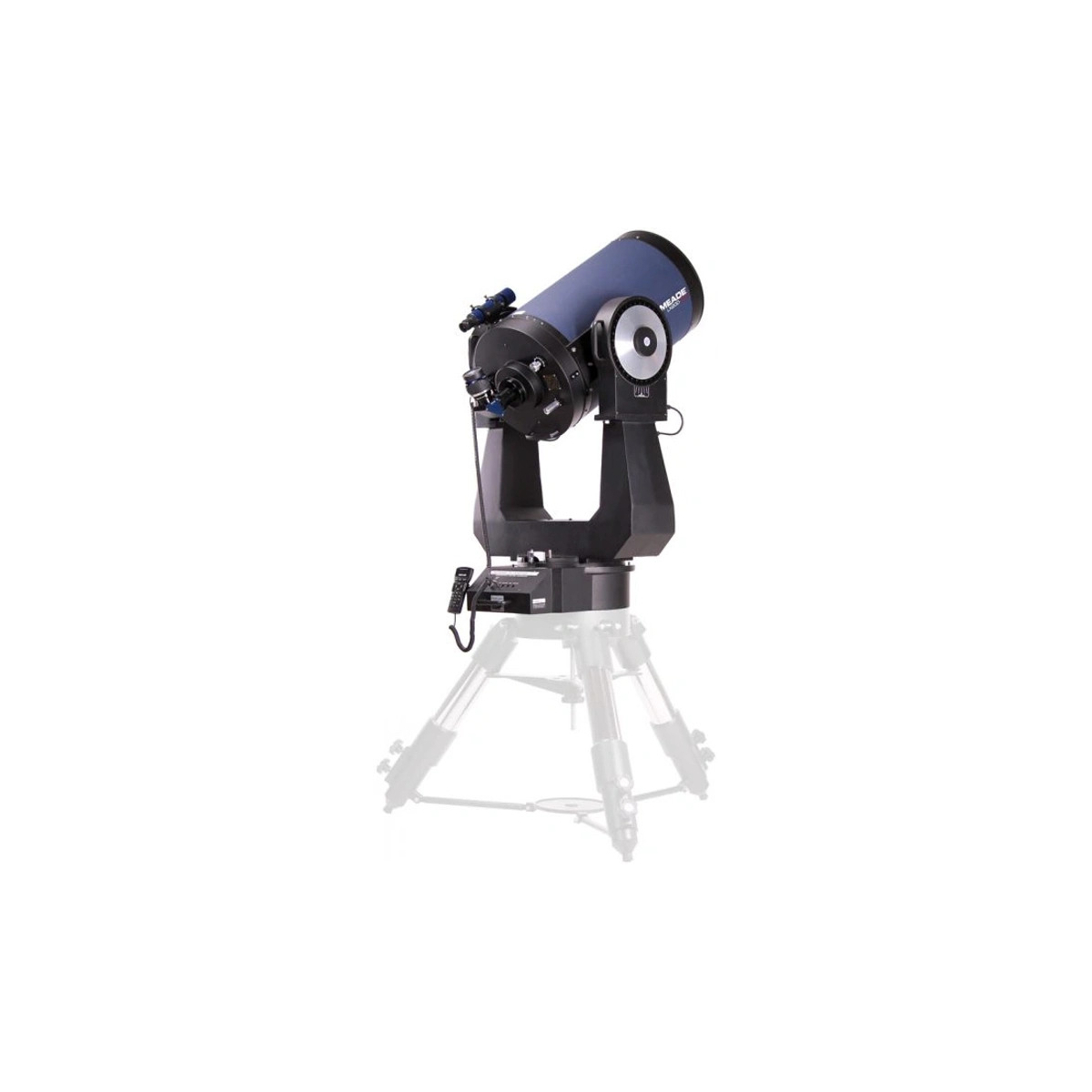

The Meade 16" f/10 LX200 ACF Telescope is a premier model in Meade's LX series of Alt/Az fork-mounted telescopes, offering exceptional performance with its massive aperture while remaining compact and transportable. Ideal for medium to large observatories, this telescope can also be set up in your backyard or at a remote dark-sky site with the included Super Giant Tripod. It disassembles into manageable parts for easier setup and transport, making it versatile for both permanent and temporary installations. The strong fork arms ensure stability, reducing vibrations for high-power planetary observations and long-exposure deep-sky imaging. The AutoStar II hand controller, with its extensive database and user-friendly interface, simplifies locating and tracking celestial objects.
Specifications
- Aperture: 16 inches
- Focal Length: 4064mm
- Focal Ratio: f/10
- Optics: Advanced Coma-Free (ACF) with Ultra-High Transmission Coatings (UHTC)
- Mount Type: Alt/Az Dual-Fork
- Weight:
- Optical Tube and Fork Base Assembly: 147 lbs (combined)
- Super Giant Tripod: 50 lbs
- Total Assembled Weight: 197 lbs
Key Features
Advanced Coma-Free Optics:
- Delivers flat fields of view with no coma, astigmatism, or diffraction spikes.
- UHTC enhances image brightness and contrast for superior visual and imaging performance.
Transportable Design:
- Disassembles for easier transport and setup.
- Suitable for permanent installations or field use with a manageable weight for large aperture size.
StarLock Automatic Guider:
- Automates target acquisition and guiding for astrophotography, eliminating the need for additional guide cameras.
Focusing System:
- Features a two-speed focus knob for precise focusing.
- Internal Crayford-style zero-shift focus mechanism ensures smooth, backlash-free adjustments.
Mechanical and Electronic Advantages
Robust Construction:
- Strong fork arms provide stability, minimizing vibrations during observations and imaging.
- Designed for easy setup with ergonomic handles and removable optical tube for transport.
Advanced Electronics:
- AutoStar II controller with 145,000-object library and multiple guided tours.
- High Precision GoTo Pointing and SmartDrive technology with Permanent Periodic Error Correction (PPEC).
Automatic Alignment:
- Utilizes a 16-channel GPS receiver for fast and accurate star alignment.
- Includes ports for RS-232 PC interface, Autoguider, and Microfocuser.
Optional Enhancements
Focal Reducer:
- Converts f/10 ACF to faster systems for deep-space imaging, expanding the field of view by 50%.
Permanent Piers:
- Optional altazimuth or equatorial piers for permanent installations, providing stability and saving space.
The Meade 16" f/10 LX200 ACF Telescope offers unparalleled optical quality and versatility, making it ideal for both amateur and professional astronomers interested in detailed planetary observation and deep-sky imaging. Its advanced features and sturdy design make it a reliable choice for exploring the wonders of the night sky from any location.
