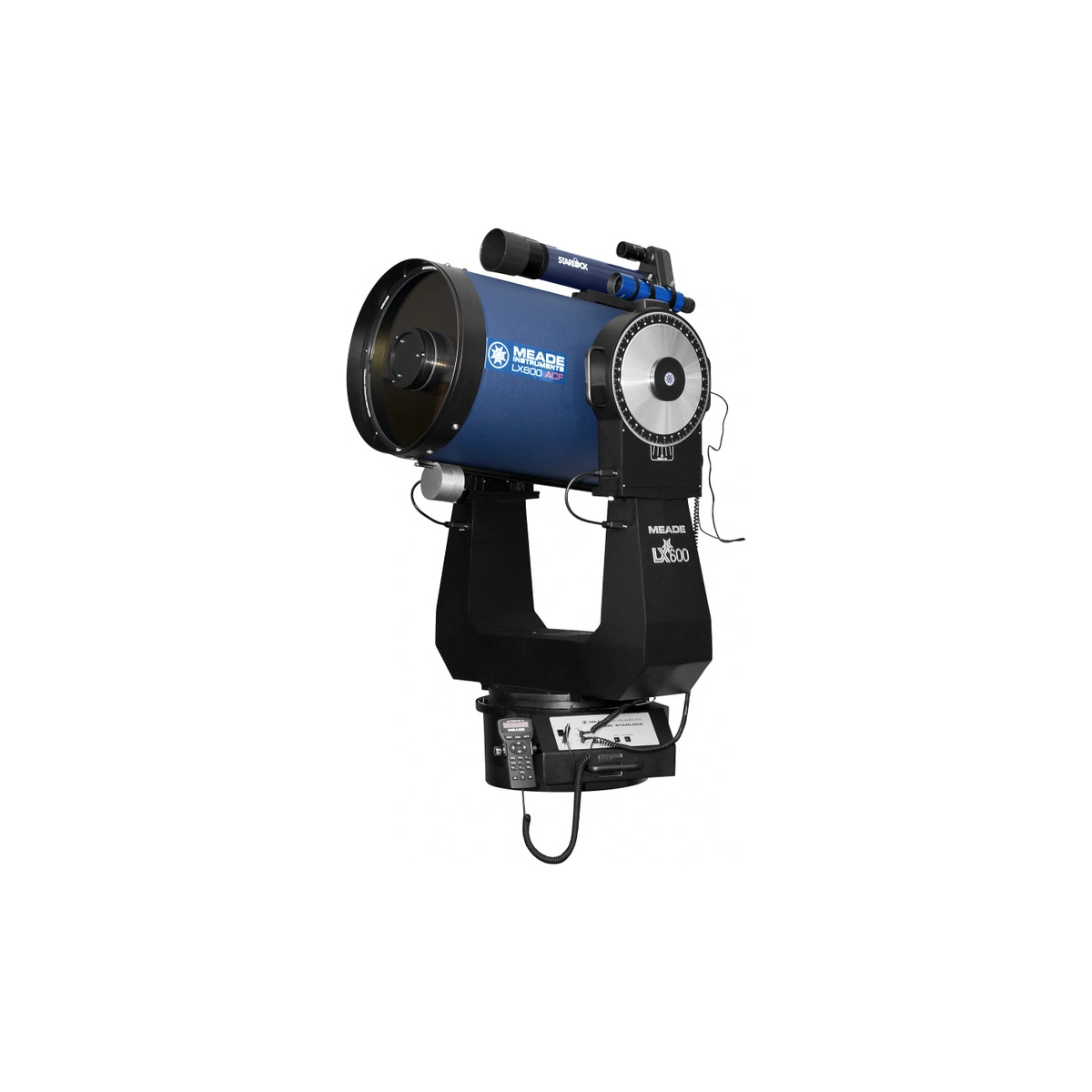

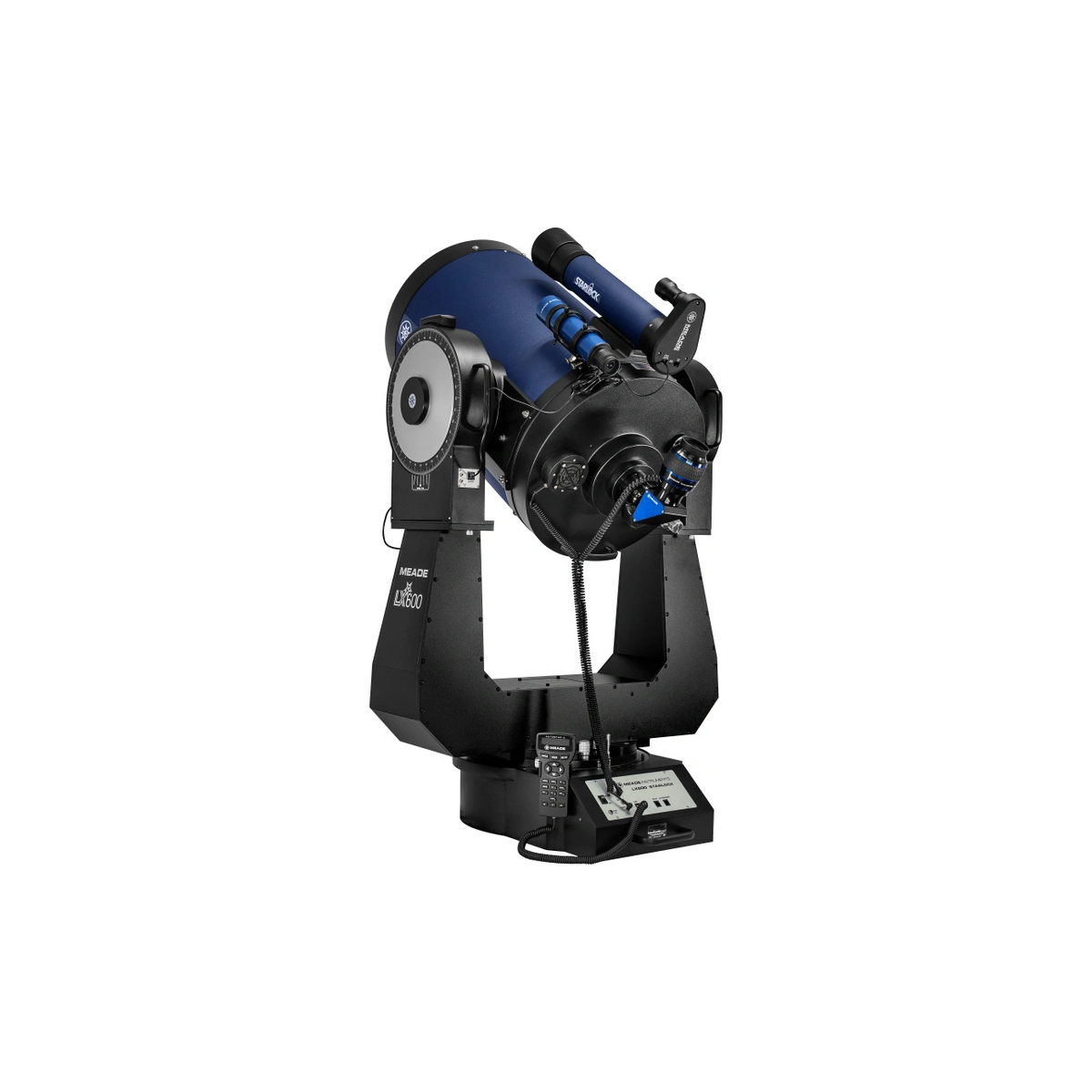

The Meade 16" f/8 LX600 ACF Telescope is the largest and most advanced telescope in Meade's LX series of Alt/Az fork-mounted telescopes. Designed for both medium and large-sized observatories, it offers a powerful platform for serious astronomical observation and astrophotography. Despite its large aperture, the LX600 16" is compact and manageable, suitable for permanent installations or transport to remote dark-sky locations.

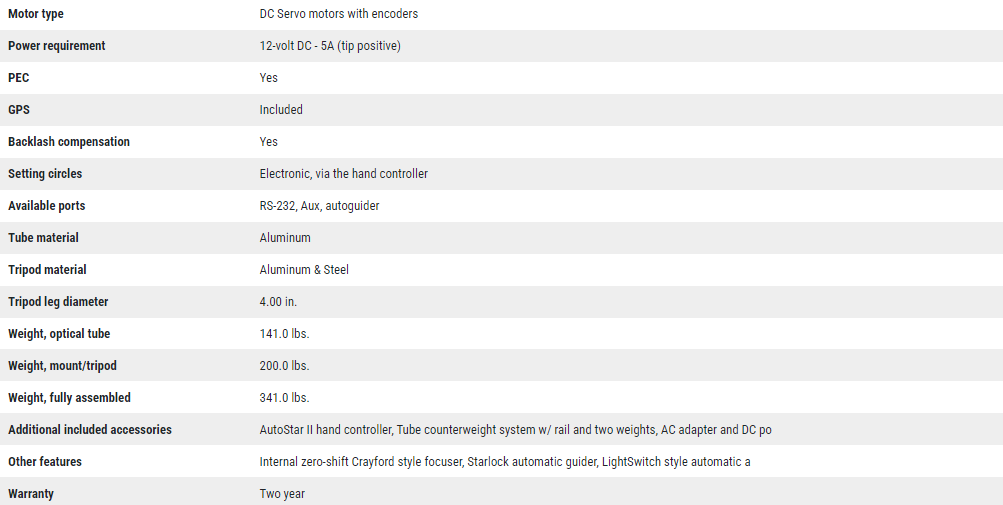

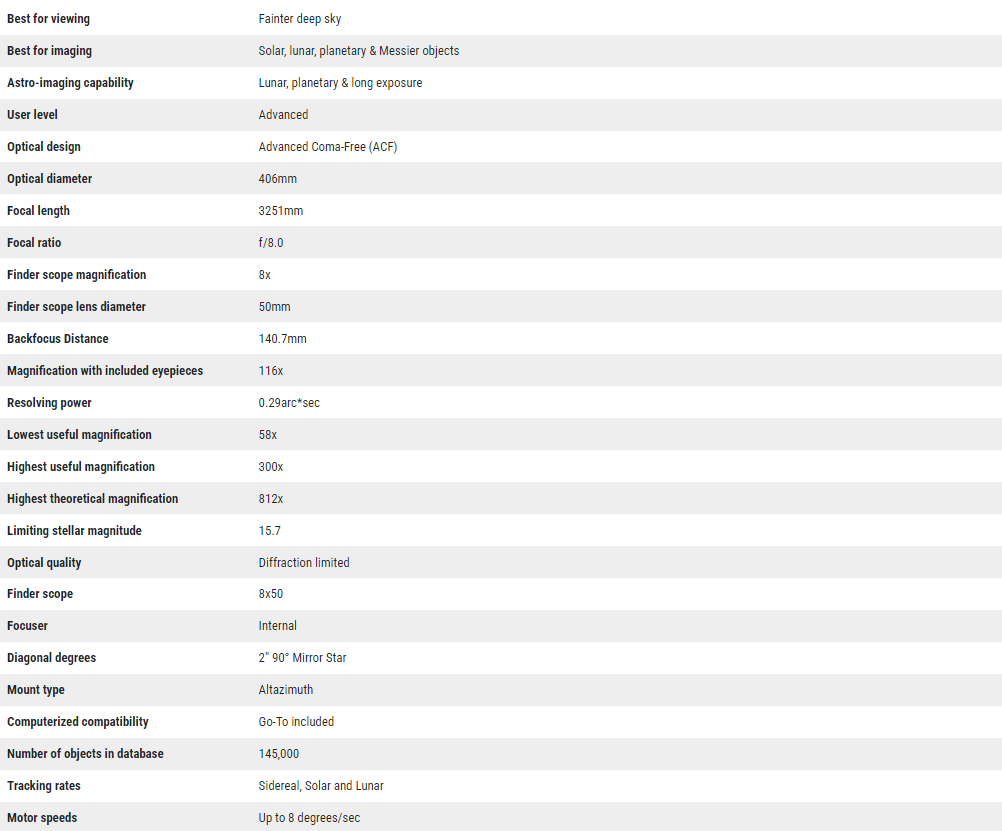

Specifications
- Aperture: 16 inches
- Focal Length: 3251mm
- Focal Ratio: f/8
- Optics: Advanced Coma-Free (ACF) with Ultra-High Transmission Coatings (UHTC)
- Mount Type: Alt/Az Dual-Fork
- Weight:
- Optical Tube with Upper Fork Assembly: 141 lbs
- Motor Mount and Lower Fork Arm Assembly: 119 lbs
- Giant Field Tripod: 81 lbs
- Total Assembled Weight: 341 lbs
Key Features
Advanced Coma-Free Optics:
- Provides flat fields of view with no coma, astigmatism, or diffraction spikes.
- UHTC enhances image brightness and contrast for detailed observations and imaging.
StarLock Automatic Guider:
- Integrated guider automates target acquisition and precise tracking for astrophotography.
- Dual CMOS sensors for wide-field auto-alignment and high-resolution autoguiding.

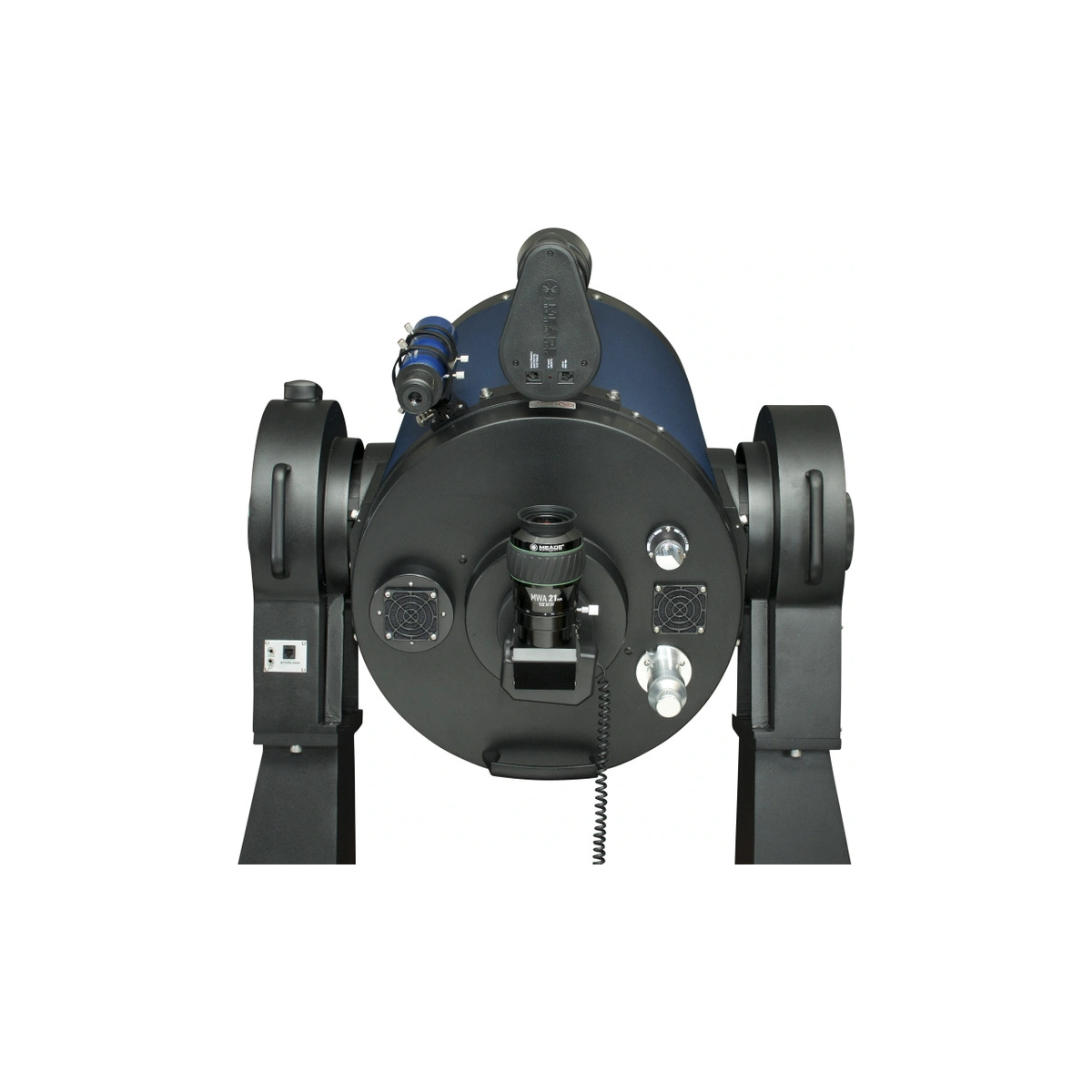

Precision Focusing System:
- Two-speed focus knob for coarse and fine adjustments.
- Internal Crayford-style zero-shift focus mechanism ensures smooth, backlash-free focusing.

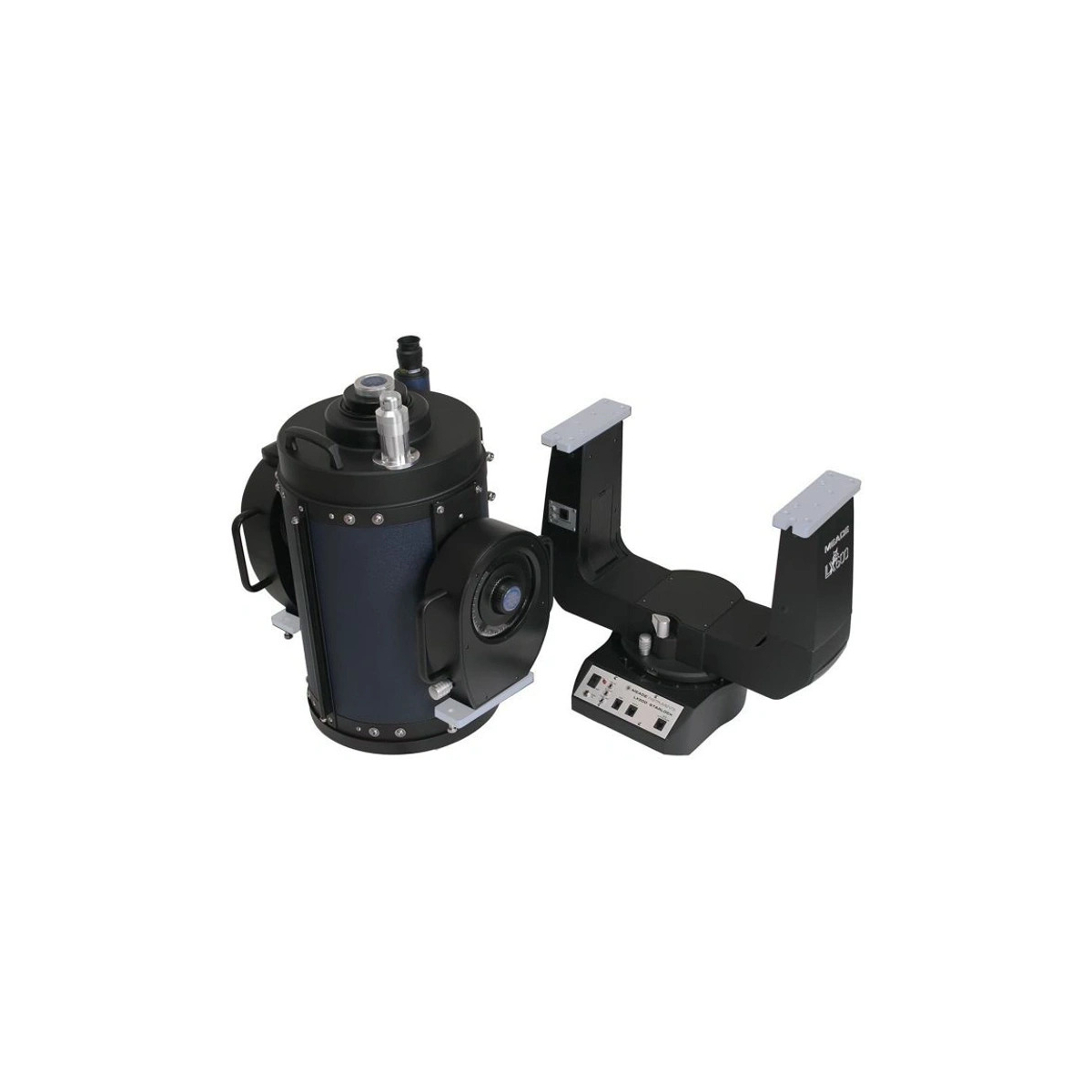

Robust Mechanical Design:
- Modular design allows for easy breakdown and transport.
- Ergonomically designed handles for easy setup and breakdown.
Versatile Mounting Options:
- Compatible with optional altazimuth or equatorial piers for permanent installations.
- Sliding counterweight system for optimal balance and tracking performance.
Advanced Electronics and AutoStar II System

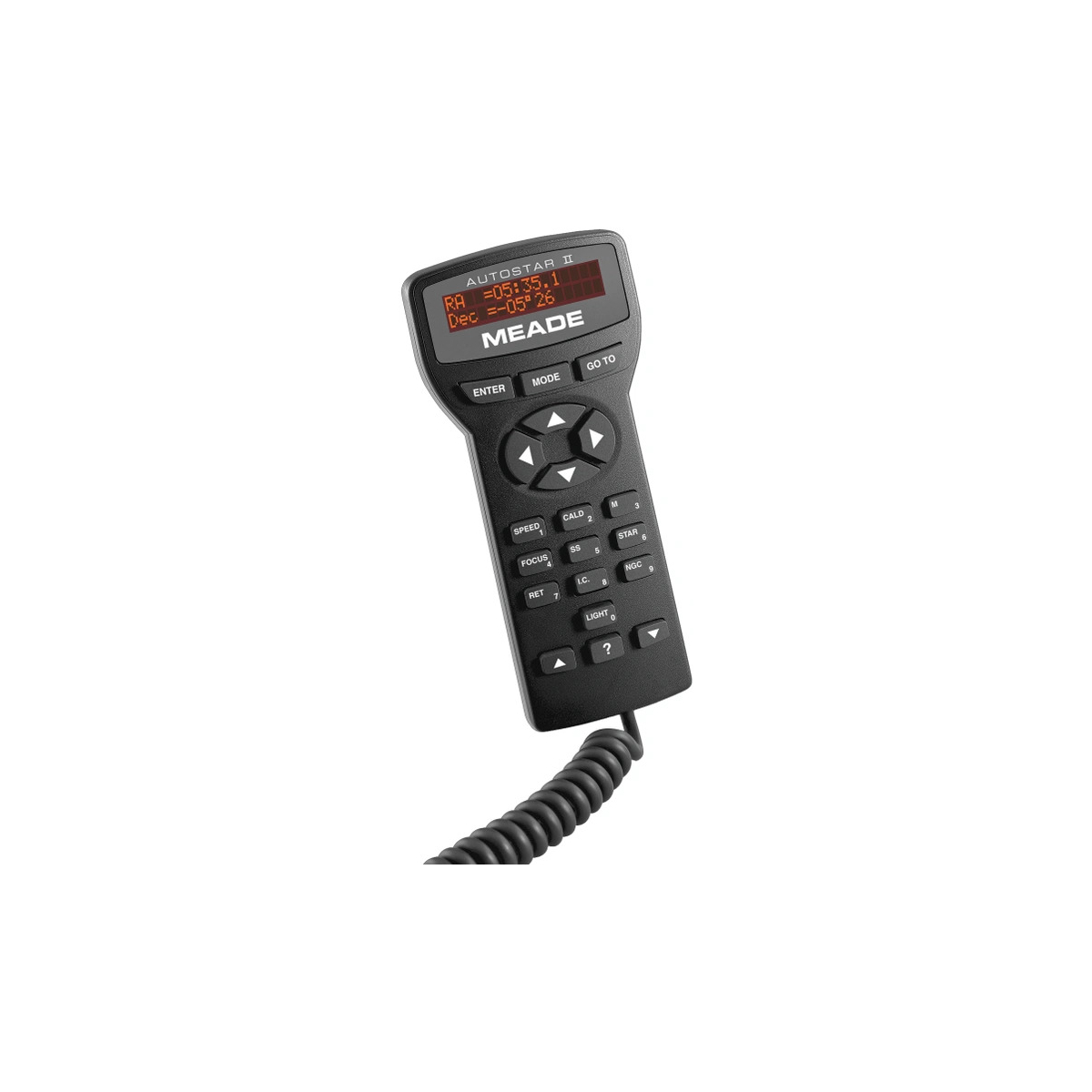

AutoStar II Controller:
- 145,000-object library with guided tours and High Precision GoTo Pointing capability.
- User-friendly interface with soft-touch keys and backlit LCD display.
SmartDrive Technology:
- Permanent Periodic Error Correction (PPEC) for accurate tracking.
- Fast 8° per second slewing to quickly locate celestial objects.

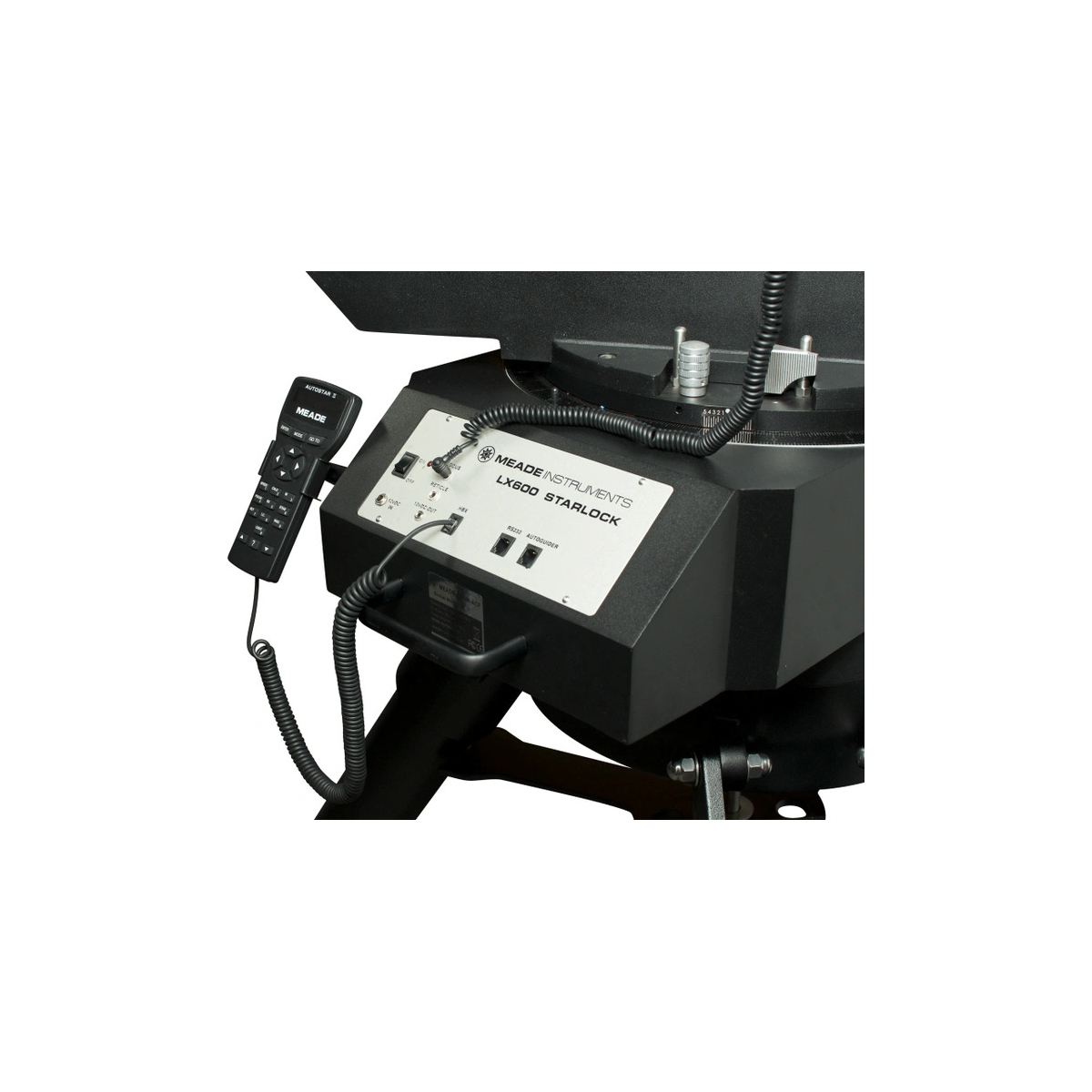

Comprehensive Connectivity:
- Multiple input/output ports, including RS-232 PC interface and Autoguider port.
- Powered by a 12v DC 5-amp Universal Power Supply with mechanical locks and manual controls.
Quality Manufacturing
North American Manufacturing:
- Designed and manufactured to high quality standards in North America.
- Precision engineering with a focus on durability and performance.
The Meade 16" f/8 LX600 ACF Telescope is ideal for those seeking a high-performance telescope for both visual observation and astrophotography. With its advanced optics, robust mount, and comprehensive features, this telescope provides exceptional capabilities for exploring the night sky. Whether used in a permanent observatory or transported to remote locations, the LX600 delivers unparalleled astronomical experiences.
