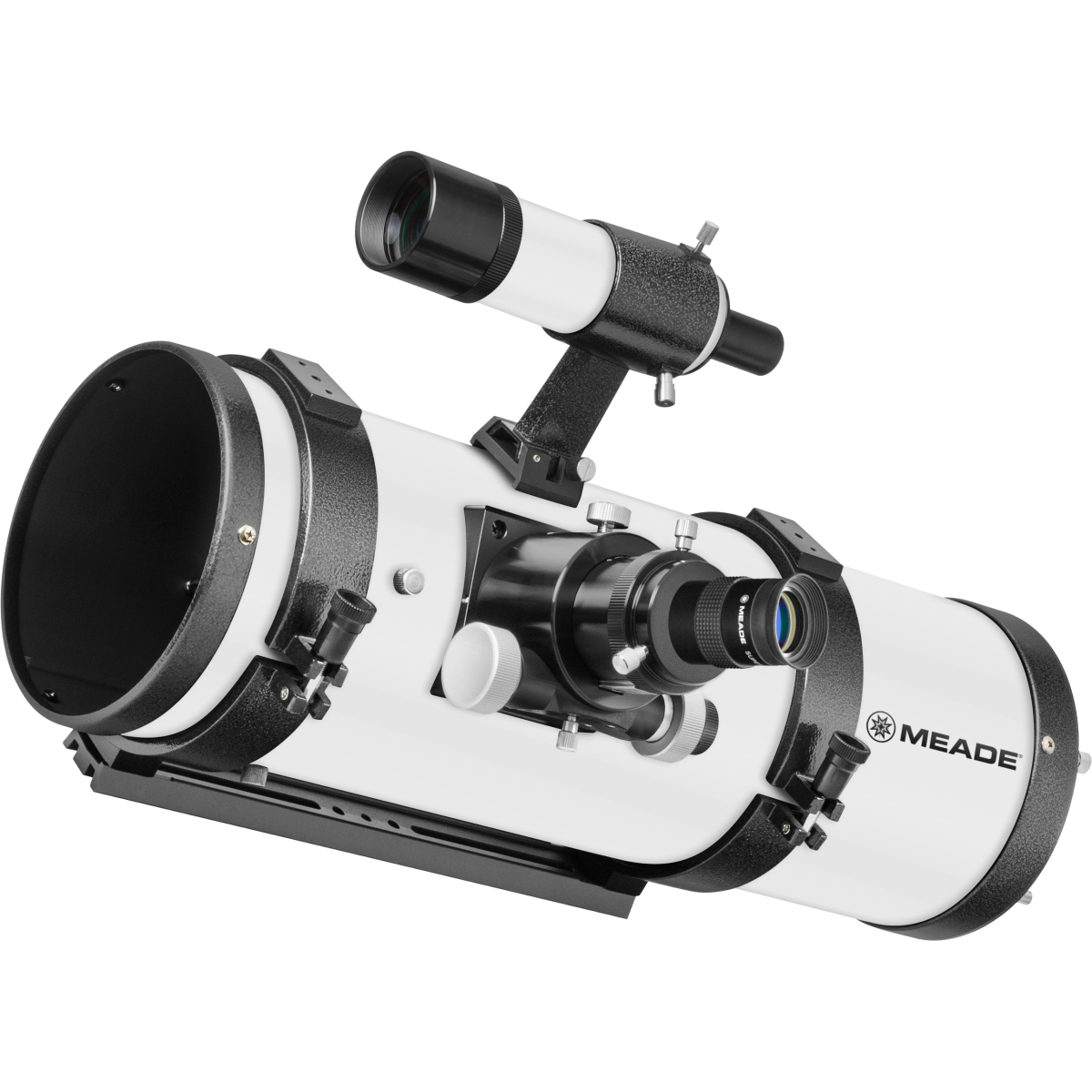

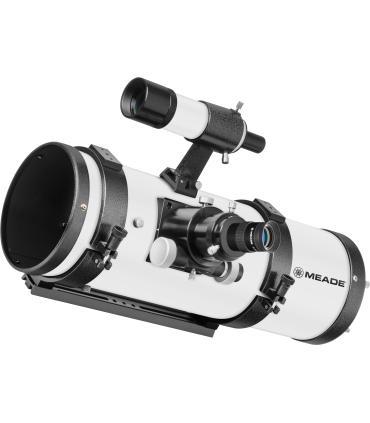

The Meade 6" f/4.1 LX85 Astrograph Reflector is a compact and versatile telescope designed for both visual observation and astrophotography. With its wide field of view and fast f/4.1 optical system, it is well-suited for capturing high-resolution images of deep-sky objects with short exposure times. Lightweight and compatible with most Vixen-style mounts, it is ideal for amateur astronomers looking for portability and performance.

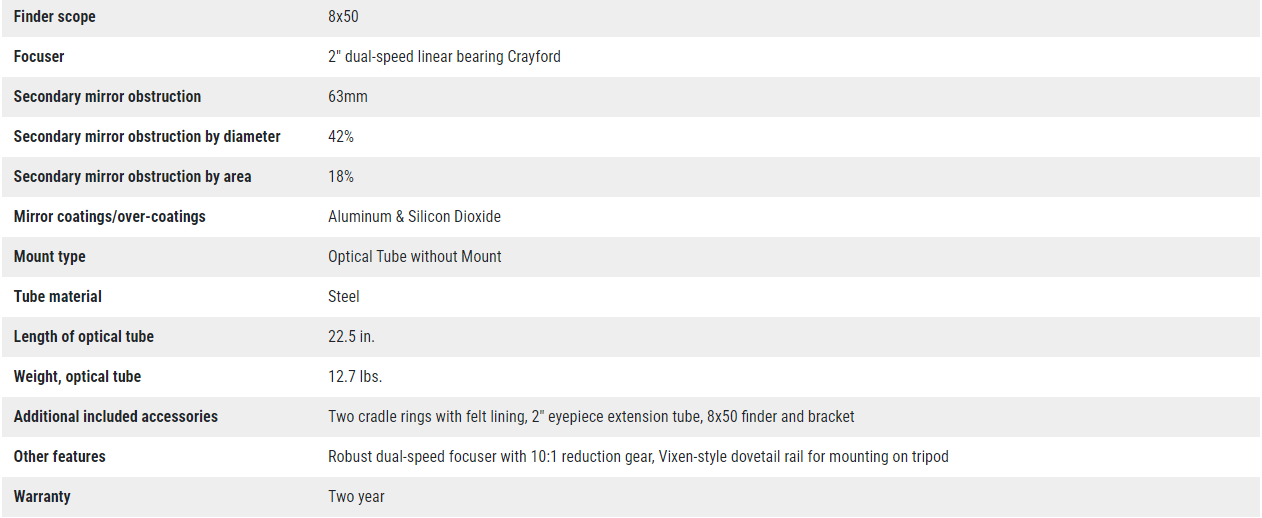

Specifications:
Aperture: 6 inches (152mm)
Focal Length: 610mm
Focal Ratio: f/4.1
Optics: Parabolic Primary Mirror
Focuser: 2" Linear Bearing Crayford with 10:1 fine focus knob
Weight: 12.7 lbs
Key Features:
Wide Field of View: The 610mm focal length provides a wide field, perfect for framing large deep-sky objects like the Andromeda Galaxy and Orion Nebula.
High-Quality Focuser: The 2" Crayford focuser includes a 10:1 reduction fine focus knob and brass compression rings for secure attachment of eyepieces and camera adapters.
Compatibility: Designed to reach focus with DSLR cameras and other imaging accessories, with a long 77mm back-focus for flexibility.
Astrophotography Advantages:
Fast Optical System: The f/4.1 ratio allows for shorter exposure times, capturing detailed images of the night sky efficiently.
Optional Coma Corrector: Recommended for eliminating coma when using low-power eyepieces or larger camera sensors, enhancing image clarity.
Included Accessories:
Eyepiece: 26mm Super Plössl eyepiece
Finder Scope: 8x50 finder scope
Additional Tools: Hinged tube rings, Vixen-style dovetail rail, and a 2" to 1.25" eyepiece adapter.
Design and Usability:
Lightweight and Portable: Weighing only 12.7 lbs, it is easy to transport and fits most Vixen-compatible Alt-Az or EQ mounts.
Visual and Imaging Versatility: Comes with a 35mm eyepiece extension tube for compatibility with most 2" and 1.25" eyepieces, allowing both visual and photographic use.
The Meade 6" f/4.1 LX85 Astrograph Reflector is an excellent choice for astronomers who want a high-quality, portable telescope capable of both visual observations and astrophotography. Its advanced optical design and comprehensive accessories make it ideal for exploring the night sky, whether capturing breathtaking images or enjoying stunning views of celestial objects.
