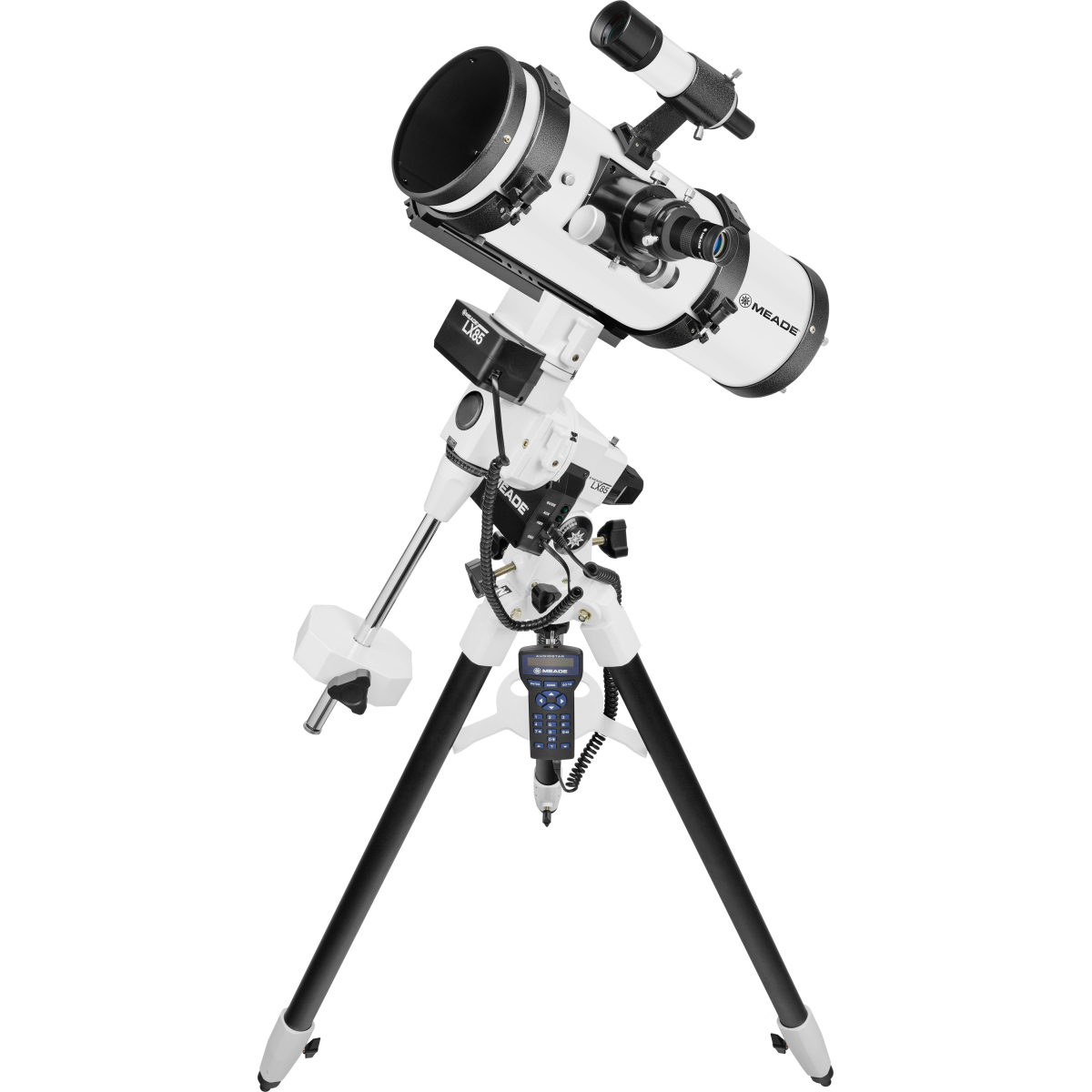

The Meade 6" f/4.1 LX85 Astrograph Reflector Telescope is a compact, wide-field telescope mounted on the versatile LX85 Equatorial GoTo Mount. Designed for both visual observation and astrophotography, it offers high-resolution imaging of the night sky with short exposures. The telescope is ideal for capturing stunning views of deep-sky objects like the Andromeda Galaxy and the Orion Nebula.

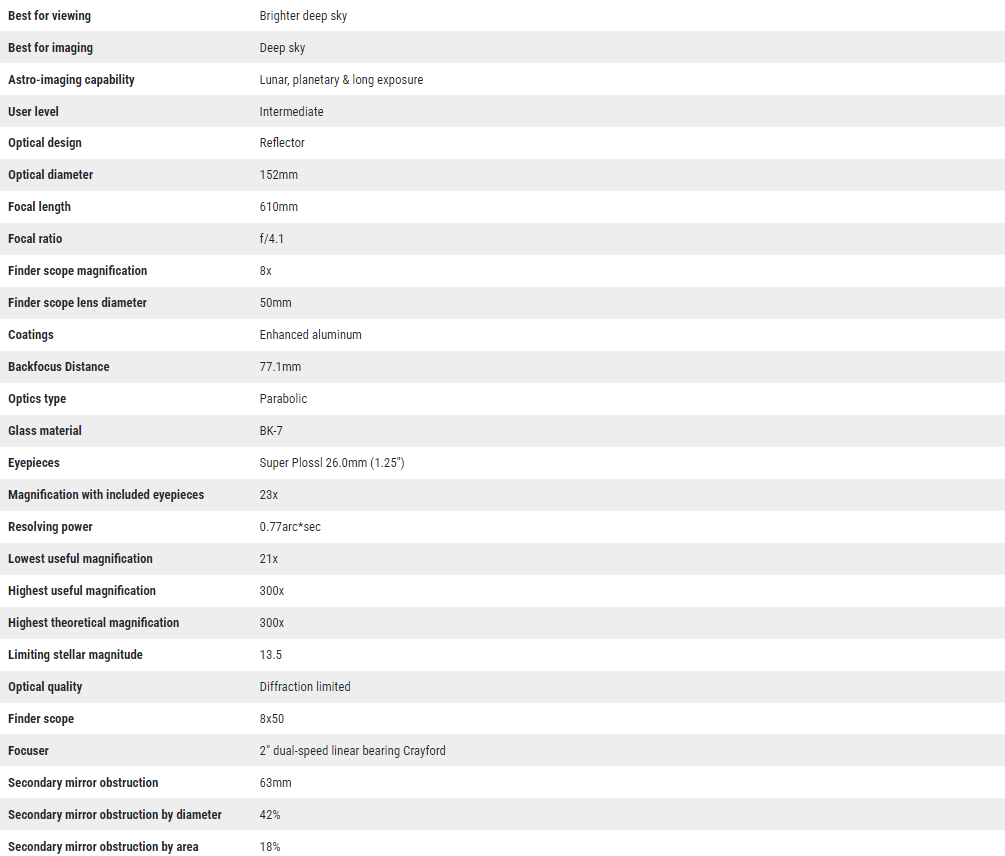

Specifications:
Aperture: 6 inches (152mm)
Focal Length: 610mm
Focal Ratio: f/4.1
Optics: Astrograph Reflector
Focuser: 2" Linear Bearing Crayford with 10:1 fine focus knob
Mount Type: LX85 Equatorial GoTo Mount
Weight: 46.8 lbs fully assembled
Key Features:
Wide Field of View: The fast f/4.1 optical system provides a wide field of view, perfect for framing large deep-sky objects.
High-Quality Focuser: Features a 10:1 reduction fine focus knob, brass compression rings, and a 2" to 1.25" step-down adapter for precise focusing.

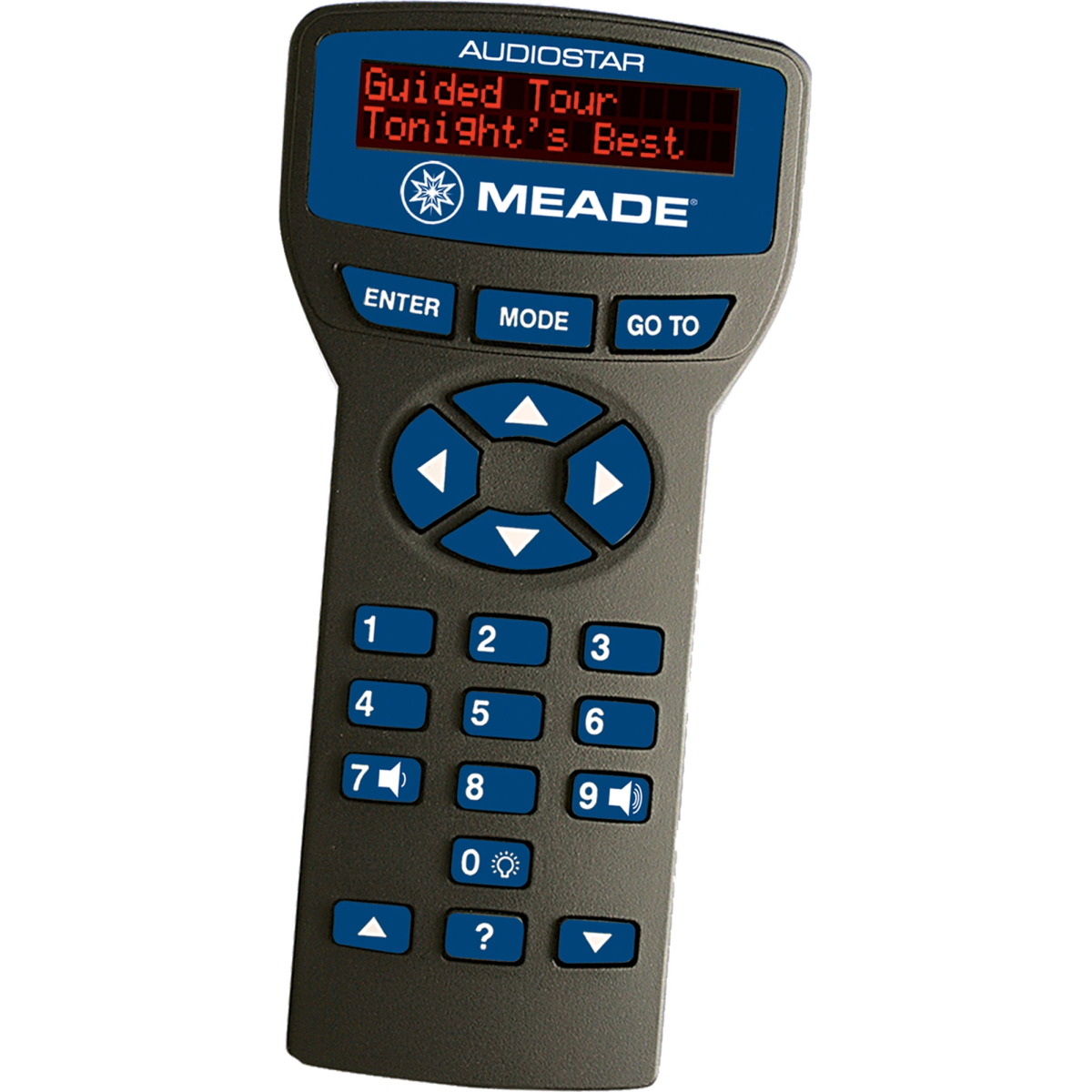

AudioStar GoTo Controller: Offers access to over 30,000 celestial objects with push-button ease, including guided tours and educational audio content.
Astrophotography Advantages:
Compact and Portable: Lightweight design makes it easy to transport to dark sky sites for astrophotography.
Advanced Tracking: Low-cog servo motors and Smart Drive technology ensure smooth tracking and guiding, with permanent periodic error correction (PPEC) for improved accuracy.
Mechanical and Electronic Features:
LX85 Mount Stability: The German equatorial mount supports up to 33 lbs, with 2"-diameter stainless steel legs for stability and a Vixen-style dovetail cradle.
Versatile Use: Suitable for both visual observation and astrophotography, with precise polar alignment to prevent field rotation during long exposures.
Advanced Guiding: Backlash compensation and adjustable slewing speeds enhance tracking precision.
Included Accessories:
Eyepiece: 26mm (23x) Super Plössl eyepiece
Finder Scope: 8x50 viewfinder with crosshairs
Additional Tools: 2" eyepiece extension tube, hinged tube rings, Vixen-style dovetail rail, tripod accessory tray, 25' DC power cable, one 9-lb counterweight, and AutoStar Suite software download.
Design and Usability:
User-Friendly Setup: Easy star alignment with AudioStar, intuitive menus, and a two-line illuminated LCD screen for efficient observing.
Optional Coma Corrector: Recommended for eliminating coma in low-power eyepieces or larger camera sensors.
The Meade 6" f/4.1 LX85 Astrograph Reflector Telescope is a powerful and portable instrument for both amateur and experienced astronomers. Its advanced optics and versatile mount make it ideal for capturing breathtaking astrophotographs or enjoying visual observations of the universe. Whether from your backyard or a remote dark-sky site, this telescope provides an exceptional stargazing experience.
