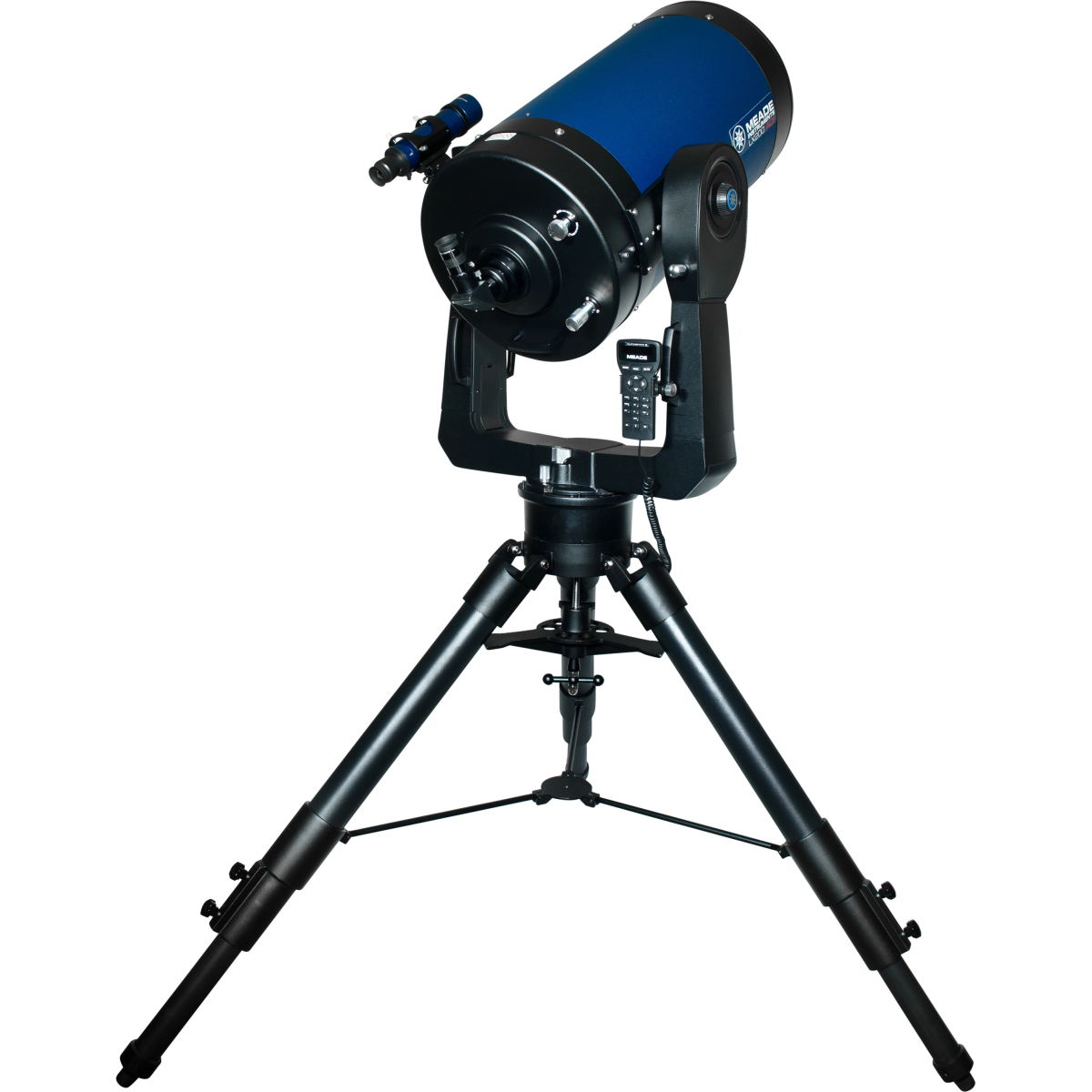

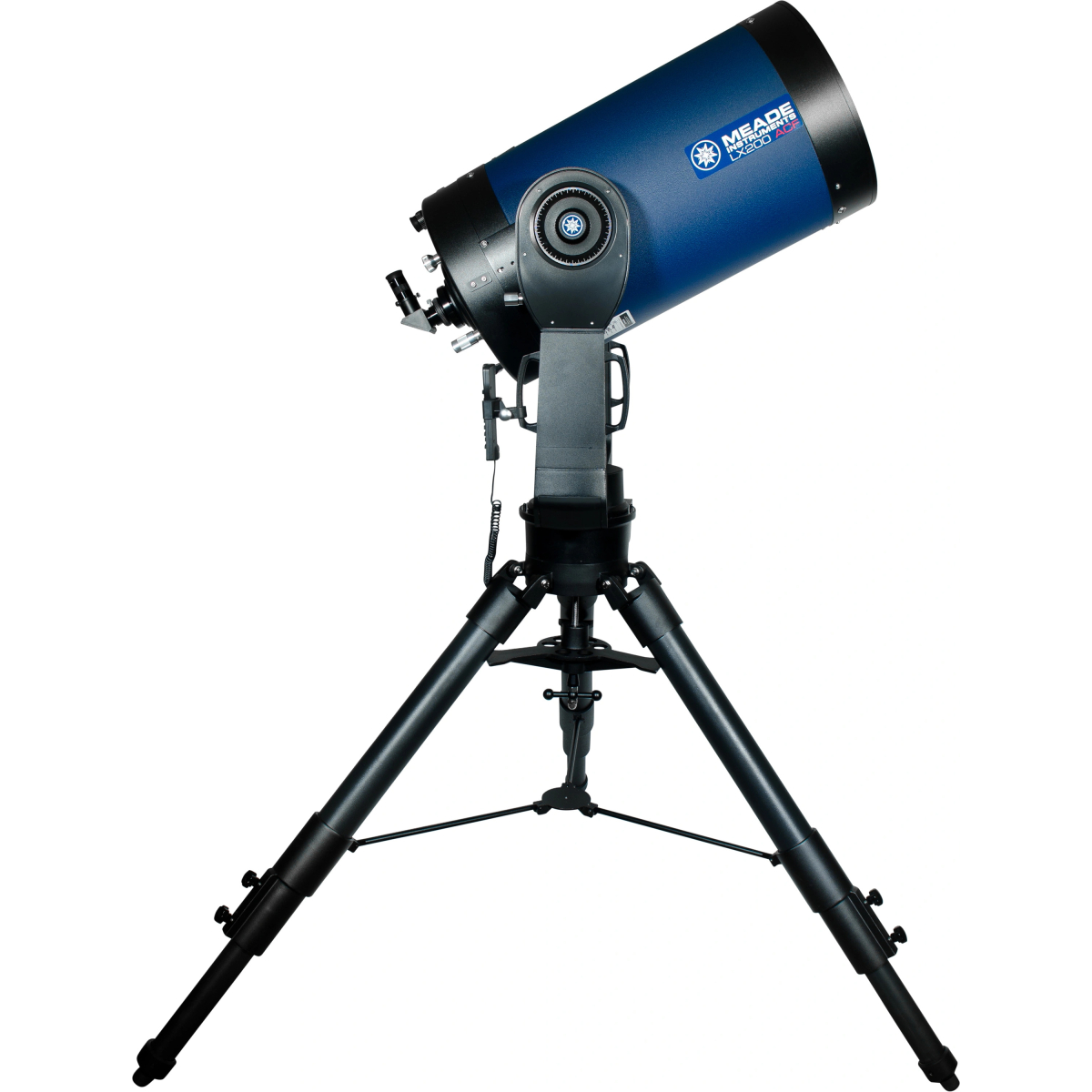

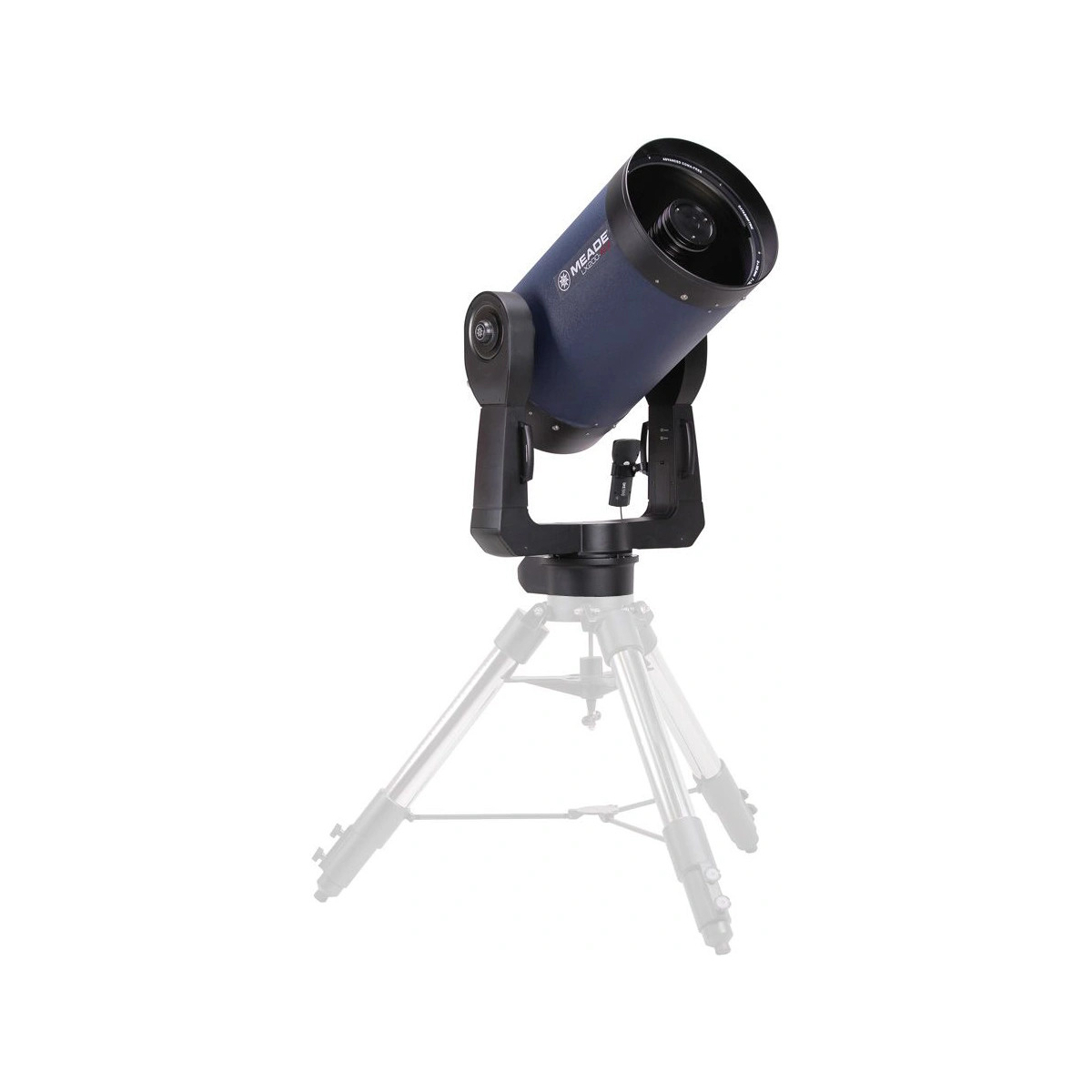

The Meade 14" f/10 LX200 ACF Telescope is a highly regarded model in Meade's LX series, offering exceptional optical quality and versatility. Despite its large aperture, the telescope is compact enough for easy setup in backyards, medium-sized observatories, or even for transport to dark sky sites. It is designed for both visual observation and astrophotography, providing advanced features for a comprehensive stargazing experience.

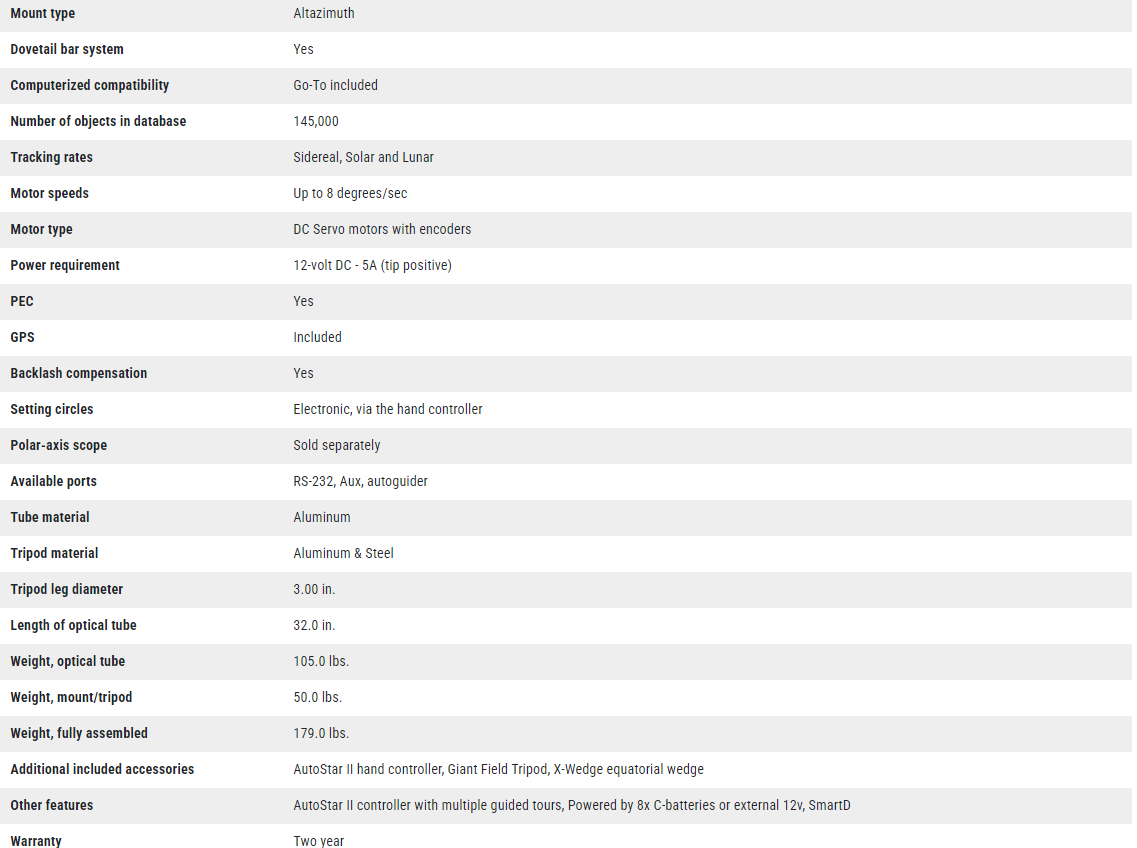

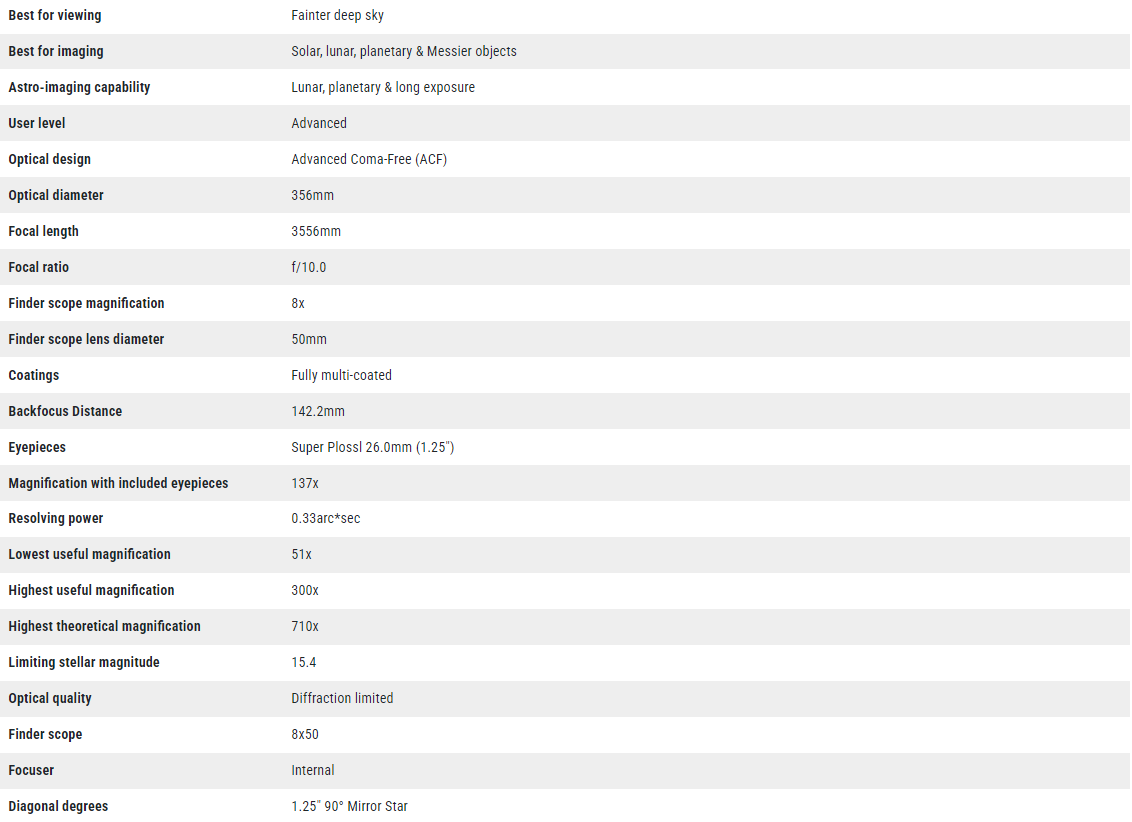

Specifications:
Aperture: 14 inches
Focal Length: 3556mm
Focal Ratio: f/10
Optics: Advanced Coma-Free (ACF)
Coatings: Ultra-High Transmission Coatings (UHTC)
Mount Type: Dual-Fork Alt/Az with optional equatorial configuration
Weight: 179 lbs assembled
Included Accessories: Series 4000 26mm Super Plössl eyepiece (117x), 8x50 optical viewfinder, 1.25" diagonal mirror, Giant Field Tripod
Key Features:
Advanced Optics: ACF optics deliver flat fields of view with no coma, reduced astigmatism, and elimination of diffraction spikes, making them ideal for visual and astrophotographic purposes.

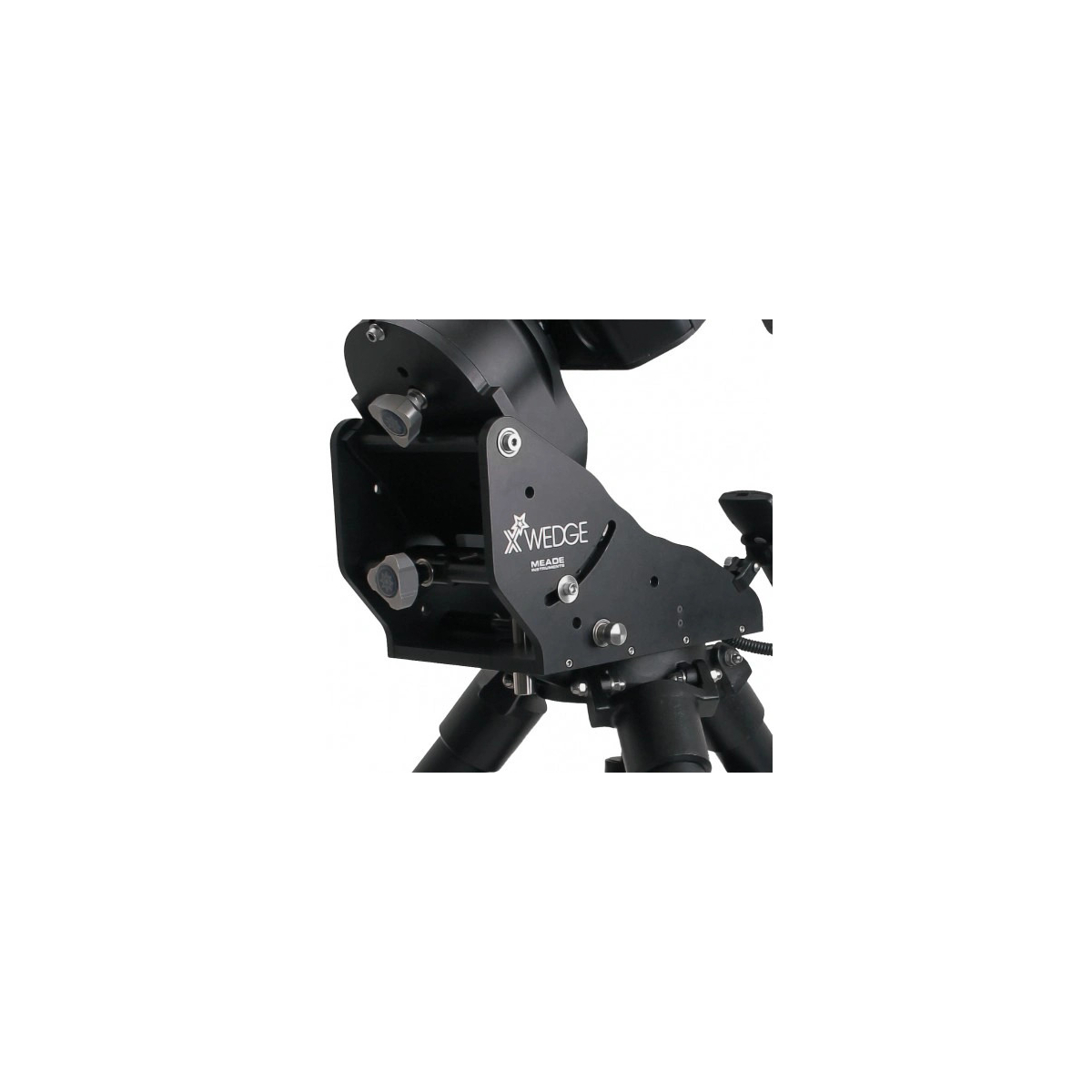

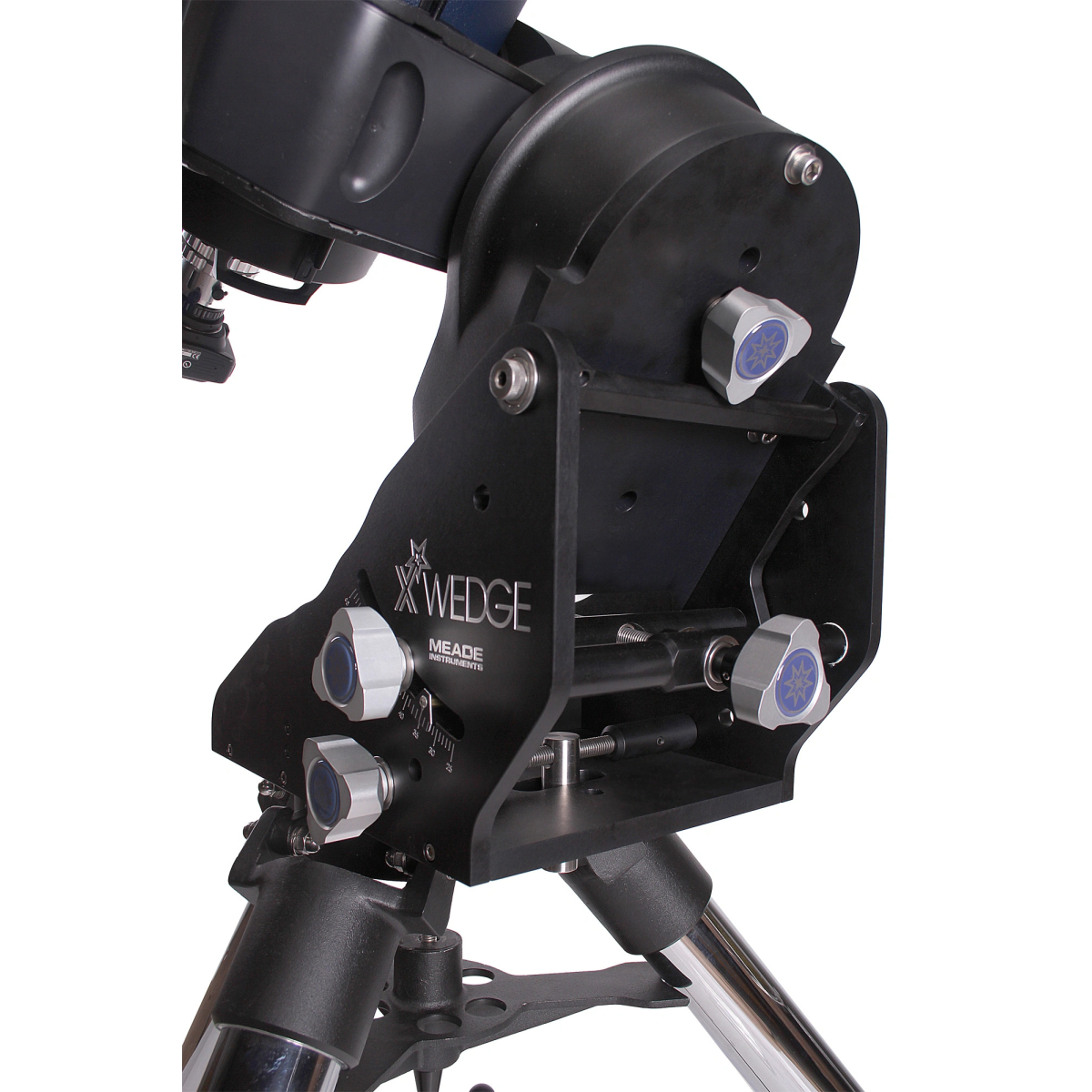

Equatorial Wedge: The included X-Wedge allows conversion from Alt-Az to equatorial configuration, facilitating long-exposure astrophotography by providing precise polar alignment and eliminating field rotation.

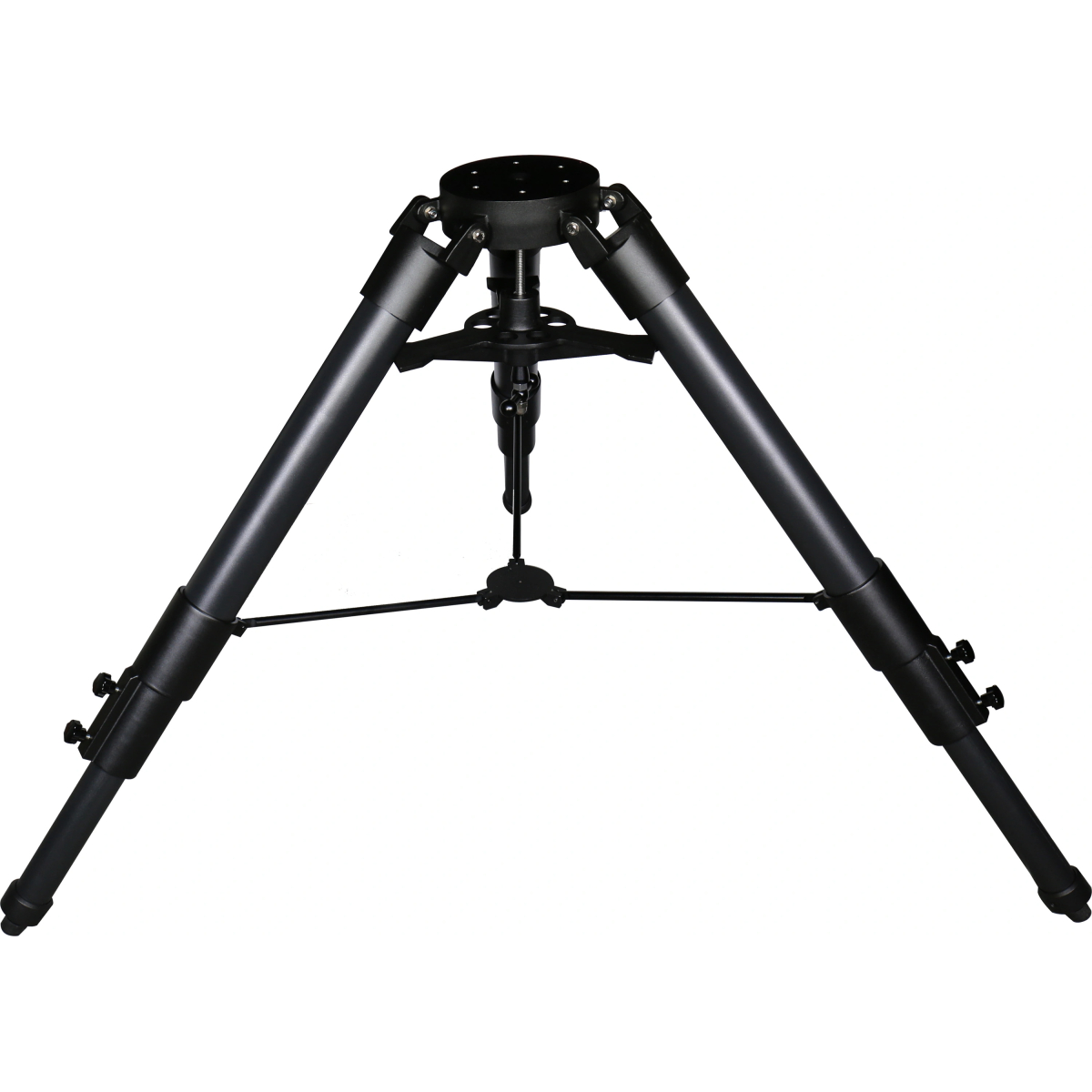

Stable Tracking: The robust fork arms and Giant Field Tripod provide a stable platform for high-power planetary observation and long-exposure imaging.
Astrophotography Advantages:
High-Resolution Imaging: Excellent for capturing detailed images of planets and the Moon with a DSLR or astro camera.
Optional Focal Reducer: Converts f/10 ACF to f/6.8, optimizing the telescope for deep space imaging by reducing exposure times and expanding the field of view by nearly 50%.
Mechanical and Electronic Features:
Focus Lock System: Prevents mirror movement during observations and imaging sessions, maintaining image stability.
Enhanced Motor Drive: Features faster slewing speeds of up to 8 degrees per second and Smart Drive technology for accurate tracking.

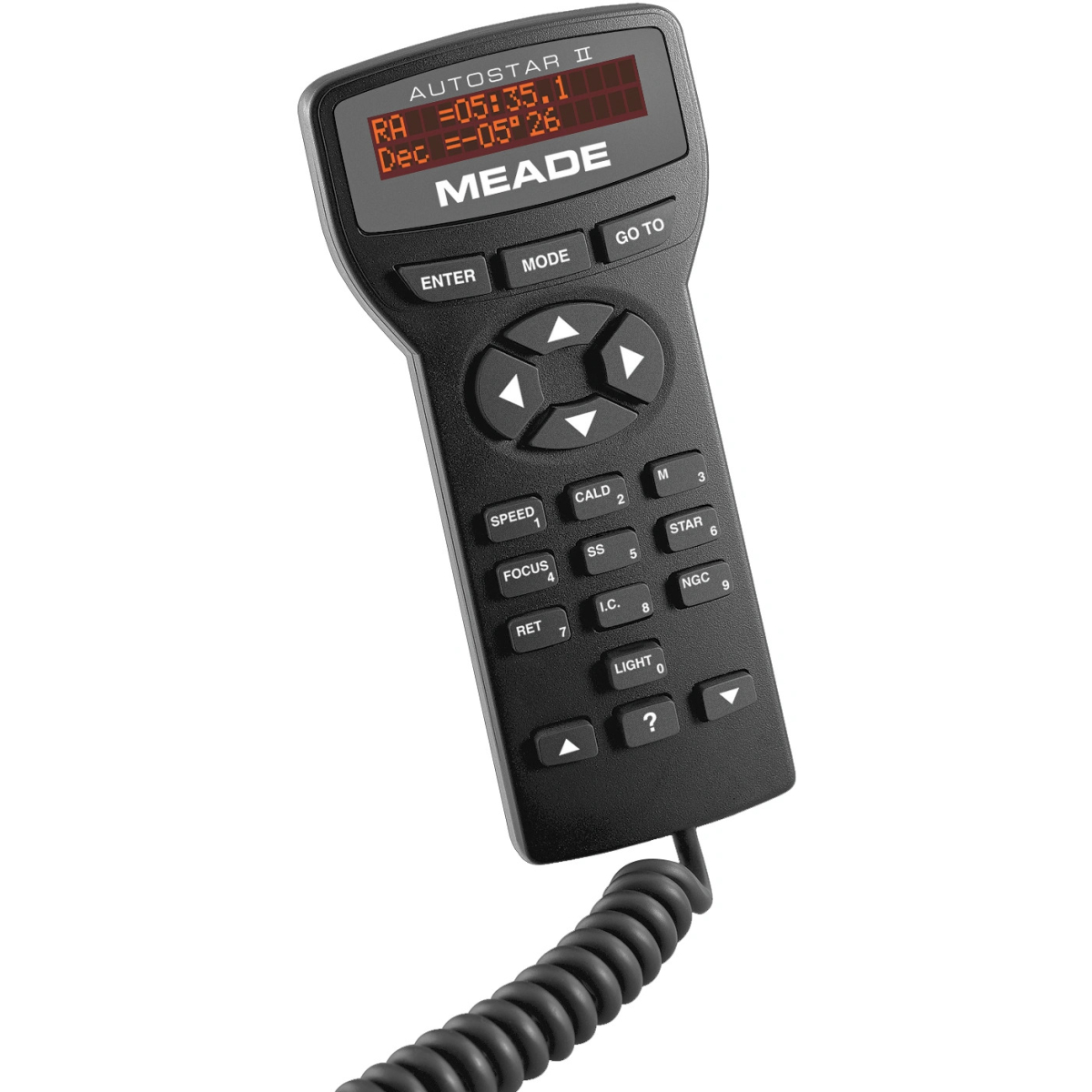

AutoStar II Controller: Includes a database of 145,000 celestial objects, guided tours, and High Precision GoTo Pointing capability.
Automatic Alignment: Utilizes a 16-channel GPS receiver for precise and quick star alignment.
Design and Usability:
User-Friendly Setup: Ergonomically designed handles facilitate easy assembly and disassembly, with slow-motion controls for manual adjustments if needed.
Portable Power Options: Operates on 8 C-cell batteries for up to 20 hours, with an optional AC adapter available.
Quality Construction:
North American Manufacturing: Designed and manufactured in North America with high-quality materials, ensuring durability and performance.
The Meade 14" f/10 LX200 ACF Telescope is a top choice for astronomers seeking a high-quality instrument for both visual observation and astrophotography. Its advanced optics, robust construction, and user-friendly features provide an exceptional stargazing experience, making it suitable for a wide range of astronomical pursuits. Whether observing from your backyard or a remote dark sky location, the LX200 delivers stunning views and impressive imaging capabilities.
