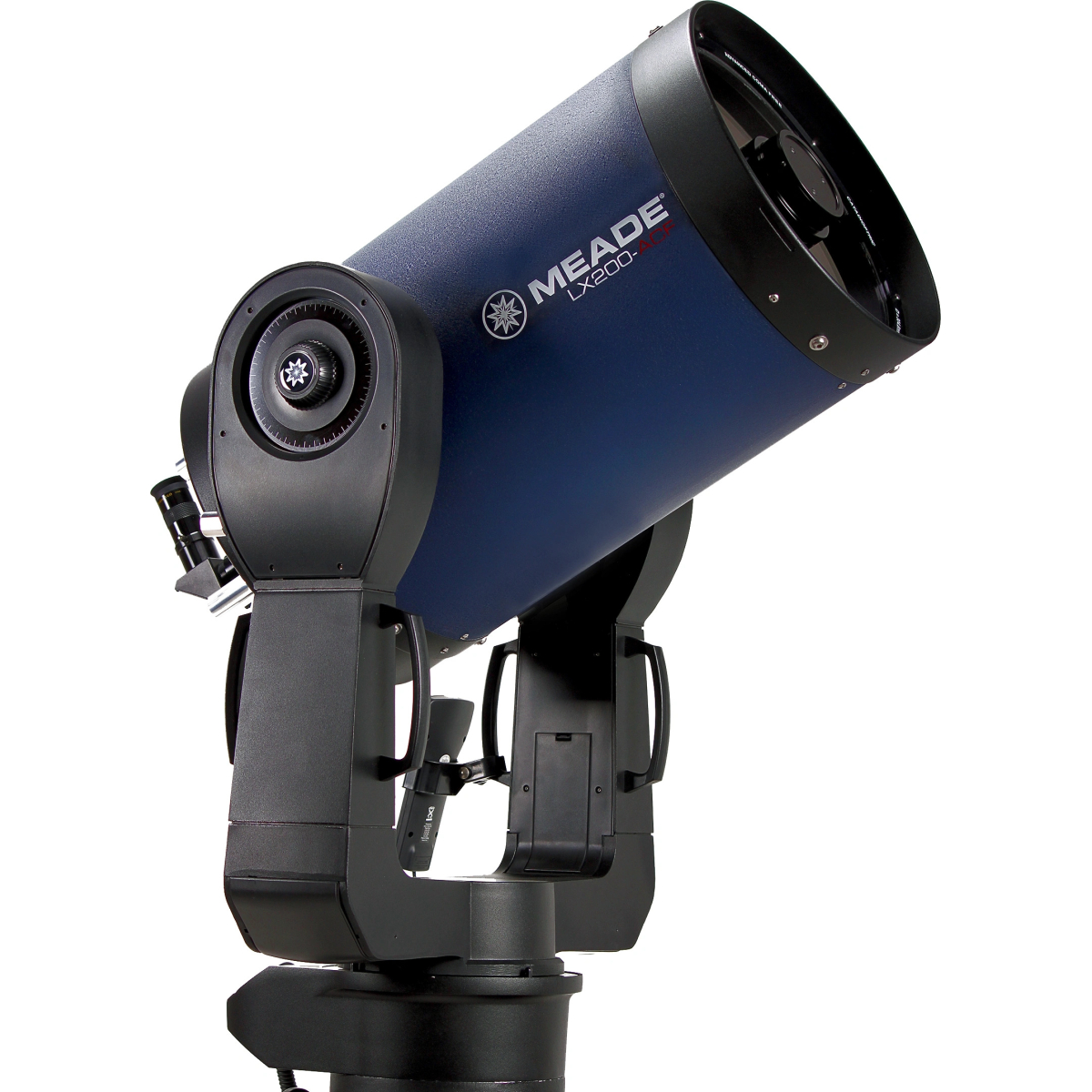

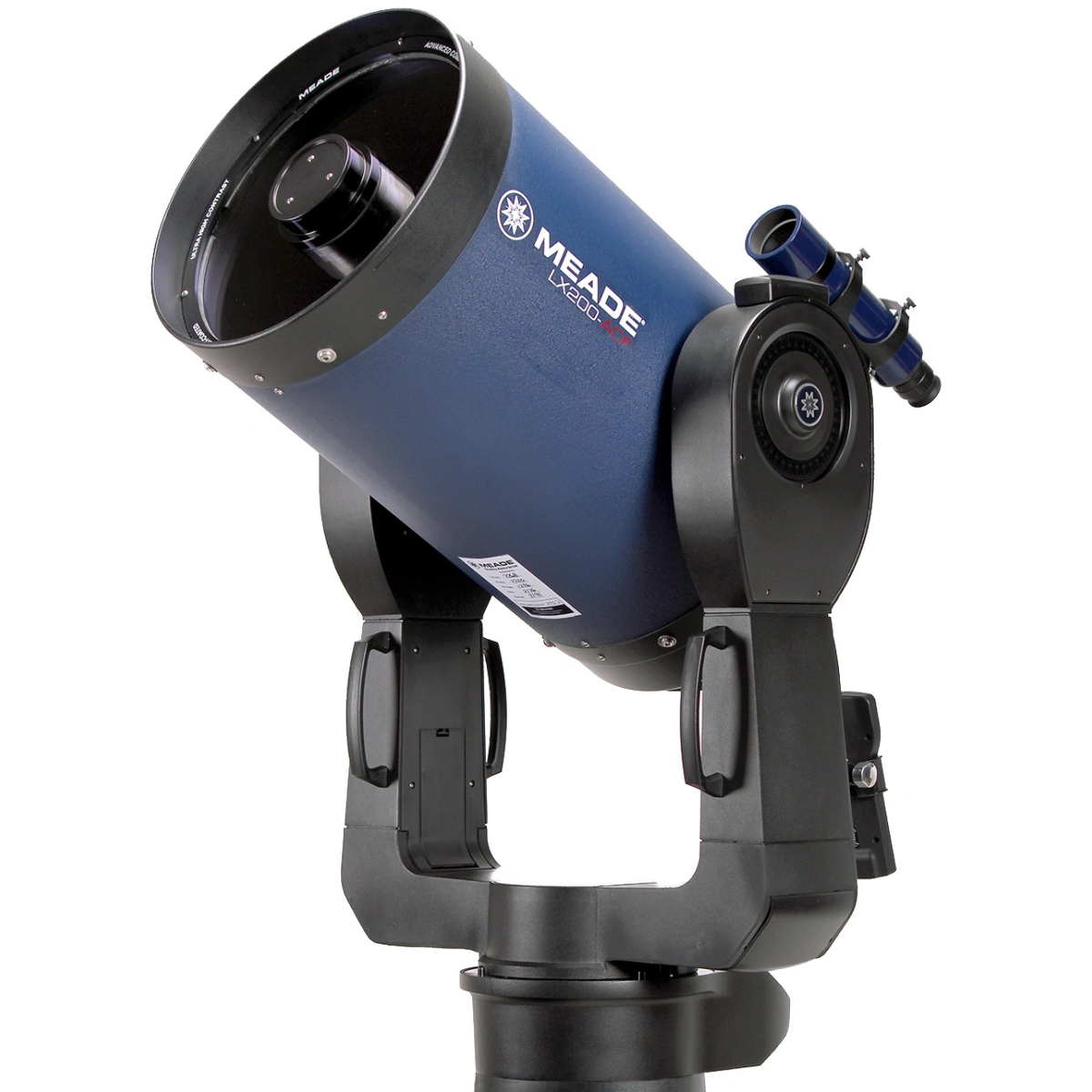

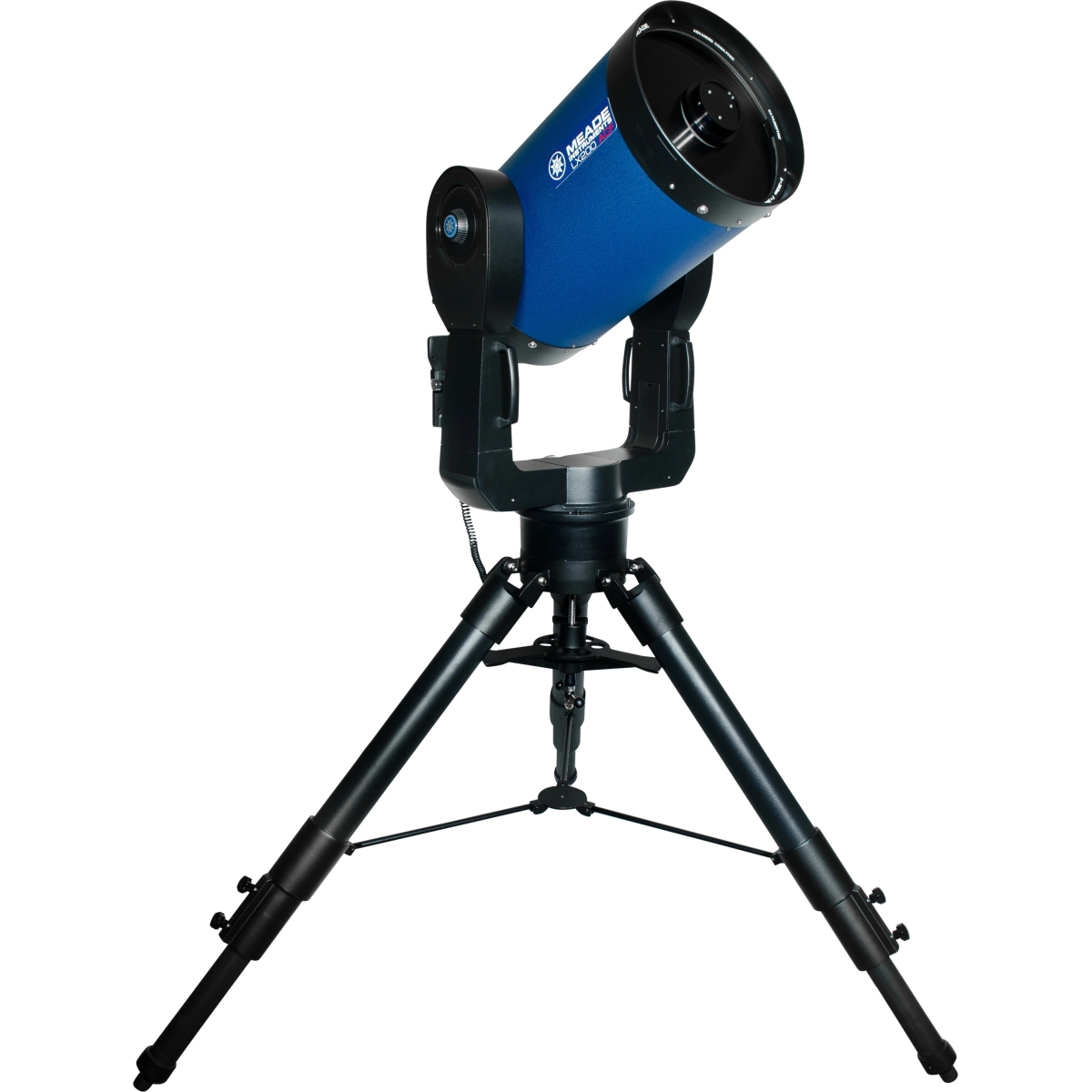

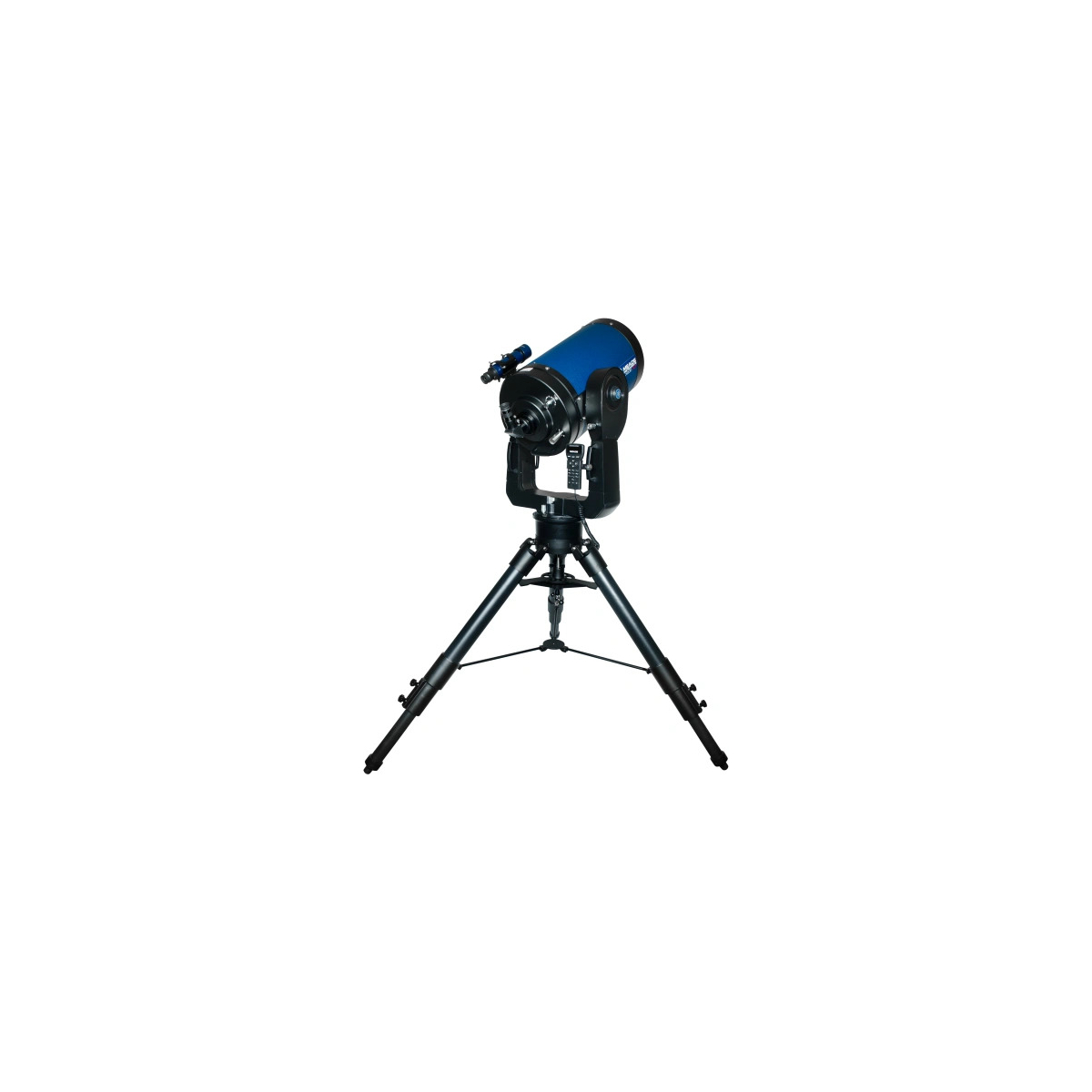

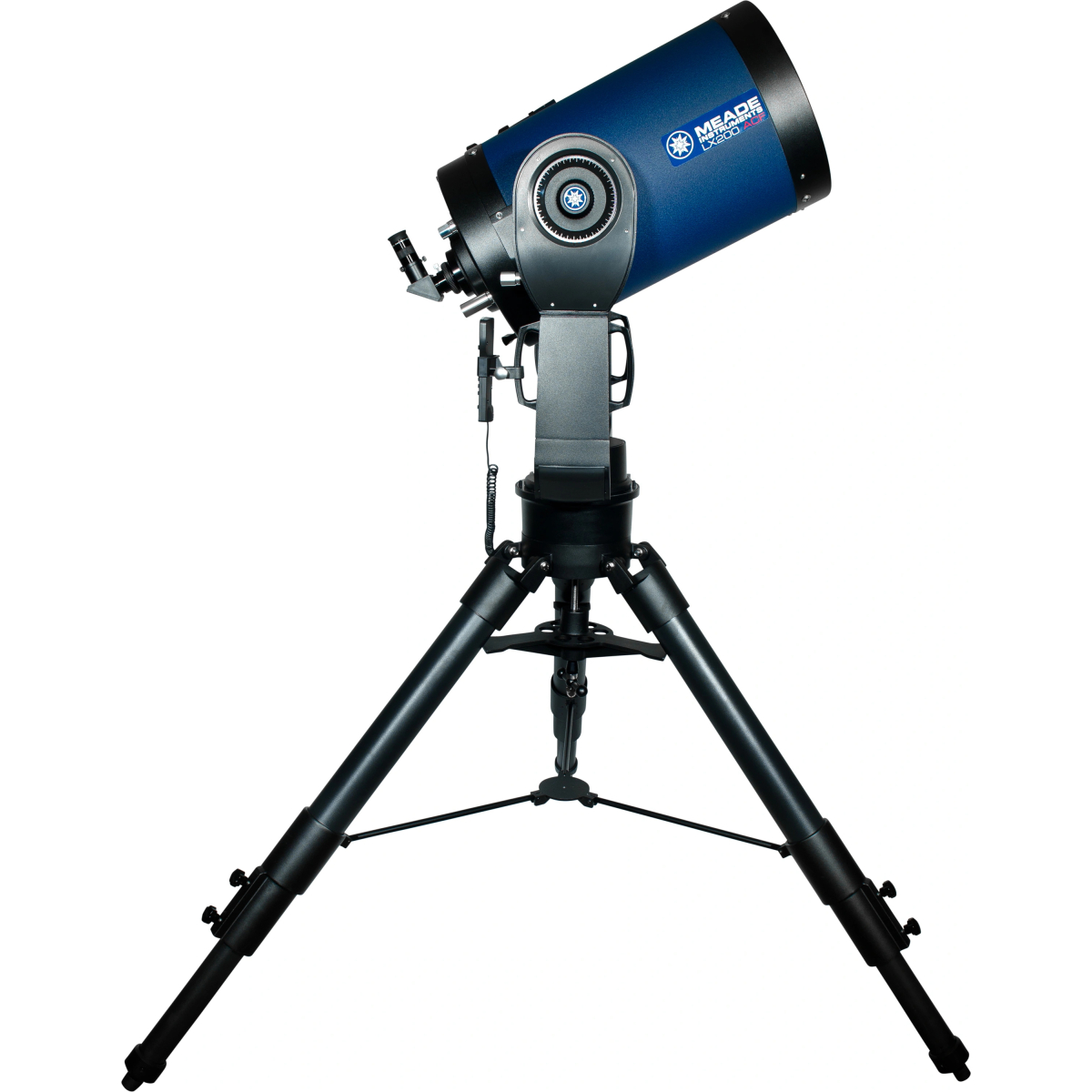

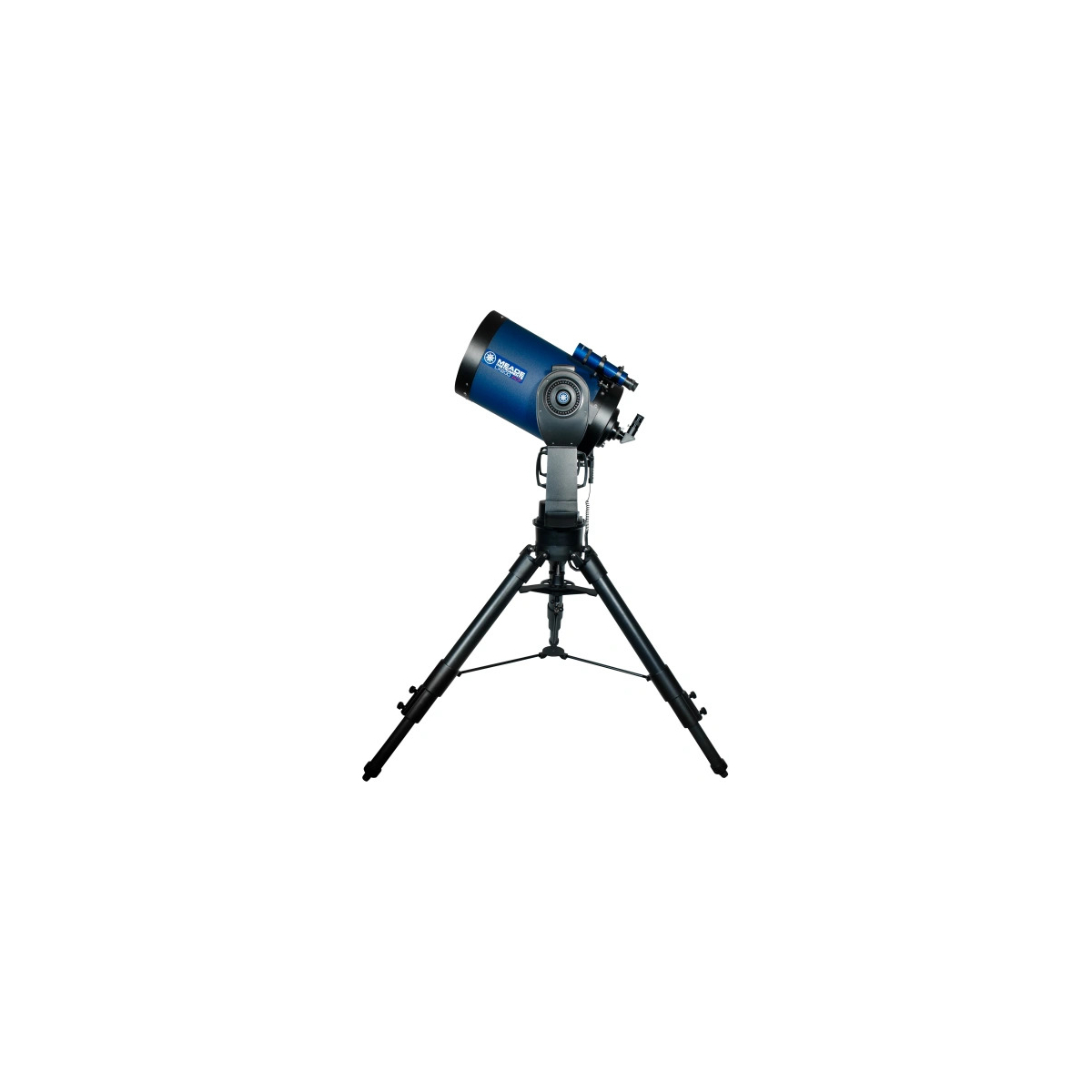

The Meade 12" f/10 LX200 ACF Telescope is a renowned model in Meade's LX series, known for its exceptional optical quality and versatility. It is compact for its aperture size, making it suitable for backyard setups, small to medium observatories, and travel to dark sky sites. This telescope is designed for both visual observation and astrophotography, offering advanced features for a rich stargazing experience.
Specifications:
Aperture: 12 inches
Focal Length: 3048mm
Focal Ratio: f/10
Optics: Advanced Coma-Free (ACF)
Coatings: Ultra-High Transmission Coatings (UHTC)
Mount Type: Dual-Fork Alt/Az with optional equatorial configuration
Weight: 157 lbs assembled
Included Accessories: Series 4000 26mm Super Plössl eyepiece (117x), 8x50 optical viewfinder, 1.25" diagonal mirror, Giant Field Tripod
Key Features:

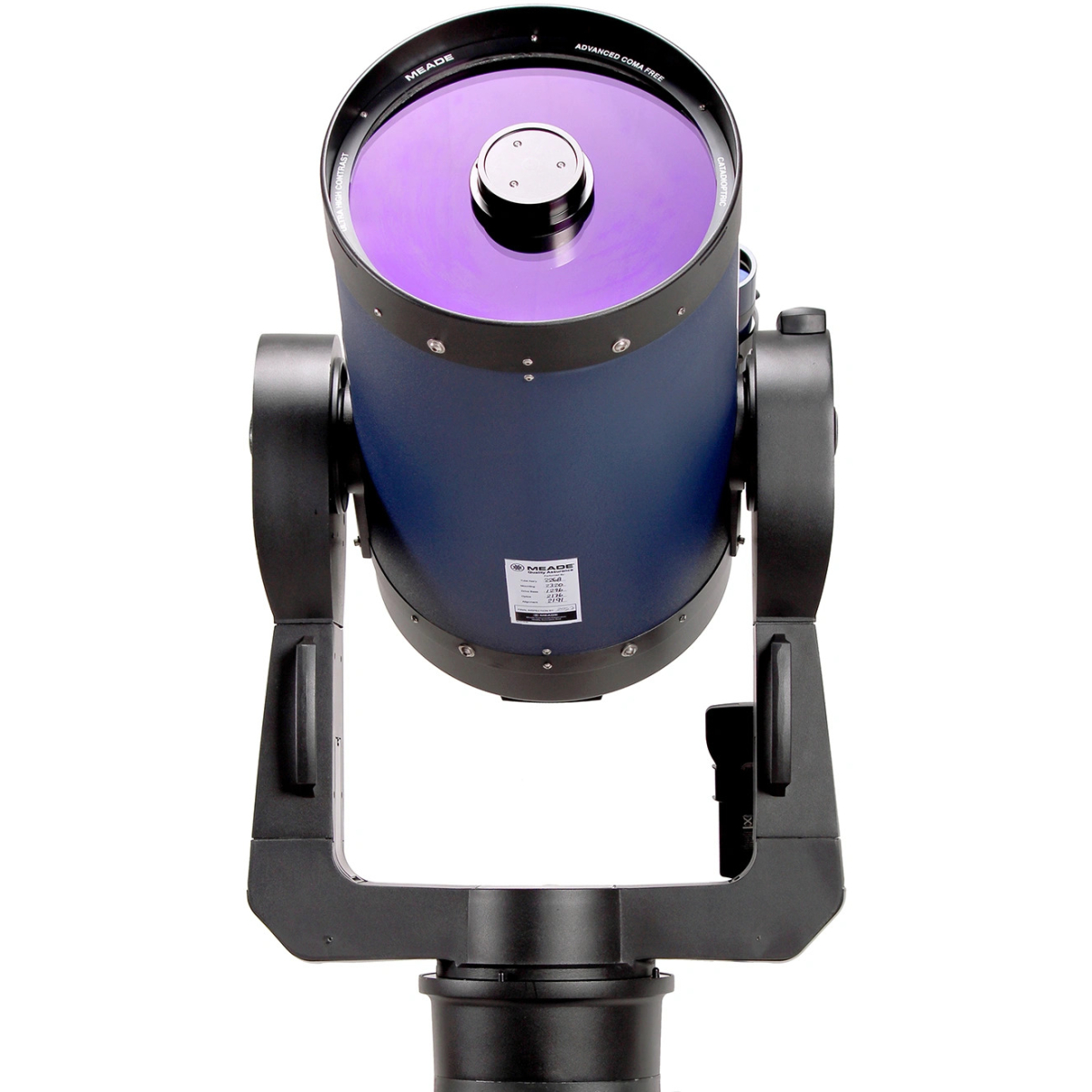

Advanced Optics: The ACF optics provide flat fields of view with no coma, reduced astigmatism, and elimination of diffraction spikes, making them ideal for both visual and astrophotographic purposes.

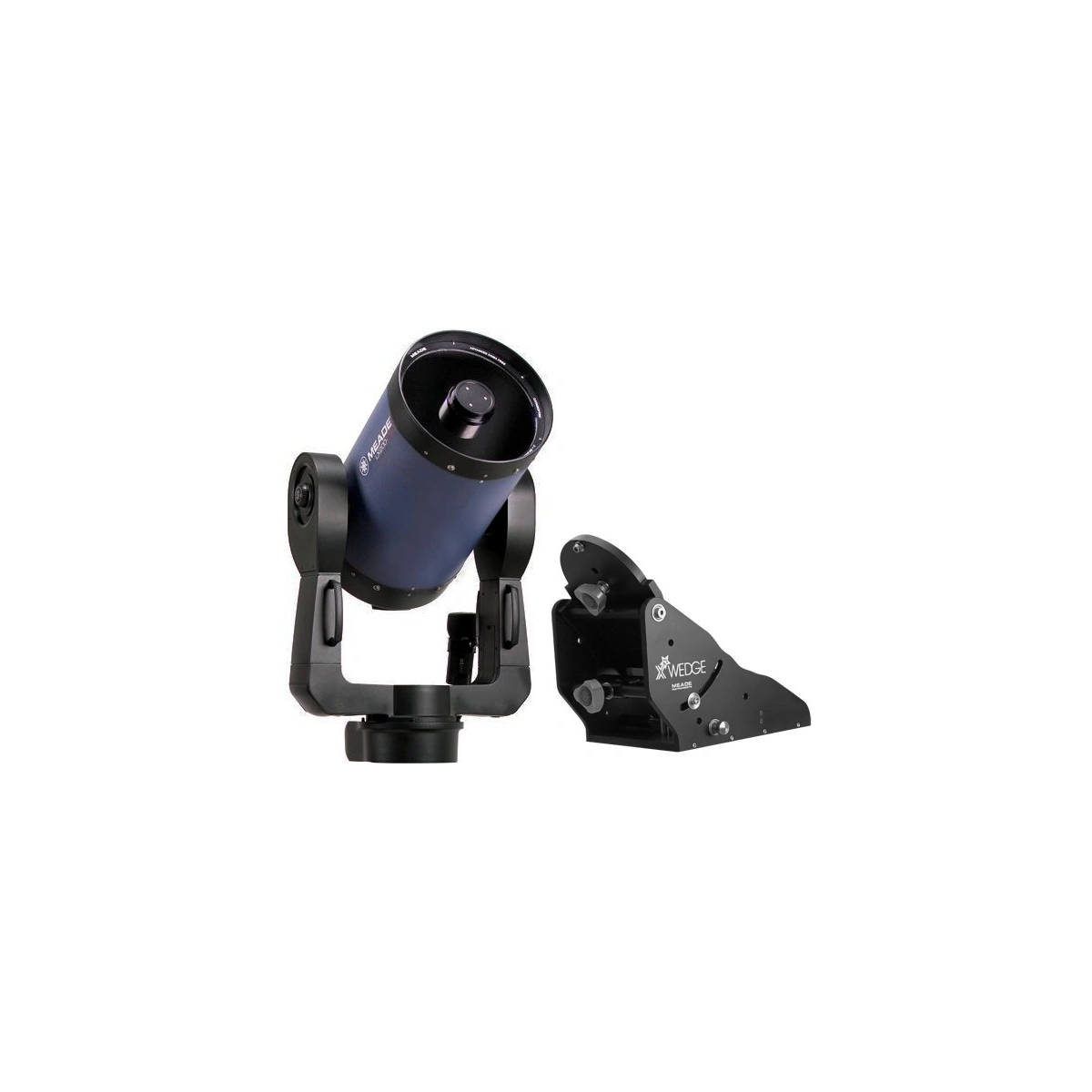

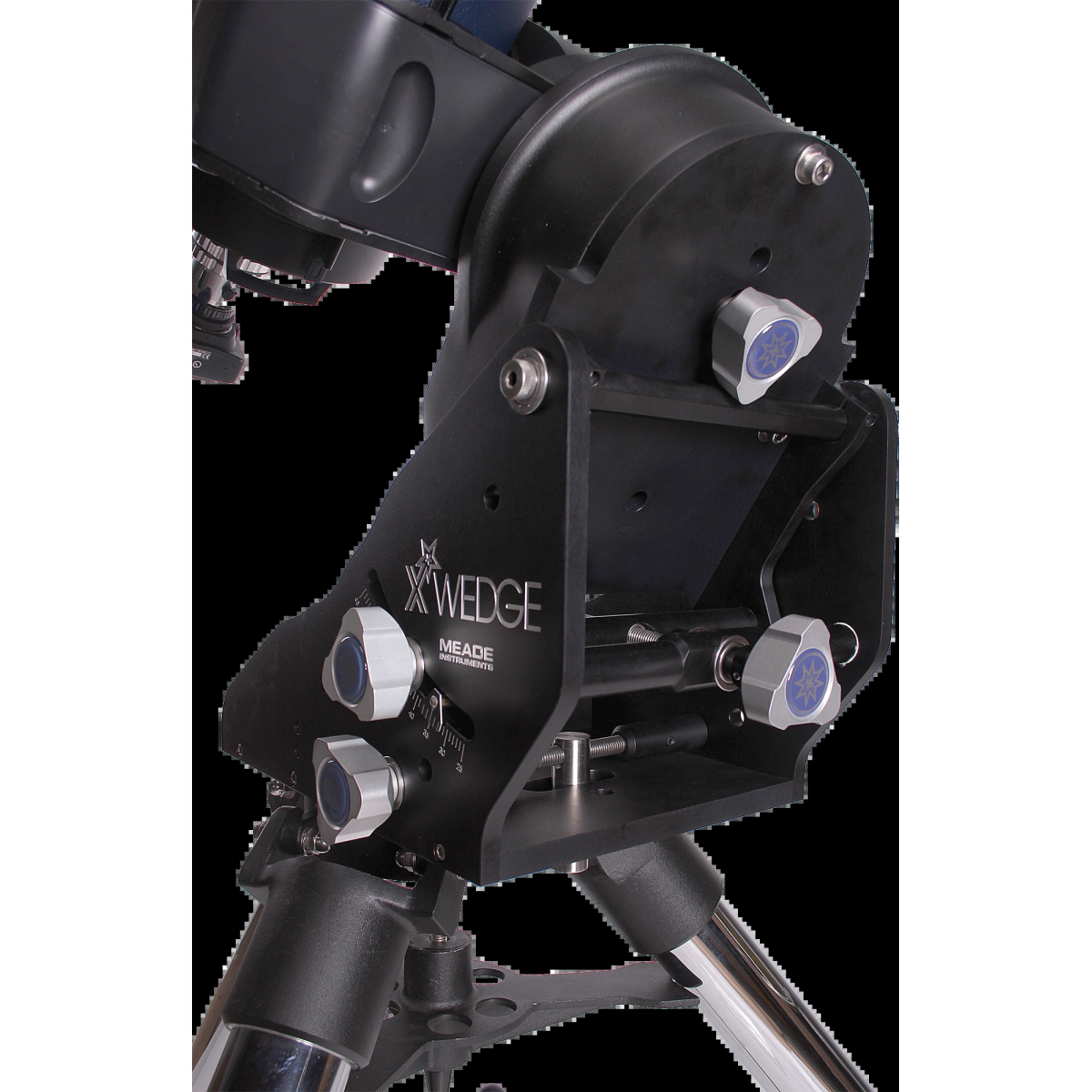

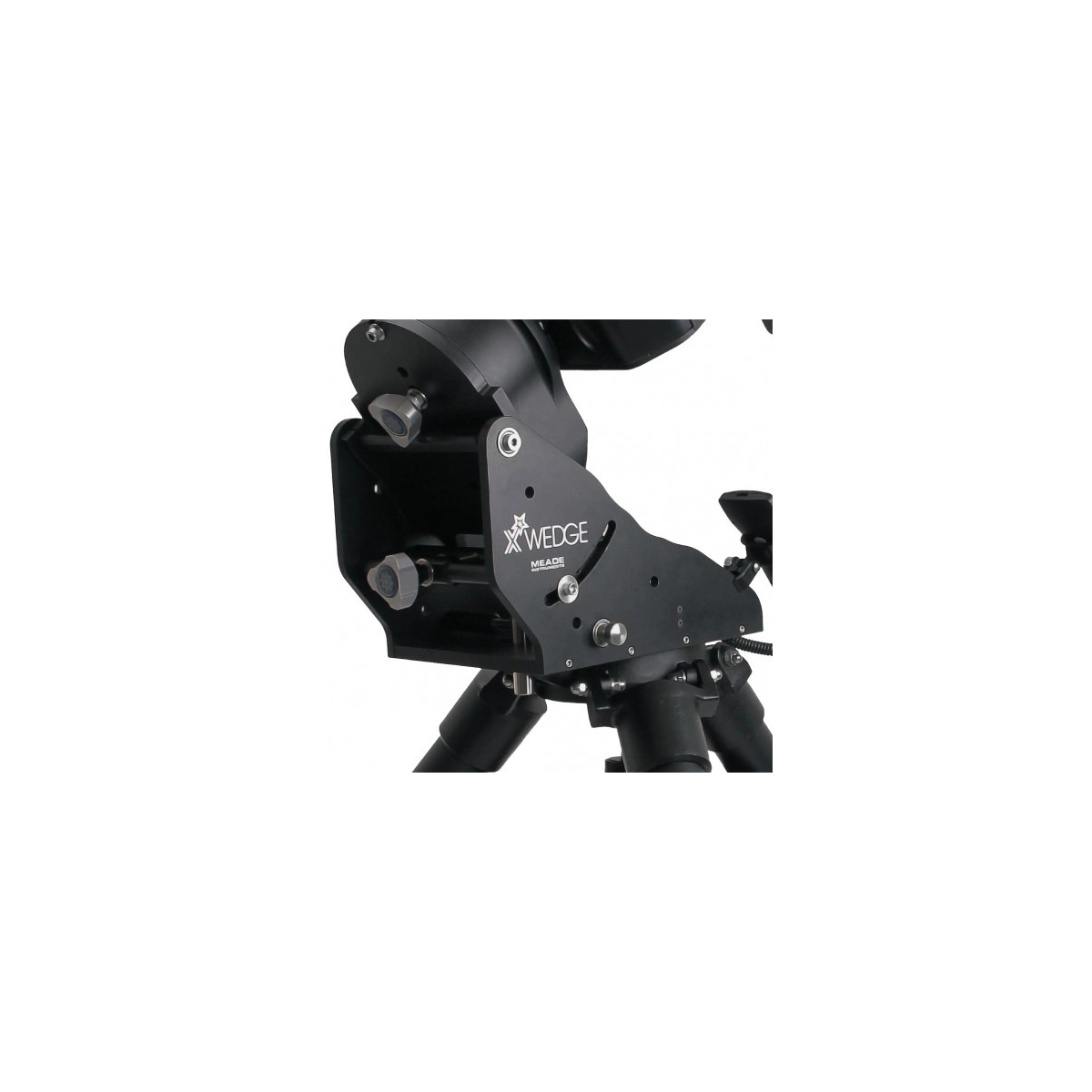

Equatorial Wedge: The included X-Wedge allows conversion from Alt-Az to equatorial configuration, facilitating long-exposure astrophotography by providing precise polar alignment and eliminating field rotation.

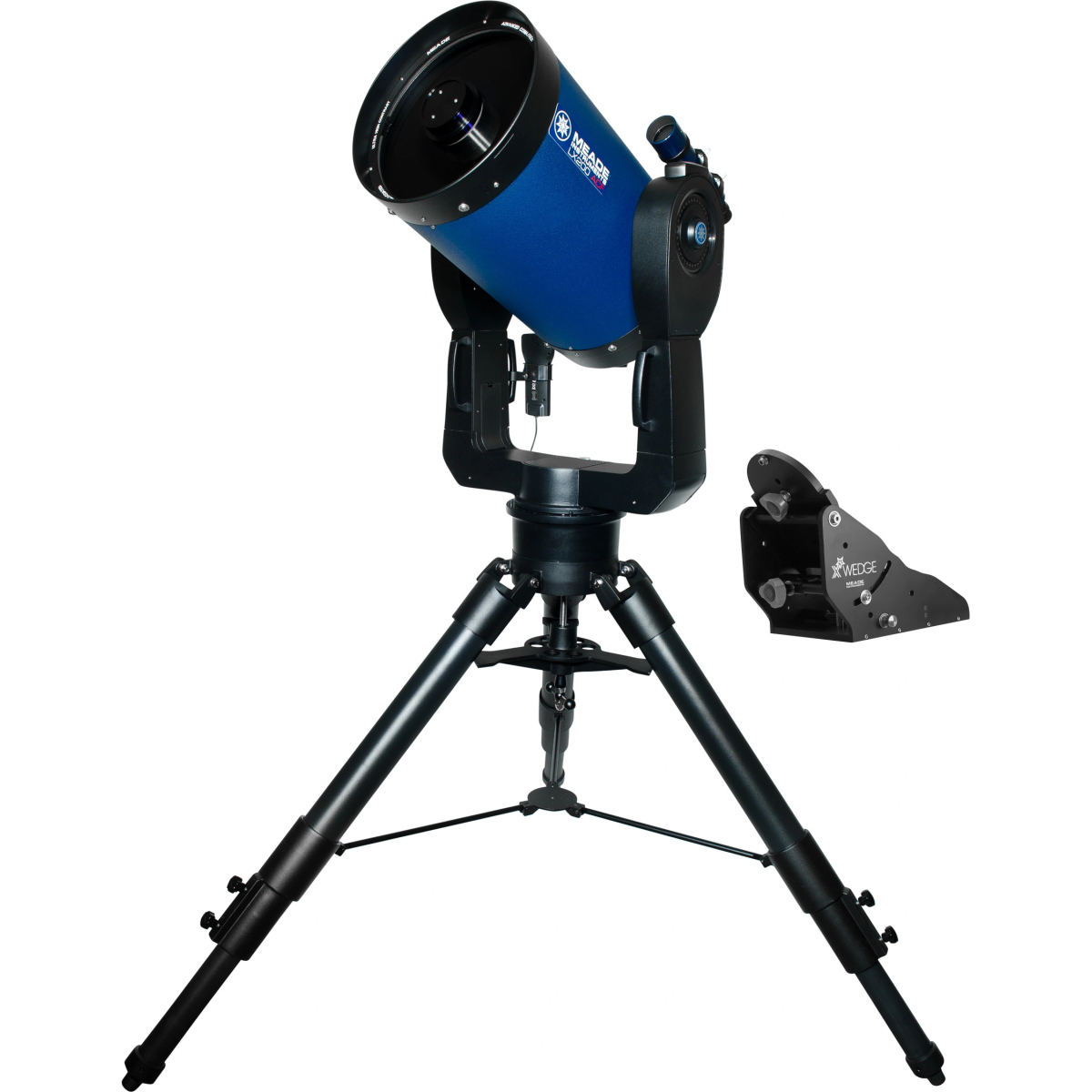

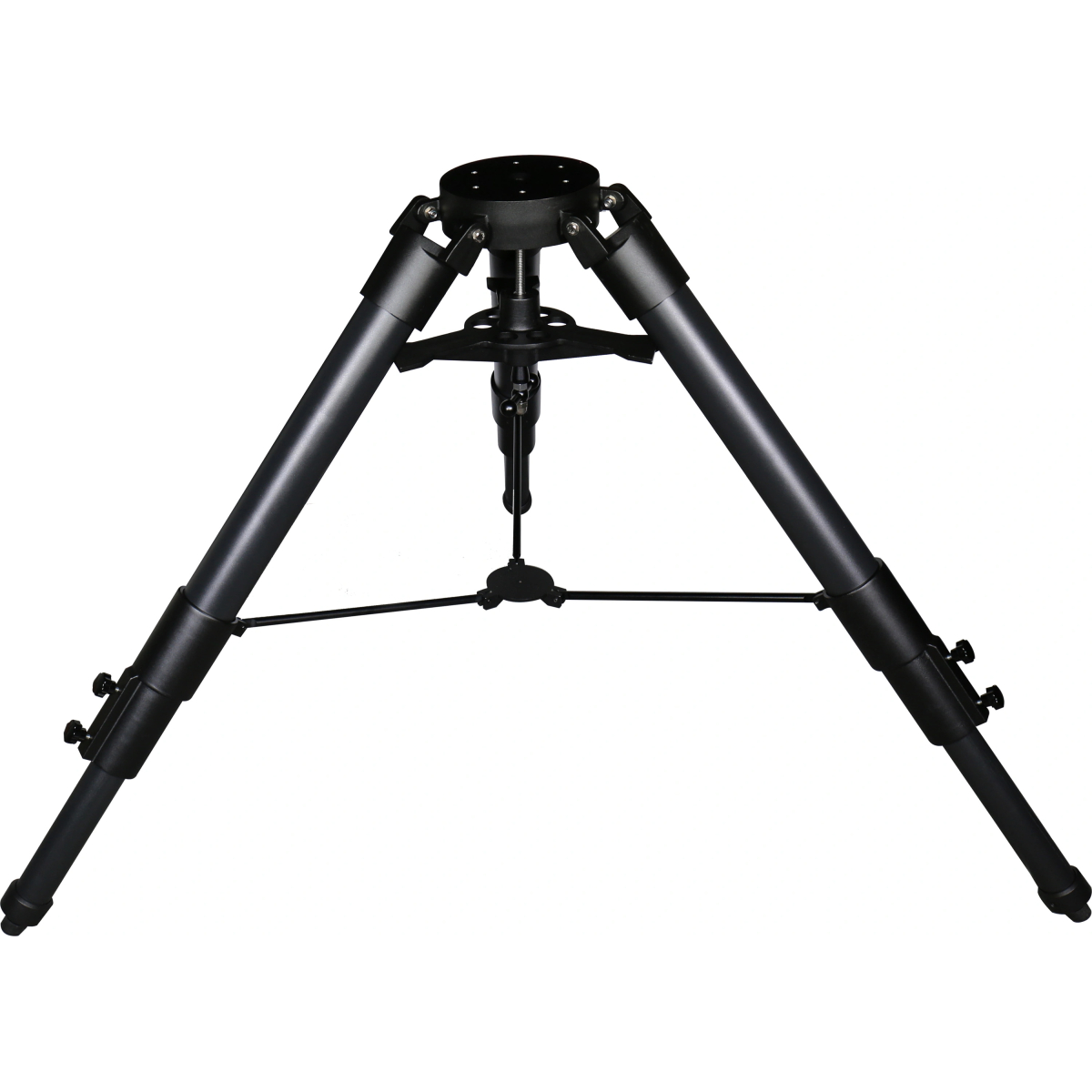

Stability and Tracking: The robust fork arms and Giant Field Tripod ensure stable mounting, crucial for high-power planetary observation and long-exposure imaging. The telescope tracks continuously across the meridian without interruption.
Astrophotography Advantages:
Long Native Focal Length: Excellent for capturing high-resolution images of planets and the Moon.
Optional Focal Reducer: Converts f/10 ACF to f/6.8, optimizing the telescope for deep space imaging by reducing exposure times and expanding the field of view by nearly 50%.
Mechanical and Electronic Features:
Focus Lock System: Prevents mirror movement during observations and imaging sessions, maintaining image stability.
Enhanced Motor Drive: Features faster slewing speeds of up to 8 degrees per second and Smart Drive technology for accurate tracking.

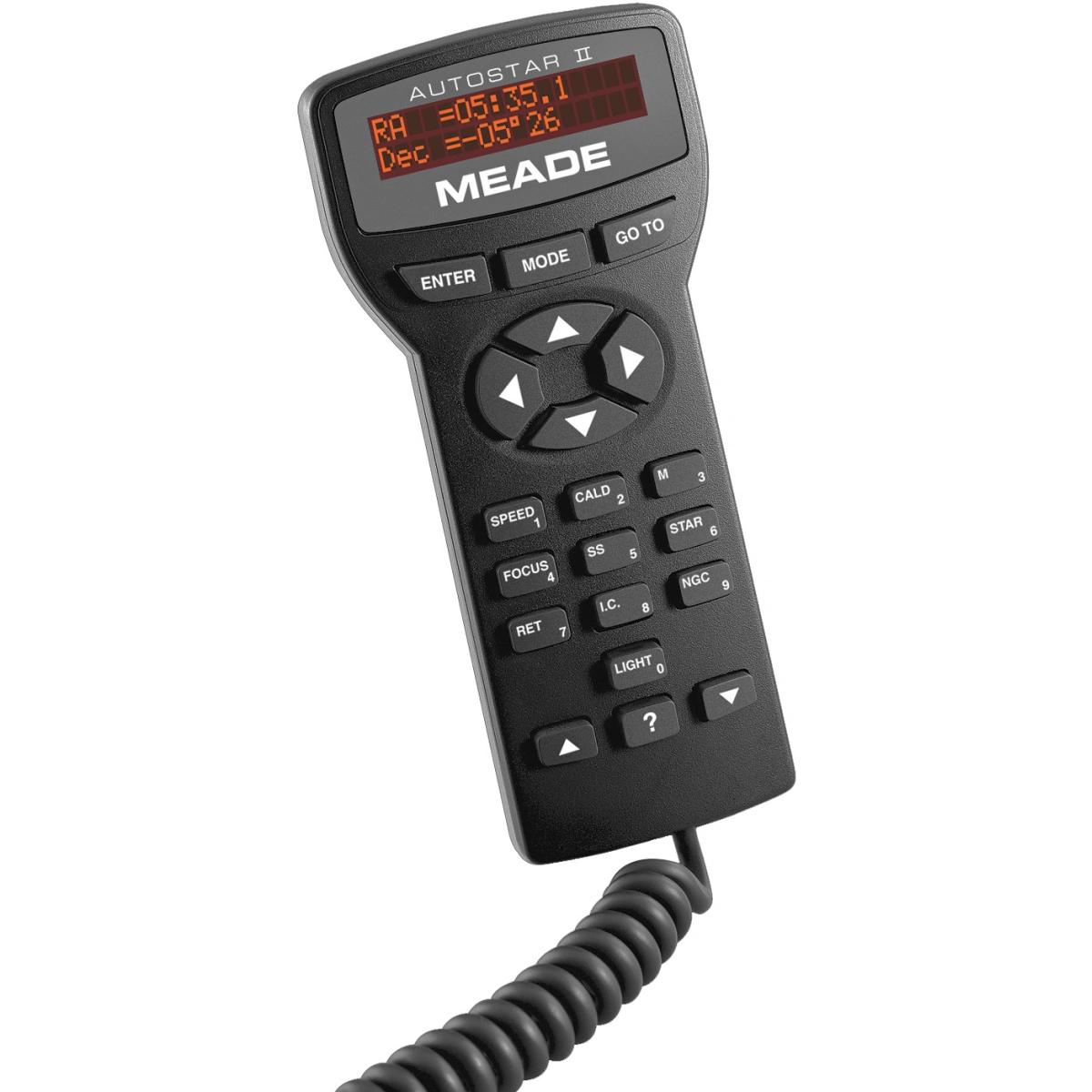

AutoStar II Controller: Includes a database of 145,000 celestial objects, guided tours, and High Precision GoTo Pointing capability.
Easy Alignment: Automatic alignment using a 16-channel GPS receiver, eliminating the need for manual adjustment.
Design and Usability:
User-Friendly Setup: Ergonomically designed handles facilitate easy assembly and disassembly.
Portable Power Options: Operates on 8 C-cell batteries for up to 20 hours, with an optional AC adapter available.
Quality Construction:
North American Manufacturing: Designed and manufactured in North America with high-quality materials, ensuring durability and performance.
The Meade 12" f/10 LX200 ACF Telescope is a top choice for astronomers seeking a high-quality instrument for both visual observation and astrophotography. Its advanced optics, robust construction, and user-friendly features provide an exceptional stargazing experience, making it suitable for a wide range of astronomical pursuits. Whether observing from your backyard or a remote dark sky location, the LX200 delivers stunning views and impressive imaging capabilities.
